Left Vertebral Artery Origin from the Thyrocervical Trunk: A Unique Vascular Variant

W.M. Strub; J.L. Leach; T.A. Tomsick

Abstract

SUMMARY: The vertebral artery normally arises from the subclavian artery, and variations in its origin have been described. We describe a unique case of the left vertebral artery arising from the thyrocervical trunk.

Anomalies of the extracranial branches of the vertebral artery are rare.1 Patients with cervical vertebral anomalies may present with symptoms of vertebral basilar insufficiency2 or may be asymptomatic. This report describes a case of anomalous origin of the left vertebral artery from the thyrocervical trunk discovered on CT angiography in a patient with a family member with known aberrant vertebral artery origins. To the best of our knowledge, this vascular variant has not been previously described in the English-language literature.

Case Report

The patient is a 36-year-old woman with a history of prior posterior fossa decompression for Chiari malformation who presented for preoperative evaluation of her cerebral vasculature for an upcoming neurosurgical procedure. The patient’s father was known to have bilateral persistent proatlantal intersegmental arteries with absence of the vertebral arteries. These angiographic findings have been reported elsewhere.3

Imaging was performed on a 64-section SOMATOM Sensation scanner (Siemens, Malvern, Pa). Omnipaque 370 (GE Healthcare, Piscataway, NJ) contrast was injected through a 20-gauge intravenous needle in the patient’s right antecubital fossa at a rate of 4 mL/s for a total of 80 mL. By use of bolus-tracking software, scanning was performed 5 seconds after contrast was identified in the internal carotid arteries in the neck. Helical acquisition was performed by using the 64 × 0.6 mm scanner configuration, and images were reconstructed at 1.0 mm with an overlap of 0.6 mm. Multiplanar reformations, thin-section maximum intensity projections, and volume-rendered images were performed.

The left vertebral artery was identified arising from the thyrocervical trunk (Fig 1) and was seen at the C1–C2 level extending along the lateral aspect of C1 in a normal location and entering the dura in the foramen magnum. There was no evidence of collateral vessel formation to suggest occlusion of the vertebral artery and subsequent filling by peripheral vessels. A continuation of the left vertebral artery from the posterior inferior cerebellar artery to the basilar artery was not visualized. The vertebral foramen on the left were hypoplastic compared with those on the right (Fig 2). The right vertebral artery originated from the subclavian artery in the normal fashion.

Fig 1.

A, Oblique, volume-rendered CT angiogram projection. Note the left vertebral artery arising directly from the thyrocervical trunk and extending cephalad outside of the transverse foramina of the vertebral bodies (arrows). The suprascapular artery is noted arising directly from this vessel in the lower neck (arrowhead).

B, Posterior, volume-rendered CT angiogram projection. There has been a decompressive occipital craniectomy, and resection of the posterior arch of C1. The left vertebral artery is well seen continuing intracranially (arrows).

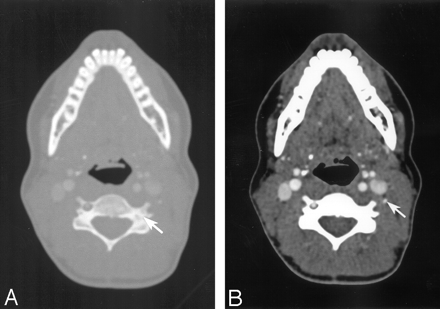

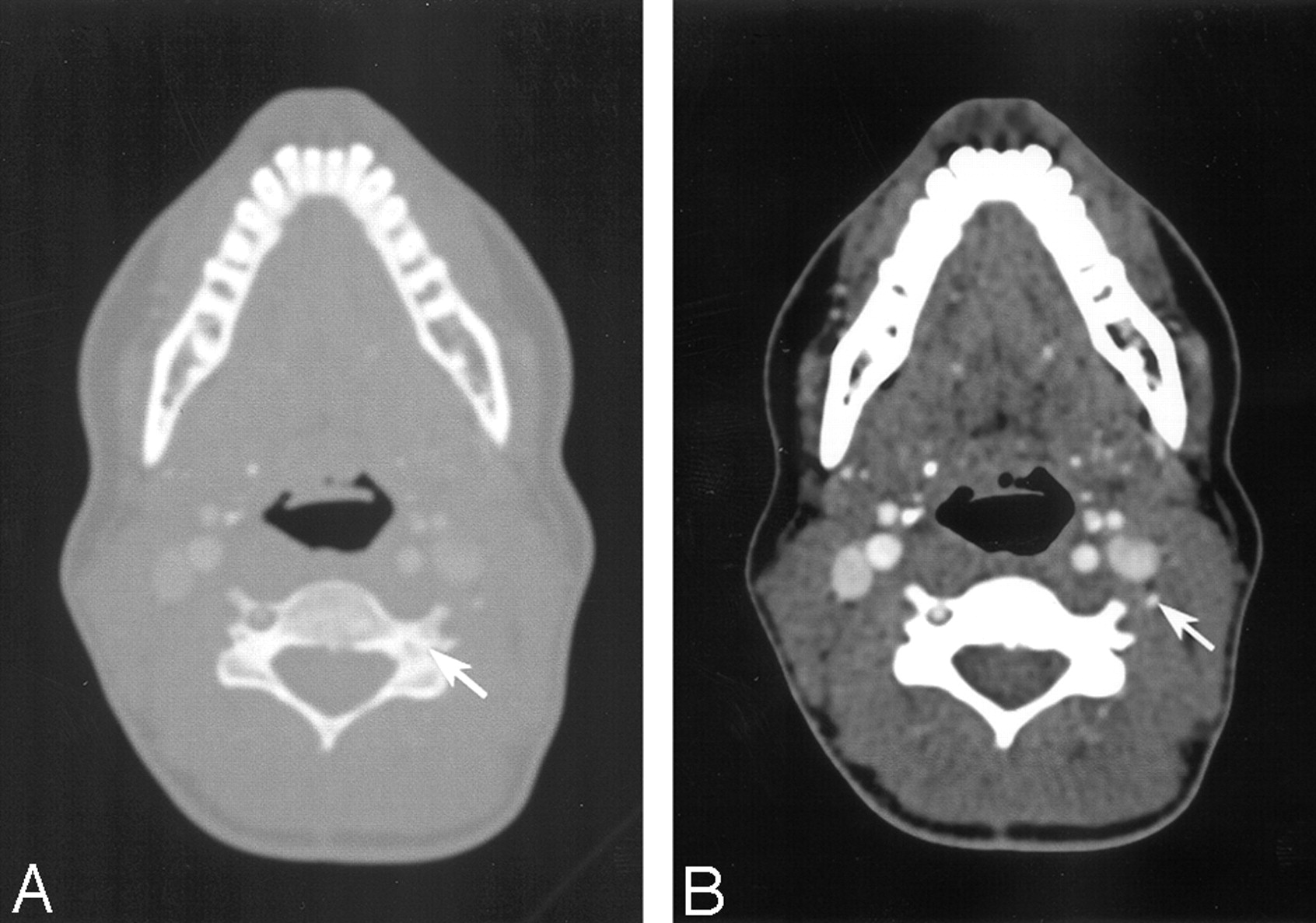

Fig 2.

A, Axial image of the cervical spine at C4 in bone algorithm. Note the absence of the foramen transversarium on the left (arrow).

B, Axial image of the cervical spine at C4 in soft tissue algorithm showing the course of the left vertebral artery (arrow).

Discussion

During embryologic development, 8 cervical segmental arteries develop and originate from the aorta. The first of these cervical segmental arteries is also known as the proatlantal intersegmental artery.4–6 A persistent proatlantal artery can be seen with aplasia of the ipsilateral and hypoplasia or aplasia of the contralateral vertebral artery.6 Taking this further, a persistent proatlantal artery that connects the internal carotid to the vertebral artery can be considered as an anomalous origin of the vertebral artery.6 Our patient’s father, who had type II proatlantal intersegmental arteries, also had bilateral absence of the vertebral arteries.

During development, longitudinal anastomoses are formed between the 8 cervical segmental arteries, though the first 6 ventral segments between the aorta and the longitudinal anastomoses will disappear when the embryo is 14–17 mm in length. The proximal vertebral artery is formed from the ventral portion of the seventh segmental artery.7,8 The longitudinal anastomoses between the first 7 cervical segments will comprise the distal vertebral artery.7 An atypical origin of the vertebral artery can be accounted for by incomplete involution of one of the first 6 segmental arteries.2,7,9

The distal cervical part will typically maintain its relation to the skeleton and run within the foramen of the cervical vertebrae whereas the proximal segment will run outside of the canal.10 The transverse foramina form around the developing vertebral arteries, and the foramina may be absent or present in duplicate or triplicate form.11 It has recently been shown that the size of the transverse foramen and the accompanying vertebral artery show only a weak relationship.11 One or both of the vertebral arteries may ultimately terminate in a posterior inferior cerebellar artery.11

Anomalous origins of the vertebral artery have been described elsewhere. Variations in the origin of the left vertebral artery usually occur on the left,12–14 and an anomalous origin of the left vertebral artery may be present in about 5% of individuals.9 In fact, the second-most-common anomaly in the embryologic development of vessels arising from the aorta is the left vertebral artery arising from the aortic arch between the left common carotid and the left subclavian arteries.15 Other anomalous origins include the vertebral artery arising from the common carotid artery,8 bifid origin of the left vertebral artery from the aortic arch,15 bifid origin of the right vertebral artery,16 bilateral arch origin of the vertebral arteries,17 and anomalous origin of the right vertebral artery from the aortic arch proximal to the left subclavian artery.18 Origins of the right vertebral artery from the thyrocervical trunk have also been described.19

The uses of 3D CT angiography for imaging vertebral artery aneurysms has been described elsewhere.20 Advantages of 3D CT angiography compared with conventional angiography include ability for unrestricted reconstruction of the image, more rapid imaging acquisition, and lack of potential angiographic complications.5 In addition, with respect to the vertebral artery, CT angiography is not dependent on flow physiology and can be performed in a more expedited manner than sonography or MR imaging.20

Conclusion

It is important for the neurovascular interventionalist and the neurosurgeon to be aware of this variant. Vertebral artery injury is a known complication of extended lateral decompression during anterior cervical spine surgery that can result in exsanguinations and permanent neurologic deficits.21 During surgery at the cranial vertebral junction, injury of the vertebral artery can cause brain stem ischemia and cerebellar infarction.5 Anomalous vertebral artery origins present a pitfall at diagnostic cerebral angiography because they may be assumed to be occluded or diseased if they cannot be catheterized.17 To prevent complications, it is essential to assess the vasculature in this region before conducting medical procedures.22 Furthermore, this observation and the finding of vertebral anomalies in the patient’s father lead us to hypothesize that vascular variations may be hereditary.
