Voxelwise Analysis of Diffusion Tensor Imaging and Structural MR Imaging in Patients with the m.3243A&gt;G Mutation in Mitochondrial DNA

S.M. Virtanen; M.M. Lindroos; K. Majamaa; P. Nuutila; R.J. Borra; R. Parkkola

doi:10.3174/ajnr.A2309

Abstract

BACKGROUND AND PURPOSE: The m.3243A>G mutation is the most common pathogenic mutation in mtDNA; tissues with high dependence on aerobic energy metabolism, such as the brain, heart, and skeletal muscle, are most affected by the ensuing mitochondrial dysfunction. We hypothesized that the m.3243A>G mutation manifests as disturbances in white matter microstructural integrity and volumetric changes in the brain.

MATERIALS AND METHODS: DTI and structural MR imaging were performed on 15 adult patients with the m.3243A>G mutation and 14 healthy age-matched controls. Voxelwise analysis of the DTI data was performed to reveal possible differences in FA and MD values. Additionally, normalized brain tissue volumes of the subjects were measured, and voxelwise analysis of gray matter was performed to assess volumetric changes in the brain.

RESULTS: Among patients with m.3243A>G mutation, voxelwise analysis of the DTI data revealed significantly reduced FA in several areas located mainly in the occipital lobes, thalami, external and internal capsules, brain stem, cerebellar peduncles, and cerebellar white matter. There were no differences in MD values between the patients and the controls. Analysis of the structural MR imaging data revealed reduced total volume of gray and white matter in patients with m.3243A>G mutation, and VBM analysis identified areas of significant gray matter loss mainly in the occipital lobes and cerebellum.

CONCLUSIONS: Our findings show that patients with m.3243A>G mutation have mild microstructural damage leading to loss of directional organization of white matter and reduced brain volumes.

Abbreviations

BET: Brain Extraction Tool
DTI: diffusion tensor imaging
FA: fractional anisotropy
FDT: FMRIB Diffusion Toolbox
FSL: FMRIB Software Library
fMRI: functional MR imaging
FMRIB: Functional MR Imaging of the Brain
FNIRT: FMRIB Nonlinear Image Registration Tool
mtDNA: mitochondrial DNA
MD: mean diffusivity
MELAS: mitochondrial encephalomyopathy, lactic acidosis, and strokelike episodes
MNI152: Montreal Neurologic Institute 152
SENSE: sensitivity encoding
SIENAX: structural image evaluation, with normalization of atrophy
TBSS: tract-based spatial statistics
VBM: voxel-based morphometry

Mitochondrial disorders frequently affect the central nervous system because of its strong dependence on oxidative metabolism.¹ The most common pathogenic mutation in mtDNA is m.3243A>G, with estimates of prevalence ranging from 18/100,000 to 0.24%.^2–6 It is also the most common mutation causing the MELAS syndrome.⁷ The main clinical characteristics of the classic MELAS syndrome are myopathy, strokelike episodes, lactic acidosis, and encephalopathy leading to seizures. The most commonly described neuropathologic features of the MELAS syndrome are multifocal necrotic foci in the cerebral cortex and predominantly subcortical white matter gliosis.^8,9 However, the classic MELAS syndrome is relatively rare, and most patients with m.3243A>G mutation present with other symptoms of mitochondrial disease, such as sensorineural hearing impairment, diabetes mellitus, myopathy, or cognitive impairment.¹⁰ The large variation in the clinical phenotypes is at least partly due to heteroplasmy of the mutation (ie, the co-occurrence of the 2 alleles within mitochondria, cells, and tissues). Thus, the proportion of the mutated mtDNA varies across patients and tissues¹¹ and contributes to the phenotype.

DTI is a relatively new MR imaging technique, which can be used to study white matter integrity. With DTI, quantitative measurements, such as FA and MD of white matter tracts, can be acquired. DTI has been shown to detect brain white matter tract damage that cannot be visualized by conventional MR imaging techniques.

DTI findings have been reported in a few patients with mitochondrial disease^12–14 but not in a group of patients with m.3243A>G. Therefore, we aimed to investigate whether disturbances in brain microstructural integrity can be demonstrated in patients with the m.3243A>G mutation. Here we performed a voxelwise comparison of the FA and MD values between 15 patients with m.3243A>G and 14 age-matched controls. We also analyzed the differences in brain volumes between these 2 groups.

Materials and Methods

Subjects

Study participants comprised 15 patients (mean age, 47 years; range, 31–64 years; 4 men, 11 women) with the m.3243A>G mutation and 14 healthy age-matched controls (mean age, 47 years; range, 31–64 years; 2 men, 12 women). Written informed consent was obtained from the study participants. The study protocol was approved by the Ethics Committee of the Hospital District of Southwest Finland. Control subjects were recruited with a newspaper advertisement.

A neurologic examination and an assessment of medical history revealed that the most common clinical manifestation among the patients was diabetes (n = 9). Six patients had chronic neurologic or neuropsychological symptoms, while 9 patients were considered neurologically asymptomatic. Only 1 patient with m.3243A>G fulfilled the diagnostic criteria of the MELAS syndrome.¹⁵ Controls were free from neurologic ailment. None of the patients or controls had any acute neurologic symptoms during the examinations or MR imaging data acquisition. The m.3243A>G mutation heteroplasmy was determined from the buccal epithelium.⁶ The proportion of mutated mtDNA in patients with m.3243A>G varied between 18% and 91%.

MR Imaging Data Acquisition

DTI and conventional MR imaging were performed by using a Gyroscan Intera 1.5T CV Nova Dual scanner (Philips Healthcare, Best, the Netherlands) with a SENSE head coil.

Axial DTI images were acquired by using a single-shot echo-planar imaging sequence. The imaging parameters were as follows: TE, 89 ms; TR, shortest possible to accommodate the necessary number of sections for full brain coverage (5451–5616 ms); echo-planar imaging factor, 111; FOV, 240 mm; rectangular FOV, 100%; scan percentage, 100%; number of signal-intensity averages, 2; SENSE factor, 2. The b-values for diffusion weighting were 0, 600 and 1200 s/mm², with 16 gradient-encoding directions. Spectral presaturation with inversion recovery was used for fat suppression. Section thickness was 3 mm with an intersection gap of 1 mm. Data were obtained with a matrix size of 112 × 112 and reconstructed to a matrix size of 256 × 256. The imaging voxel size was 2.14 × 2.16 × 3.00 mm, and the reconstructed voxel size was 0.94 × 0.94 × 3.00 mm.

In addition to the DTI images, the imaging protocol included an axial thin-section 3D T1-weighted gradient-echo sequence (TR, 25 ms; TE, 5.5 ms; flip angle, 30°). The section thickness for the 3D T1 images was 1.60 mm, with −0.80 mm intersection gap (ie, overlapping sections).

Image and Data Analysis

Computer analysis of the image data was performed by using the FSL toolbox (FMRIB Software Library, Version 4.1; FMRIB, Oxford, United Kingdom). FSL is a comprehensive library of analysis tools for fMRI, MR imaging, and DTI brain imaging data,^16,17 mainly written by members of the Analysis Group, FMRIB. All the tools mentioned below (TBSS, FDT, BET, FNIRT, randomise, fslstats, SIENAX, and FSL-VBM) are part of FSL. Image processing was also performed by using MRIcron (http://www.cabiatl.com/mricro/mricron/index.html).

Analysis of the FA data was performed by using the TBSS tool.¹⁸ The raw diffusion data were first corrected for the effects of eddy currents. Then, the FA images were created by using FDT, and automatic brain extraction was performed by using the BET.¹⁹ Next, a nonlinear registration by using FNIRT^20–22 was run, aligning all subjects' FA images into a common space, and a mean FA image of all subjects was created. This mean FA image was then thinned to create a mean FA skeleton, representing the centers of all tracts common to all subjects. Aligned FA images of each subject were then projected onto this skeleton for voxelwise cross-subject statistics.

Analysis of the MD data was performed by applying a nonlinear registration to the data and projecting these data onto the original mean FA skeleton, by using the FA data to find the projection vectors; the resulting data were used for voxelwise analysis.

In addition, the mean skeleton FA and MD values of each subject were calculated, by using the fslstats program.

Brain-tissue volumes of the subjects, normalized for head size, were estimated by using the SIENAX tool.²³ The 3D T1-weighted images were used for this particular analysis. First, brain and skull images were extracted from the data.¹⁹ Then, the extracted brain images were registered to the MNI152 (Montreal Neurologic Institute, Montreal, Quebec, Canada) space.^24,25 Finally, a tissue-type segmentation procedure²⁶ was carried out, resulting in estimates of total brain tissue volume, gray matter volume, and white matter volume.

Regional differences in gray matter volume were analyzed by VBM, by using the FSL-VBM tool.^27,28 The 3D T1-weighted images were also used for this analysis. First, brain extraction was carried out,¹⁹ and the brain images were segmented into gray matter, white matter, and CSF.²⁶ The resulting gray matter images were then aligned to the MNI152 standard space,^24,25 and these images were then averaged to create a study-specific gray matter template. The native gray matter images were then nonlinearly re-registered to the template and modulated to correct for local expansion or contraction. The modulated images were then smoothed with an isotropic Gaussian kernel with a ς of 3 mm, and the resulting data were used for voxelwise analysis.

Statistical Analysis

Voxelwise analysis of the FA, MD, and structural imaging data was performed by means of permutation-based inference (5000 permutations) by using a threshold-free cluster enhancement method²⁹ and correction for multiple comparisons. The randomise tool (FMRIB) was used for the analysis.

Additional statistical analysis was performed by using Prism software, Version 5 (GraphPad Software, San Diego, California). The nonparametric Mann-Whitney U test was used to analyze the differences in brain tissue volumes, measured with SIENAX, between patients with m.3243A>G and the controls. The Mann-Whitney U test was also used for differences in mean skeleton FA and MD values, calculated with fslstats, between the 2 groups. A result with P < .05 was considered statistically significant. To assess the possible correlation between the FA values and the m.3243A>G heteroplasmy, we determined a Spearman correlation coefficient between these 2 parameters.

Results

Mean MD, FA, and TBSS Analysis

The mean skeleton MD values did not differ significantly between patients with m.3243A>G (mean, 0.639 × 10⁻³ mm²/s; SD, 0.069) and the controls (mean, 0.615 × 10⁻³ mm²/s; SD, 0.021) (P = .95). The mean skeleton FA values were slightly but not significantly lower among patients with m.3243A>G (mean, 0.487 ± 0.014) than among the controls (mean, 0.513 ± 0.042) (P = .13). There was no correlation between the proportion of the m.3243A>G mutations and the mean skeleton FA values of the patients (Spearman correlation coefficient r = −0.235; P = .42).

Most interesting, voxelwise TBSS analysis revealed regions of decreased FA values in patients with m.3243A>G compared with those in the controls (P < .05, fully corrected for multiple comparisons). Areas of reduced FA were seen bilaterally in occipital parts of the inferior longitudinal fasciculi, thalami, external capsules; the posterior limbs of internal capsules, mesencephalon, pons, superior, middle and inferior cerebellar peduncles; cerebellar white matter, and medulla oblongata (Fig 1). In addition, areas of decreased FA were seen in the tracts of the forceps major, the temporal part of the inferior longitudinal fasciculus, and the dorsal cingulum on the left side. Regional increases in the FA values of patients with m.3243A>G were not found.

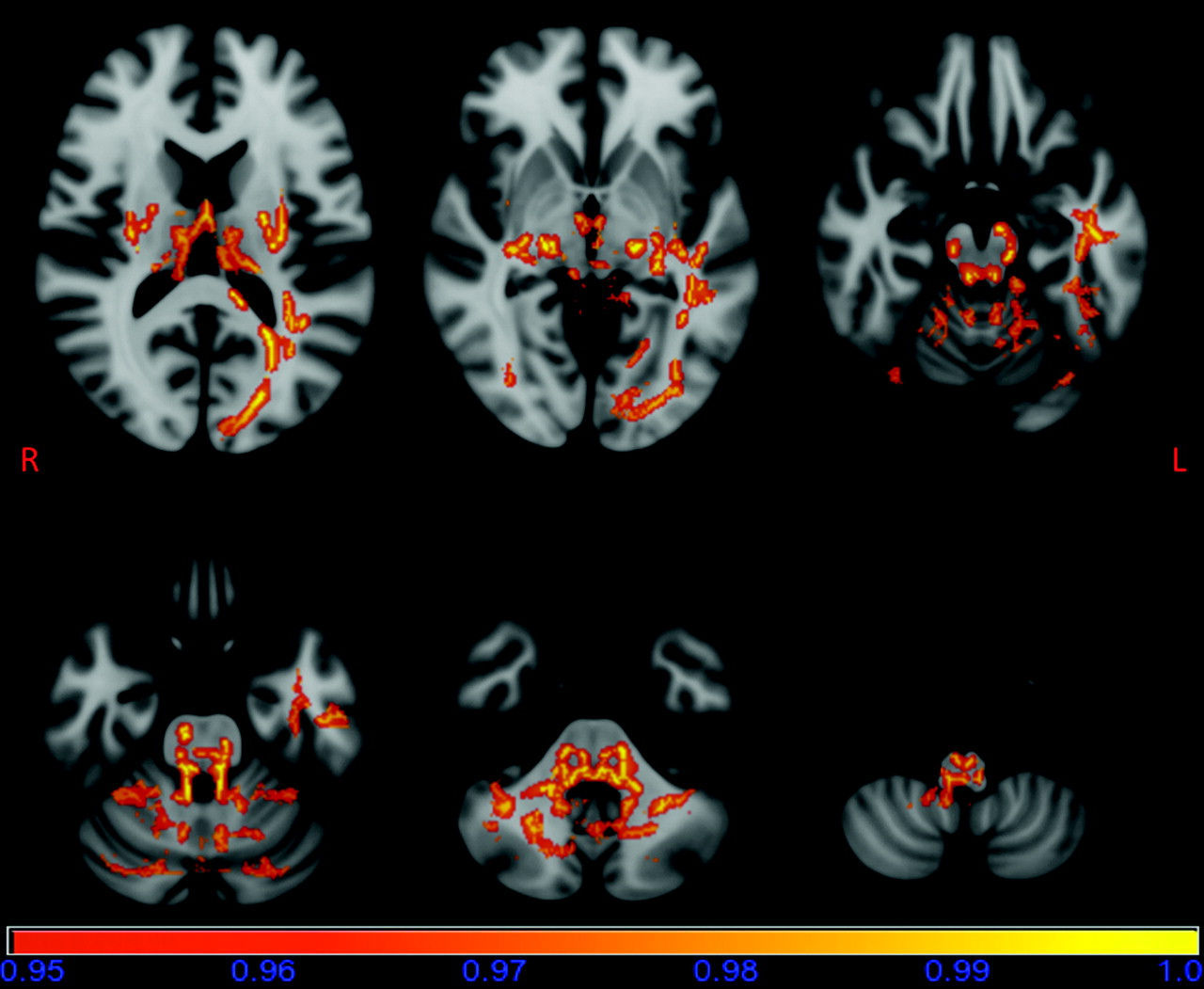

Fig 1.

Results of the TBSS analysis of the FA data overlaid on a standard MNI152 image. Areas of reduced FA in patients with m.3243A>G are seen bilaterally in occipital parts of the inferior longitudinal fasciculi, thalami, external capsules; the posterior limbs of internal capsules, mesencephalon, pons, superior, middle and inferior cerebellar peduncles; cerebellar white matter and medulla oblongata; on the left side in the tracts of forceps major; on the temporal part of the inferior longitudinal fasciculus; and on the dorsal cingulum. The horizontal bar shows the color scale, and the values under the bar are 1-P. The image is thresholded at P = .05, so that only statistically significant voxels are shown.

Voxelwise TBSS analysis of the MD values did not reveal regional differences between patients with m.3243A>G and controls.

Analysis of Brain Volume

Total brain tissue volume normalized for subject head size was significantly lower in patients with m.3243A>G (mean, 1400 ± 110 cm³) than in the controls (mean, 1504 ± 78.5 cm³) (P = .017). Normalized total white matter volume was significantly lower in patients (mean, 694 ± 45.0 cm³) than in controls (mean, 736 ± 44.3 cm³) (P = .023). Normalized total gray matter volume was also lower in patients (mean, 705 ± 75.4 cm³) than in controls (mean, 769 ± 47.1 cm³) (P = .029).

VBM analysis of the gray matter showed several clusters of significant (P < .05, fully corrected for multiple comparisons) reductions in regional gray matter volume in patients with m.3243A>G (Fig 2 ). Areas of reduced gray matter volume were seen bilaterally in the occipital pole regions, intracalcarine cortex regions, and cerebellar gray matter. In addition, gray matter volume was reduced in the superior part of the left occipital cortex.

Fig 2.

Results of the FSL-VBM analysis overlaid on a standard MNI152 image. Areas of reduced gray matter volume in patients with m.3243A>G are seen bilaterally in the occipital pole regions, intracalcarine cortex regions and cerebellar gray matter, and on the left side in the superior part of the occipital cortex. The horizontal bar shows the color scale and the values under the bar are 1-P. The image is thresholded at P = .05, so that only statistically significant voxels are shown.

Discussion

To our knowledge, this is the first study on brain white matter tract microintegrity assessed by means of DTI in patients with the m.3243A>G mutation. We found that FA values were lower in several areas of white matter in patients with m.3243A>G compared with those in the controls, while there were no differences in MD values. We suggest that these findings reflect mild microstructural damage leading to loss of directional organization of white matter, while the cell density is mainly preserved and the volume of extracellular space is not markedly increased.

Structural analysis showed that the total brain volume, white matter volume, and gray matter volume were reduced in patients with m.3243A>G. Reduced FA was seen almost exclusively in the posterior and caudal parts of the brain (Fig 1), where the areas of reduced gray matter volumes were also located (Fig 2). The causal relationship between DTI findings and structural imaging findings is not clear. It is possible that gray matter degeneration leads to reduction of FA values and loss of white matter in corresponding white matter tracts or that white matter tract damage leads to loss of gray matter in corresponding areas. Such secondary damage to gray matter is thought to be at least in part responsible for the gray matter degeneration in multiple sclerosis, though other hypotheses have also been presented.³⁰ However, the areas of reduced FA in white matter were more extensive than those of reduced gray matter. For example, the white matter of the corticospinal tract was involved, without a significant reduction in the gray matter volume of frontoparietal motor and sensory cortical areas. Thus, these findings suggest that mitochondrial dysfunction caused by the mutation affects both the gray and white matter. Some previous imaging^31,32 and neuropathologic^9,33 studies on MELAS syndrome also suggest that both gray and white matter are affected, and that white matter involvement is not only secondary to cortical damage.^9,33

Brain glucose and oxygen metabolism were previously assessed with positron-emission tomography in 28 of the 29 subjects also participating in this study.³⁴ The cerebral metabolic rate of oxygen is universally decreased in the gray and white matter of patients with the m.3243A>G mutation, whereas the metabolic rate of glucose is decreased with a predilection for the posterior parts of the brain.³⁴ Most interesting, we found here that FA values and gray matter volume were also reduced in the posterior and caudal brain areas of patients with m.3243A>G. The sequelae of MELAS syndrome are known to be progressive atrophy of the basal ganglia and occipitoparietotemporal regions, with relative preservation of more anterior temporal and frontal structures. Acute strokelike lesions in MELAS syndrome are also known to have some predilection for the occipitoparietal areas of the brain.³⁵ The cause of strokelike episodes is currently not well known, but impaired vascular autoregulation has been suggested as one possible explanation,³⁶ because posterior cerebral circulation is thought to be more susceptible to disturbances in autoregulation.³⁷

In a previous study on the same patient group, visual analysis of structural MR images for atrophy revealed that patients with m.3243A>G have more atrophy in the cerebellum but not in other parts of the brain, and visual analysis of white matter lesions did not reveal differences between patients with m.3243A>G and the controls.³⁴ In the present study, computerized VBM enabled us to detect loss of cerebellar gray matter of patients with m.3243A>G but also reduced gray matter volume in occipital areas and a global reduction in gray and white matter volume. The white matter hyperintensities usually have elevated MD values,³⁸ but we found no global or regional differences in MD values between the groups. Thus, we conclude that differences in FA values between the 2 groups are not due to white matter hyperintensities.

The clinical manifestations of the m.3243A>G mutation, such as sensorineural hearing loss and cognitive decline, are slowly progressive. In a 3-year follow-up study of patients with m.3423A>G, imaging findings were progressive in 16 of the 20 patients who completed the follow-up; most interesting, quantitative electroencephalography suggested slowly progressing encephalopathy in the occipital and parietal regions.¹⁰ This seems to be in line with our finding on a predilection for atrophic changes in the posterior parts of the brain. Furthermore, patients with mitochondrial disease caused by mutations in the POLG1 gene almost invariably develop an epileptic syndrome with initial features of occipital epilepsy.³⁹ The reason for this predilection for occipital lobes is unknown, but it suggests that the occipital cortex is more vulnerable to injury by energy deficiency than other parts of the brain.³⁹ Such a vulnerability could be due to the fact that the occipital cortex is one of the most active areas in the waking brain because of continuous visual input.

Reduction of the FA values in white matter is a nonspecific finding. While it is thought to be due to loss of microstructural integrity of white matter, the exact biologic process leading to white matter damage is difficult to determine. Thus, the neuropathologic correlate of our imaging findings remains unknown. Further studies are needed to validate and extrapolate our current imaging findings directly to neuropathologic changes.

Our current imaging findings indicate that patients with m.3243A>G have microstructural white matter changes and global or regional reduction of brain volume. We propose that DTI could be used as a quantitative marker in the assessment of white matter integrity in patients with m.3243A>G. Longitudinal studies will be needed to assess the possible prognostic value of DTI and the temporal evolution of FA values in patients with m.3243A>G.

We analyzed images with operator-independent and unbiased methods that surpass measurements performed by using manual region of interest−based methods. Our study is potentially limited by the use of a DTI sequence with only 16 diffusion-encoding gradient directions and moderate spatial resolution. Furthermore, the typical limitations of VBM analysis have to be taken into account.^40–42

Conclusions

We found that FA values were lower in patients with the m.3243A>G mutation than in the controls. Areas with decreased FA had a predilection for the posterior and caudal parts of the brain, even when previous visual analysis showed no significant difference in white matter hyperintensities. The patients also had lower gray and white matter volumes than control subjects. Patients with m.3243A>G seem to have a diffuse microstructural disturbance in the white matter, and DTI may be used as a quantitative method to assess white matter integrity in these patients.

References

1.↵
1. DiMauro S,
2. Schon EA
. Mitochondrial disorders in the nervous system. Annu Rev Neurosci 2008;31:91–123
CrossRef PubMed
2.↵
1. Chinnery PF,
2. Johnson MA,
3. Wardell TM,
4. et al
. The epidemiology of pathogenic mitochondrial DNA mutations. Ann Neurol 2000;48:188–93
CrossRef PubMed
3.↵
1. Uusimaa J,
2. Moilanen JS,
3. Vainionpää L,
4. et al
. Prevalence, segregation, and phenotype of the mitochondrial DNA 3243A>G mutation in children. Ann Neurol 2007;62:278–87
CrossRef PubMed
4.↵
1. Manwaring N,
2. Jones MM,
3. Wang JJ,
4. et al
. Population prevalence of the MELAS A3243G mutation. Mitochondrion 2007;7:230–33
CrossRef PubMed
5.↵
1. Elliott HR,
2. Samuels DC,
3. Eden JA,
4. et al
. Pathogenic mitochondrial DNA mutations are common in the general population. Am J Hum Genet 2008;83:254–60
CrossRef PubMed
6.↵
1. Majamaa K,
2. Moilanen JS,
3. Uimonen S,
4. et al
. Epidemiology of A3234G, the mutation for mitochondrial encephalomyopathy, lactic acidosis, and strokelike episodes: prevalence of the mutation in an adult population. Am J Hum Genet 1998;63:447–54
CrossRef PubMed
7.↵
1. Hirano M,
2. Pavlakis SG
. Mitochondrial myopathy, encephalopathy, lactic acidosis, and strokelike episodes (MELAS): current concepts. J Child Neurol 1994;9:4–13
Abstract/FREE Full Text
8.↵
1. Tanahashi C,
2. Nakayama A,
3. Yoshida M,
4. et al
. MELAS with the mitochondrial DNA 3243 point mutation: a neuropathological study. Acta Neuropathol 2000;99:31–38
CrossRef PubMed
9.↵
1. Yokoyama T,
2. Hasegawa K,
3. Obama R,
4. et al
. MELAS with diffuse degeneration of the white matter: report of an autopsy case. Neuropathology 2010;30:56–60
CrossRef PubMed
10.↵
1. Majamaa-Voltti KA,
2. Winqvist S,
3. Remes AM,
4. et al
. A 3-year clinical follow-up of adult patients with 3243A>G in mitochondrial DNA. Neurology 2006;66:1470–75
Abstract/FREE Full Text
11.↵
1. Schapira AH
. Mitochondrial disease. Lancet 2006;368:70–82
CrossRef PubMed
12.↵
1. Ducreux D,
2. Nasser G,
3. Lacroix C,
4. et al
. MR diffusion tensor imaging, fiber tracking, and single-voxel spectroscopy findings in an unusual MELAS case. AJNR Am J Neuroradiol 2005;26:1840–44
Abstract/FREE Full Text
13.↵
1. Brockmann K,
2. Finsterbusch J,
3. Schara U,
4. et al
. Stroke-like pattern in DTI and MRS of childhood mitochondrial leukoencephalopathy. Neuroradiology 2004;46:267–71
CrossRef PubMed
14.↵
1. Duning T,
2. Deppe M,
3. Keller S,
4. et al
. Diffusion tensor imaging in a case of Kearns-Sayre syndrome: striking brainstem involvement as a possible cause of oculomotor symptoms. J Neurol Sci 2009;281:110–11
CrossRef PubMed
15.↵
1. Hirano M,
2. Ricci E,
3. Koenigsberger MR,
4. et al
. MELAS: an original case and clinical criteria for diagnosis. Neuromuscul Disord 1992;2:125–35
CrossRef PubMed
16.↵
1. Smith SM,
2. Jenkinson M,
3. Woolrich MW,
4. et al
. Advances in functional and structural MR image analysis and implementation as FSL. Neuroimage 2004;23:S208–19
CrossRef PubMed
17.↵
1. Woolrich MW,
2. Jbabdi S,
3. Patenaude B,
4. et al
. Bayesian analysis of neuroimaging data in FSL. Neuroimage 2009;45:S173–86
CrossRef PubMed
18.↵
1. Smith SM,
2. Jenkinson M,
3. Johansen-Berg H,
4. et al
. Tract-based spatial statistics: voxelwise analysis of multi-subject diffusion data. Neuroimage 2006;31:1487–505
CrossRef PubMed
19.↵
1. Smith SM
. Fast robust automated brain extraction. Hum Brain Mapp 2002;17:143–55
CrossRef PubMed
20.↵
1. Andersson JL,
2. Jenkinson M,
3. Smith S
. Non-linear optimisation. FMRIB Analysis Group Technical Report. TR07JA1. 2007. www.fmrib.ox.ac.uk/analysis/techrep. Accessed April 15, 2010
21.↵
1. Andersson JL,
2. Jenkison M,
3. Smith S
. Non-linear registration, aka spatial normalisation. FMRIB Analysis Group Technical Report. TR07JA2. 2007. www.fmrib.ox.ac.uk/analysis/techrep. Accessed April 15, 2010
22.↵
1. Rueckert D,
2. Sonoda LI,
3. Hayes C,
4. et al
. Non-rigid registration using free-form deformations: application to breast MR imaging. IEEE Trans Med Imaging 1999;18:712–21
CrossRef PubMed
23.↵
1. Smith SM,
2. Zhang Y,
3. Jenkinson M,
4. et al
. Accurate, robust and automated longitudinal and cross-sectional brain change analysis. Neuroimage 2002;17:479–89
CrossRef PubMed
24.↵
1. Jenkinson M,
2. Smith S
. A global optimisation method for robust affine registration of brain images. Med Image Anal 2001;5:143–56
CrossRef PubMed
25.↵
1. Jenkinson M,
2. Bannister PR,
3. Brady JM,
4. et al
. Improved optimization for the robust and accurate linear registration and motion correction of brain images. Neuroimage 2002;17:825–41
CrossRef PubMed
26.↵
1. Zhang Y,
2. Brady M,
3. Smith S
. Segmentation of brain MR images through a hidden Markov random field model and the expectation maximization algorithm. IEEE Trans Med Imaging 2001;20:45–57
CrossRef PubMed
27.↵
1. Ashburner J,
2. Friston K
. Voxel-based morphometry: the methods. Neuroimage 2000;11:805–21
CrossRef PubMed
28.↵
1. Good C,
2. Johnsrude I,
3. Ashburner J,
4. et al
. A voxel-based morphometric study of ageing in 465 normal adult human brains. Neuroimage 2001;14:21–36
CrossRef PubMed
29.↵
1. Smith SM,
2. Nichols TE
. Threshold-free cluster enhancement: addressing problems of smoothing, threshold dependence and localisation in cluster inference. Neuroimage 2009;44:83–98. Epub 2008 Apr 11
CrossRef PubMed
30.↵
1. Geurts JJ,
2. Barkhof F
. Grey matter pathology in multiple sclerosis. Lancet Neurol 2008;7:841–51
CrossRef PubMed
31.↵
1. Castillo M,
2. Kwock L,
3. Green C
. MELAS syndrome: imaging and proton MR spectroscopic findings. AJNR Am J Neuroradiol 1995;15:233–39
32.↵
1. Apostolova LG,
2. White M,
3. Moore SA,
4. et al
. Deep white matter pathologic features in watershed regions: a novel pattern of central nervous system involvement in MELAS. Arch Neurol 2005;62:1154–56
CrossRef PubMed
33.↵
1. Tsuchiya K,
2. Miyazaki H,
3. Akabane H,
4. et al
. MELAS with prominent white matter gliosis and atrophy of the cerebellar granular layer: a clinical, genetic, and pathological study. Acta Neuropathol 1999;97:520–24
CrossRef PubMed
34.↵
1. Lindroos MM,
2. Borra RJ,
3. Parkkola R,
4. et al
. Cerebral oxygen and glucose metabolism in patients with mitochondrial m. 3243A>G mutation. Brain 2009;132:3274–84
Abstract/FREE Full Text
35.↵
1. Abe K,
2. Yoshimura H,
3. Tanaka H,
4. et al
. Comparison of conventional and diffusion-weighted MRI and proton MR spectroscopy in patients with mitochondrial encephalomyopathy, lactic acidosis, and stroke-like events. Neuroradiology 2004;46:113–17
CrossRef PubMed
36.↵
1. Clark JM,
2. Marks MP,
3. Adalsteinsson E,
4. et al
. MELAS: clinical and pathologic correlations with MRI, xenon/CT, and MR spectroscopy. Neurology 1996;46:223–27
Abstract/FREE Full Text
37.↵
1. Schwartz RB,
2. Jone KM,
3. Kalina P,
4. et al
. Hypertensive encephalopathy: findings on CT, MR imaging, and SPECT imaging in 14 cases. AJR Am J Roentgenol 1992;159:379–83
CrossRef PubMed
38.↵
1. Taylor WD,
2. Payne ME,
3. Krishnan KR,
4. et al
. Evidence of white matter tract disruption in MRI hyperintensities. Biol Psychiatry 2001;50:179–83
CrossRef PubMed
39.↵
1. Engelsen BA,
2. Charalampos T,
3. Karlsen B,
4. et al
. POLG1 mutations cause a syndromic epilepsy with occipital lobe predilection. Brain 2008;131:818–28
Abstract/FREE Full Text
40.↵
1. Bookstein FL
. “Voxel-based morphometry” should not be used with imperfectly registered images. Neuroimage 2001;14:1454–62
CrossRef PubMed
41.↵
1. Ashburner J,
2. Friston KJ
. Why voxel-based morphometry should be used. Neuroimage 2001;14:1238–43
CrossRef PubMed
42.↵
1. Henley SM,
2. Ridgway GR,
3. Scahill RI,
4. et al
. Pitfalls in the use of voxel-based morphometry as a biomarker: examples from Huntington disease. AJNR Am J Neuroradiol 2010;31:711–19
Abstract/FREE Full Text

Received May 24, 2010.
Accepted after revision July 15, 2010.

View Abstract

In this issue

Download PDF

Email Article

Citation Tools

Purchase

Cited By...

More in this TOC Section

Show more BRAIN

[1] 1.↵
DiMauro S,
Schon EA
. Mitochondrial disorders in the nervous system. Annu Rev Neurosci 2008;31:91–123
CrossRef PubMed

[2] DiMauro S,

[3] Schon EA

[4] 2.↵
Chinnery PF,
Johnson MA,
Wardell TM,
et al
. The epidemiology of pathogenic mitochondrial DNA mutations. Ann Neurol 2000;48:188–93
CrossRef PubMed

[5] Chinnery PF,

[6] Johnson MA,

[7] Wardell TM,

[8] et al

[9] 3.↵
Uusimaa J,
Moilanen JS,
Vainionpää L,
et al
. Prevalence, segregation, and phenotype of the mitochondrial DNA 3243A>G mutation in children. Ann Neurol 2007;62:278–87
CrossRef PubMed

[10] Uusimaa J,

[11] Moilanen JS,

[12] Vainionpää L,

[13] et al

[14] 4.↵
Manwaring N,
Jones MM,
Wang JJ,
et al
. Population prevalence of the MELAS A3243G mutation. Mitochondrion 2007;7:230–33
CrossRef PubMed

[15] Manwaring N,

[16] Jones MM,

[17] Wang JJ,

[18] et al

[19] 5.↵
Elliott HR,
Samuels DC,
Eden JA,
et al
. Pathogenic mitochondrial DNA mutations are common in the general population. Am J Hum Genet 2008;83:254–60
CrossRef PubMed

[20] Elliott HR,

[21] Samuels DC,

[22] Eden JA,

[23] et al

[24] 6.↵
Majamaa K,
Moilanen JS,
Uimonen S,
et al
. Epidemiology of A3234G, the mutation for mitochondrial encephalomyopathy, lactic acidosis, and strokelike episodes: prevalence of the mutation in an adult population. Am J Hum Genet 1998;63:447–54
CrossRef PubMed

[25] Majamaa K,

[26] Moilanen JS,

[27] Uimonen S,

[28] et al

[29] 7.↵
Hirano M,
Pavlakis SG
. Mitochondrial myopathy, encephalopathy, lactic acidosis, and strokelike episodes (MELAS): current concepts. J Child Neurol 1994;9:4–13
Abstract/FREE Full Text

[30] Hirano M,

[31] Pavlakis SG

[32] 8.↵
Tanahashi C,
Nakayama A,
Yoshida M,
et al
. MELAS with the mitochondrial DNA 3243 point mutation: a neuropathological study. Acta Neuropathol 2000;99:31–38
CrossRef PubMed

[33] Tanahashi C,

[34] Nakayama A,

[35] Yoshida M,

[36] et al

[37] 9.↵
Yokoyama T,
Hasegawa K,
Obama R,
et al
. MELAS with diffuse degeneration of the white matter: report of an autopsy case. Neuropathology 2010;30:56–60
CrossRef PubMed

[38] Yokoyama T,

[39] Hasegawa K,

[40] Obama R,

[41] et al

[42] 10.↵
Majamaa-Voltti KA,
Winqvist S,
Remes AM,
et al
. A 3-year clinical follow-up of adult patients with 3243A>G in mitochondrial DNA. Neurology 2006;66:1470–75
Abstract/FREE Full Text

[43] Majamaa-Voltti KA,

[44] Winqvist S,

[45] Remes AM,

[46] et al

[47] 11.↵
Schapira AH
. Mitochondrial disease. Lancet 2006;368:70–82
CrossRef PubMed

[48] Schapira AH

[49] 12.↵
Ducreux D,
Nasser G,
Lacroix C,
et al
. MR diffusion tensor imaging, fiber tracking, and single-voxel spectroscopy findings in an unusual MELAS case. AJNR Am J Neuroradiol 2005;26:1840–44
Abstract/FREE Full Text

[50] Ducreux D,

[51] Nasser G,

[52] Lacroix C,

[53] et al

[54] 13.↵
Brockmann K,
Finsterbusch J,
Schara U,
et al
. Stroke-like pattern in DTI and MRS of childhood mitochondrial leukoencephalopathy. Neuroradiology 2004;46:267–71
CrossRef PubMed

[55] Brockmann K,

[56] Finsterbusch J,

[57] Schara U,

[58] et al

[59] 14.↵
Duning T,
Deppe M,
Keller S,
et al
. Diffusion tensor imaging in a case of Kearns-Sayre syndrome: striking brainstem involvement as a possible cause of oculomotor symptoms. J Neurol Sci 2009;281:110–11
CrossRef PubMed

[60] Duning T,

[61] Deppe M,

[62] Keller S,

[63] et al

[64] 15.↵
Hirano M,
Ricci E,
Koenigsberger MR,
et al
. MELAS: an original case and clinical criteria for diagnosis. Neuromuscul Disord 1992;2:125–35
CrossRef PubMed

[65] Hirano M,

[66] Ricci E,

[67] Koenigsberger MR,

[68] et al

[69] 16.↵
Smith SM,
Jenkinson M,
Woolrich MW,
et al
. Advances in functional and structural MR image analysis and implementation as FSL. Neuroimage 2004;23:S208–19
CrossRef PubMed

[70] Smith SM,

[71] Jenkinson M,

[72] Woolrich MW,

[73] et al

[74] 17.↵
Woolrich MW,
Jbabdi S,
Patenaude B,
et al
. Bayesian analysis of neuroimaging data in FSL. Neuroimage 2009;45:S173–86
CrossRef PubMed

[75] Woolrich MW,

[76] Jbabdi S,

[77] Patenaude B,

[78] et al

[79] 18.↵
Smith SM,
Jenkinson M,
Johansen-Berg H,
et al
. Tract-based spatial statistics: voxelwise analysis of multi-subject diffusion data. Neuroimage 2006;31:1487–505
CrossRef PubMed

[80] Smith SM,

[81] Jenkinson M,

[82] Johansen-Berg H,

[83] et al

[84] 19.↵
Smith SM
. Fast robust automated brain extraction. Hum Brain Mapp 2002;17:143–55
CrossRef PubMed

[85] Smith SM

[86] 20.↵
Andersson JL,
Jenkinson M,
Smith S
. Non-linear optimisation. FMRIB Analysis Group Technical Report. TR07JA1. 2007. www.fmrib.ox.ac.uk/analysis/techrep. Accessed April 15, 2010

[87] Andersson JL,

[88] Jenkinson M,

[89] Smith S

[90] 21.↵
Andersson JL,
Jenkison M,
Smith S
. Non-linear registration, aka spatial normalisation. FMRIB Analysis Group Technical Report. TR07JA2. 2007. www.fmrib.ox.ac.uk/analysis/techrep. Accessed April 15, 2010

[91] Andersson JL,

[92] Jenkison M,

[93] Smith S

[94] 22.↵
Rueckert D,
Sonoda LI,
Hayes C,
et al
. Non-rigid registration using free-form deformations: application to breast MR imaging. IEEE Trans Med Imaging 1999;18:712–21
CrossRef PubMed

[95] Rueckert D,

[96] Sonoda LI,

[97] Hayes C,

[98] et al

[99] 23.↵
Smith SM,
Zhang Y,
Jenkinson M,
et al
. Accurate, robust and automated longitudinal and cross-sectional brain change analysis. Neuroimage 2002;17:479–89
CrossRef PubMed

[100] Smith SM,

[101] Zhang Y,

[102] Jenkinson M,

[103] et al

[104] 24.↵
Jenkinson M,
Smith S
. A global optimisation method for robust affine registration of brain images. Med Image Anal 2001;5:143–56
CrossRef PubMed

[105] Jenkinson M,

[106] Smith S

[107] 25.↵
Jenkinson M,
Bannister PR,
Brady JM,
et al
. Improved optimization for the robust and accurate linear registration and motion correction of brain images. Neuroimage 2002;17:825–41
CrossRef PubMed

[108] Jenkinson M,

[109] Bannister PR,

[110] Brady JM,

[111] et al

[112] 26.↵
Zhang Y,
Brady M,
Smith S
. Segmentation of brain MR images through a hidden Markov random field model and the expectation maximization algorithm. IEEE Trans Med Imaging 2001;20:45–57
CrossRef PubMed

[113] Zhang Y,

[114] Brady M,

[115] Smith S

[116] 27.↵
Ashburner J,
Friston K
. Voxel-based morphometry: the methods. Neuroimage 2000;11:805–21
CrossRef PubMed

[117] Ashburner J,

[118] Friston K

[119] 28.↵
Good C,
Johnsrude I,
Ashburner J,
et al
. A voxel-based morphometric study of ageing in 465 normal adult human brains. Neuroimage 2001;14:21–36
CrossRef PubMed

[120] Good C,

[121] Johnsrude I,

[122] Ashburner J,

[123] et al

[124] 29.↵
Smith SM,
Nichols TE
. Threshold-free cluster enhancement: addressing problems of smoothing, threshold dependence and localisation in cluster inference. Neuroimage 2009;44:83–98. Epub 2008 Apr 11
CrossRef PubMed

[125] Smith SM,

[126] Nichols TE

[127] 30.↵
Geurts JJ,
Barkhof F
. Grey matter pathology in multiple sclerosis. Lancet Neurol 2008;7:841–51
CrossRef PubMed

[128] Geurts JJ,

[129] Barkhof F

[130] 31.↵
Castillo M,
Kwock L,
Green C
. MELAS syndrome: imaging and proton MR spectroscopic findings. AJNR Am J Neuroradiol 1995;15:233–39

[131] Castillo M,

[132] Kwock L,

[133] Green C

[134] 32.↵
Apostolova LG,
White M,
Moore SA,
et al
. Deep white matter pathologic features in watershed regions: a novel pattern of central nervous system involvement in MELAS. Arch Neurol 2005;62:1154–56
CrossRef PubMed

[135] Apostolova LG,

[136] White M,

[137] Moore SA,

[138] et al

[139] 33.↵
Tsuchiya K,
Miyazaki H,
Akabane H,
et al
. MELAS with prominent white matter gliosis and atrophy of the cerebellar granular layer: a clinical, genetic, and pathological study. Acta Neuropathol 1999;97:520–24
CrossRef PubMed

[140] Tsuchiya K,

[141] Miyazaki H,

[142] Akabane H,

[143] et al

[144] 34.↵
Lindroos MM,
Borra RJ,
Parkkola R,
et al
. Cerebral oxygen and glucose metabolism in patients with mitochondrial m. 3243A>G mutation. Brain 2009;132:3274–84
Abstract/FREE Full Text

[145] Lindroos MM,

[146] Borra RJ,

[147] Parkkola R,

[148] et al

[149] 35.↵
Abe K,
Yoshimura H,
Tanaka H,
et al
. Comparison of conventional and diffusion-weighted MRI and proton MR spectroscopy in patients with mitochondrial encephalomyopathy, lactic acidosis, and stroke-like events. Neuroradiology 2004;46:113–17
CrossRef PubMed

[150] Abe K,

[151] Yoshimura H,

[152] Tanaka H,

[153] et al

[154] 36.↵
Clark JM,
Marks MP,
Adalsteinsson E,
et al
. MELAS: clinical and pathologic correlations with MRI, xenon/CT, and MR spectroscopy. Neurology 1996;46:223–27
Abstract/FREE Full Text

[155] Clark JM,

[156] Marks MP,

[157] Adalsteinsson E,

[158] et al

[159] 37.↵
Schwartz RB,
Jone KM,
Kalina P,
et al
. Hypertensive encephalopathy: findings on CT, MR imaging, and SPECT imaging in 14 cases. AJR Am J Roentgenol 1992;159:379–83
CrossRef PubMed

[160] Schwartz RB,

[161] Jone KM,

[162] Kalina P,

[163] et al

[164] 38.↵
Taylor WD,
Payne ME,
Krishnan KR,
et al
. Evidence of white matter tract disruption in MRI hyperintensities. Biol Psychiatry 2001;50:179–83
CrossRef PubMed

[165] Taylor WD,

[166] Payne ME,

[167] Krishnan KR,

[168] et al

[169] 39.↵
Engelsen BA,
Charalampos T,
Karlsen B,
et al
. POLG1 mutations cause a syndromic epilepsy with occipital lobe predilection. Brain 2008;131:818–28
Abstract/FREE Full Text

[170] Engelsen BA,

[171] Charalampos T,

[172] Karlsen B,

[173] et al

[174] 40.↵
Bookstein FL
. “Voxel-based morphometry” should not be used with imperfectly registered images. Neuroimage 2001;14:1454–62
CrossRef PubMed

[175] Bookstein FL

[176] 41.↵
Ashburner J,
Friston KJ
. Why voxel-based morphometry should be used. Neuroimage 2001;14:1238–43
CrossRef PubMed

[177] Ashburner J,

[178] Friston KJ

[179] 42.↵
Henley SM,
Ridgway GR,
Scahill RI,
et al
. Pitfalls in the use of voxel-based morphometry as a biomarker: examples from Huntington disease. AJNR Am J Neuroradiol 2010;31:711–19
Abstract/FREE Full Text

[180] Henley SM,

[181] Ridgway GR,

[182] Scahill RI,

[183] et al

Main menu

User menu

Search

American Journal of Neuroradiology

Voxelwise Analysis of Diffusion Tensor Imaging and Structural MR Imaging in Patients with the m.3243A>G Mutation in Mitochondrial DNA

Abstract

Abbreviations

Materials and Methods

Subjects

MR Imaging Data Acquisition

Image and Data Analysis

Statistical Analysis

Results

Mean MD, FA, and TBSS Analysis

Analysis of Brain Volume

Discussion

Conclusions

References

In this issue

Citation Manager Formats

Related Articles

Cited By...

More in this TOC Section

Similar Articles

News and Updates

Resources

Opportunities

American Society of Neuroradiology

Main menu

User menu

Search

Voxelwise Analysis of Diffusion Tensor Imaging and Structural MR Imaging in Patients with the m.3243A>G Mutation in Mitochondrial DNA

Abstract

Abbreviations

Materials and Methods

Subjects

MR Imaging Data Acquisition

Image and Data Analysis

Statistical Analysis

Results

Mean MD, FA, and TBSS Analysis

Analysis of Brain Volume

Discussion

Conclusions

References

In this issue

Citation Manager Formats

Jump to section

Related Articles

Cited By...

More in this TOC Section

Similar Articles

News and Updates

Resources

Opportunities

American Society of Neuroradiology
