Quantification of Thrombus Hounsfield Units on Noncontrast CT Predicts Stroke Subtype and Early Recanalization after Intravenous Recombinant Tissue Plasminogen Activator

J. Puig; S. Pedraza; A. Demchuk; J. Daunis-i-Estadella; H. Termes; G. Blasco; G. Soria; I. Boada; S. Remollo; J. Baños; J. Serena; M. Castellanos

doi:10.3174/ajnr.A2878

Abstract

BACKGROUND AND PURPOSE: Little is known about the factors that determine recanalization after intravenous thrombolysis. We assessed the value of thrombus Hounsfield unit quantification as a predictive marker of stroke subtype and MCA recanalization after intravenous rtPA treatment.

MATERIALS AND METHODS: NCCT scans and CTA were performed on patients with MCA acute stroke within 4.5 hours of symptom onset. Demographics, stroke severity, vessel hyperattenuation, occlusion site, thrombus length, and time to thrombolysis were recorded. Stroke origin was categorized as LAA, cardioembolic, or indeterminate according to TOAST criteria. Two blinded neuroradiologists calculated the Hounsfield unit values for the thrombus and contralateral MCA segment. We used ROC curves to determine the rHU cutoff point to discriminate patients with successful recanalization from those without. We assessed the accuracy (sensitivity, specificity, and positive and negative predictive values) of rHU in the prediction of recanalization.

RESULTS: Of 87 consecutive patients, 45 received intravenous rtPA and only 15 (33.3%) patients had acute recanalization. rHU values and stroke mechanism were the highest predictive factors of recanalization. The Matthews correlation coefficient was highest for rHU (0.901). The sensitivity, specificity, and positive and negative predictive values for lack of recanalization after intravenous rtPA for rHU ≤ 1.382 were 100%, 86.67%, 93.75%, and 100%, respectively. LAA thrombi had lower rHU than cardioembolic and indeterminate stroke thrombi (P = .004).

CONCLUSIONS: The Hounsfield unit thrombus measurement ratio can predict recanalization with intravenous rtPA and may have clinical utility for endovascular treatment decision making.

ABBREVIATIONS

ASPECTS: Alberta Stroke Program Early CT Score
DIAS: Desmoteplase in Acute Ischemic Stroke
DICOM: digital imaging and communication in medicine
HMCAS: hyperdense middle cerebral artery sign
ICC: intraclass correlation coefficient
IQR: interquartile range
LAA: large artery atherosclerosis
MIP: maximum intensity projection
mRS: modified Rankin Scale
NINDS: National Institute of Neurological Disorders and Stroke
rHU: Hounsfield Unit ratio
r_ϕ: Matthews correlation coefficient
ROC: receiver operating characteristic
rt-PA: recombinant tissue plasminogen activator
TIBI: Thrombolysis in Brain Ischemia
TIMI: Thrombolysis in Myocardial Infarction
TOAST: Trial of Org 10172 in Acute Stroke Treatment

Based on the NINDS trial, intravenous rtPA remains the only treatment approved for acute stroke.¹ Early reperfusion of ischemic brain tissue is the strongest predictor of neurologic improvement.² Nevertheless, rtPA fails in ≤75% of patients who do not recanalize acutely or recanalize too late, leading to larger infarcts and poor clinical outcome.³

Little is known about the factors that determine the success of intravenous thrombolysis in patients with acute stroke. Age, stroke severity, systolic hypertension, hyperglycemia, HMCAS, and time to thrombolytic treatment were independent negative predictors of recanalization in multivariate regression models.^4,5 Moreover, occlusion site, residual flow on transcranial Doppler at the site of occlusion, and cardioembolic stroke subtype predict the likelihood of complete recanalization.^6–8 On the other hand, the presence of HMCAS, a highly specific marker of vascular occlusion, has been associated with stroke severity at baseline, but its value in predicting the efficacy of intravenous rtPA and functional outcome has been questioned.^9–11

NCCT and CTA detect thrombi in large arteries and provide information about thrombus composition based on Hounsfield unit.^12,13 Postmortem studies have demonstrated that thromboembolic stroke can be caused by white, red, or mixed blood cell clots.¹⁴ White cell thrombi contain varying amounts of atheromatous and cellular debris, fibrin, and platelets but few red cells, so they have lower Hounsfield unit counts. In contrast, red cell clots have higher concentrations of hemoglobin, so they have higher Hounsfield unit counts.¹⁵ White cell clots in the cerebral arteries are more common in patients with primary LAA than in those with thrombus from cardioembolic sources. Some studies have demonstrated that white cell clots are more resistant to thrombolytics than red cell clots.¹⁶

Noninvasive tools that may be useful for the prediction of rtPA failure would be useful for choosing other recanalization strategies, including new drugs targeting other components of the thrombus or early preparation for interventional procedures to remove clots.¹⁷ Additionally, early determination of the etiologic factors of stroke is essential for secondary prevention because the risk of recurrence is highly dependent on the underlying cause.¹⁸

We aimed to investigate whether the success of rtPA-induced arterial recanalization can be predicted by Hounsfield unit quantification on NCCT in patients after MCA acute ischemic stroke and the potential of Hounsfield unit quantification for determining the work-up of stroke in daily practice.

Materials and Methods

Patients

We retrospectively studied MCA occlusion patients with disabling stroke symptoms treated with intravenous rtPA admitted to our hospital from December 2008 to January 2010 within 4.5 hours from symptom onset.¹⁹ Inclusion criteria were the following: 1) age from 18 to 80 years, 2) MCA occlusion documented on CTA before intravenous thrombolysis, and 3) NIHSS score at admission >4. Standard intravenous rtPA therapy was administered (0.9 mg/kg; maximum, 90 mg; 10% bolus; 90% continuous infusion). Exclusion criteria included history of serious allergic-like reactions to iodine-based contrast material, and carotid T occlusion. According to published guidelines, patients without clinical improvement after rtPA underwent mechanical thrombectomy.²⁰ Stroke severity was assessed by the NIHSS score.²¹ Functional outcome was evaluated at 3 months by using mRS; patients were considered functionally independent if mRS was ≤2.²² Stroke mechanism was classified by using the modified TOAST criteria.²³ The analysis by subtypes was confined to 3 major stroke subtypes: LAA, cardioembolic, and indeterminate cause of stroke. The local ethics committee approved the study protocol.

Imaging Protocols

We used a 16-detector CT scanner (MX8000 IDT; Philips Healthcare, Best, the Netherlands) to perform standard brain studies with the following parameters: axial nonhelical scan acquisition with collimation, 0.75 mm; tube current, 350 mAs; tube voltage, 120 kV; time cycle, 2; rotation speed, 0.75 seconds; standard resolution; section thickness, 3 mm; and matrix, 512 × 512. We obtained continuous axial sections parallel to the orbitomeatal line from the base of the skull to the vertex.

CTA was performed with low-osmolar nonionic monomer iopromide (Ultravist; Bayer Schering Pharma, Berlin, Germany) at 300 mg iodine/mL. Contrast-enhanced image acquisition was initiated by visual contrast bolus tracking in the cervical arteries after an 80-mL bolus was infused at a rate of 4 mL/s, followed by 20 mL of saline solution at 4 mL/s. The vessels were scanned in the helical mode with the following parameters: collimation, 16 × 0.75; tube current, 300 mAs; tube voltage, 120 kV; rotation speed, 0.75 seconds; and pitch, 0.98. Reconstruction parameters for the axial sections were the following: effective section thickness, 1 mm; increments, 0.5 mm; reconstruction kernel filter, C; and matrix, 512 × 512.

Carotid and transcranial duplex sonography were performed in all patients, and MCA was monitored during rtPA perfusion. When CTA was performed 1 hour after thrombolysis, the protocol was the same as that at admission. Finally, 1.5T MR imaging (Intera, Philips Healthcare) was performed within 12 hours of onset; the protocol included axial trace DWI, FLAIR, gradient-echo sequences, and perfusion-weighted imaging. Postperfusion intracranial MRA was performed by using a standard method.²⁴

Image Analysis

All DICOM data were transferred to Starviewer software, a platform developed in our research laboratory (http://gilab.udg.edu/). The HMCAS was defined by the following criteria²⁵: 1) spontaneous visibility of the whole horizontal part of the MCA, 2) attenuation of the MCA higher than that of the surrounding brain, 3) disappearance on bone windows, 4) unilaterality, and 5) absence of subarachnoid hemorrhage. The M2 dot sign was defined as hyperattenuation of an arterial structure in the Sylvian fissure relative to the contralateral side.²⁶ On the basis of CTA images, ROIs were manually placed on the thrombus and on the contralateral MCA on NCCT by 2 independent neuroradiologists (J.P., H.T.) blinded to clinical data. The Hounsfield unit values were obtained for each ROI by averaging all voxels within the ROI. The final Hounsfield unit value for each thrombus was calculated by summing the Hounsfield unit of the ROIs in each section in which the thrombus was seen and dividing by the number of sections (Fig 1). Because thrombus Hounsfield unit counts are affected by the hematocrit,¹³ they were corrected by determining the Hounsfield unit of the contralateral normal segment and calculating the ipsilateral-to-contralateral rHU (rHU = MCA symptomatic side / MCA asymptomatic side). Two raters (J.P., H.T.) determined the Hounsfield unit independently, and their results were averaged. Additionally, 1 rater (J.P.) repeated Hounsfield unit measurements in all patients 1 month after the first determination. We calculated the intraobserver and interobserver reliabilities.

Fig 1.

A 78-year-old woman with severe right-sided hemiparesis and aphasia 70 minutes after symptom onset. NCCT demonstrates left HMCAS involving the proximal segment (M1) of the MCA. The rHU of the thrombus was 1.14 (ROI values at bottom row on magnified zoom ×3). Intravenous rtPA failed to achieve recanalization.

To determine the true extent of vascular occlusion, CTA images were obtained before rtPA. The thrombus length was determined on the axial thick-slab MIP image of the CTA dataset. We assessed the patency of the MCA with the modified TIMI grading system, as follows²⁷: complete occlusion with no perfusion past the thrombus (TIMI 0); perfusion past the initial occlusion with no opacification of the distal vessels (TIMI 1); partial occlusion (TIMI 2), defined as an obstruction with opacification of the distal vessels; and complete recanalization (TIMI 3). Standard (TIBI) grading (0–5) was used to score vessel flow on transcranial duplex sonography. Recanalization status was immediately determined by certified staff by using transcranial duplex sonography (J.S., M.C.) and from 1 hour after thrombolysis by using CTA or MRA. Recanalization was defined as TIBI 3–5 or TIMI 2–3 flow in vessels.²⁸ TIBI and TIMI scores have good correlation.³ If the 2 observers' scores differed, the final decision was reached by consensus.

Statistical Analysis

Descriptive statistics were expressed as a median with a range for continuous variables and as numbers (percentages) for categoric variables. We compared baseline data, clinical variables at admission, stroke etiology, results of neurologic assessment, other CT findings, and outcomes between patients with complete recanalization and patients with persistent occlusion. We used multivariate analyses to identify prognostic factors for MCA recanalization after rtPA and to determine the prognostic significance of rHU for recanalization. For univariate comparison between patients with recanalization and those without, we used the t test for numeric data and the χ² test (with Yates correction for 2 × 2 tables or, in case of small expected frequencies, the Fisher exact test) for proportions. We used multiple logistic regression to define independent predictors of functional outcome. To calculate the rHU cutoff point to discriminate recanalization and persistent occlusion, we used ROC curves. We used the r_ϕ to determine which variables were more strongly associated with recanalization.²⁹ Statistical significance was set at P < .05. To compare Hounsfield unit measurements (intraobserver and interobserver reliabilities), we used ICCs. The level of intra- and interobserver consistency was respectively classified as fair (ICC = 0.5–0.7), good (0.7–0.9), or almost perfect (>0.90). All statistical evaluations were performed by using Minitab, Version 15.1.0.0 (Minitab, State College, Pennsylvania).

Results

Subjects

Among 87 consecutive patients admitted for acute MCA ischemic stroke, 39 (44.7%) were excluded from the study because they did not meet 1 of the following study inclusion/exclusion criteria: contraindication for iodine-based contrast material injection resulting in no CTA performed (n = 4, 4.6%), no visible occlusion (n = 21, 24%), NIHSS score ≤4 (n = 10, 11.5%), and carotid T occlusion (n = 4, 4.6%). Of the subjects meeting the criteria, 3 were excluded from analysis as a result of poor image quality due to motion artifacts. Thus, 45 patients (20 women; median age, 73 years) treated with intravenous thrombolysis were available for imaging analysis.

Clinical and Neuroimaging Characteristics

On-line Table 1 summarizes patients' demographic data, risk-factor profile, and clinical and radiologic findings. The baseline median NIHSS score was 16. CTA was the technique to confirm MCA occlusion in all baseline studies. The median time from symptom onset to initiation of intravenous rtPA was 169 ± 102 minutes. The HMCAS and MCA dot sign were seen in 26 patients (57.8%) and 8 patients (17.8%), respectively. Interobserver reliability for the detection of HMCAS was substantial (κ = 0.70), and intraobserver reliability was good (ICC = 0.72). Stroke etiologic subtypes were LAA in 15 cases (33.3%), cardioembolic in 21 (46.7%), and indeterminate in 9 (20%). The median time from symptom onset to assessment of recanalization by follow-up vascular imaging was 305 ± 115 minutes. Follow-up vascular imaging was CTA in 18 (40%) subjects, MRA in 27 (60%) subjects, and transcranial duplex sonography in 41 (91.1%) subjects. If available, recanalization was assessed by CTA, and if not, by MRA.

M1 occlusion was present in 57.8% of cases. Recanalization was achieved in 15 patients (33.2%). M2 occlusions were present in 11 patients (24.3%), and recanalization was achieved in 6 (54.6%) cases (Fig 2). The rate of persistent occlusion was more frequent in LAA (94%) (P = .007). The rate of persistent occlusion was 52.4% in cardioembolic etiologies and 55.6% in indeterminate causes.

Fig 2.

A 64-year-old man with aphasia 180 minutes after symptom onset. NCCT demonstrates a hyperattenuated thrombus in the left M2 segment, corroborated on CTA axial MIP (arrow). The rHU of the thrombus was 1.48. Treatment succeeded, and the vascular hyperattenuation disappeared (bottom row).

Among the occlusion sites, best outcomes were achieved for M1-MCA (53%), followed by M2-MCA (40%), and M1-M2 MCA (7%). Only 5 of the patients in whom rtPA failed to recanalize the occluded artery underwent mechanical thrombectomy because this treatment was unavailable until the last 2 months of this study.

Analysis of Variables Associated with Early Recanalization

On-line Table 1 reports the univariate comparison of the recanalized and unrecanalized subgroups. Absolute Hounsfield unit, contralateral MCA Hounsfield unit, rHU, and LLA were the variables associated to recanalization; rHU was the strongest predictor of recanalization (r_ϕ = 0.901) (On-line Table 2). Mean rHUs of recanalized and unrecanalized thrombi were 1.57 ± 0.23 and 1.11 ± 0.15, respectively (P < .001, T value = 6.81). The estimated interobserver and intraobserver reliabilities showed good agreement for Hounsfield unit measurements (intraclass correlation coefficients were 0.745 and 0.801, respectively).

We calculated the rHU cutoff value with the highest predictive capacity for persistent occlusion. This analysis showed that rHU < 1.382 predicted persistent occlusion after intravenous rtPA with a sensitivity, specificity, and positive and negative predictive values of 100%, 86.67%, 93.75%, and 100%, respectively (Fig 3).

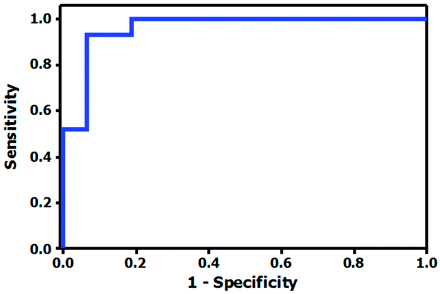

Fig 3.

ROC curve for Hounsfield unit ratios in the prediction of vascular recanalization. The area under the ROC curve is equal to 0.96.

The HMCAS was present in 9 (60%) recanalized thrombi, and 5 of these had rHU > 1.382. The HMCAS was present in 17 (65.39%) unrecanalized thrombi, and all had rHU < 1.382. Thrombi were isoattenuated or hypoattenuated in 12 cases (26.67%); 9 (75%) of these had rHU < 1.382 and did not recanalize (Fig 4 and On-line Fig. 1).

Fig 4.

Distribution of thrombi according to the effectiveness of intravenous rtPA and stroke etiology. The cutoff value is set at 1.382 to cover all thrombi that failed to recanalize after intravenous rtPA (top). Values above this cutoff point can reliably discriminate thrombi from LAA (above). CE indicates cardioembolic.

The mean absolute Hounsfield unit values were 42.093 ± 4.09 for unrecanalized and 49.330 ± 7.07 for recanalized thrombi (P = .001, T value = 3.77). The sensitivity, specificity, and positive and negative predictive values for persistent occlusion after intravenous rtPA for absolute Hounsfield units < 50.90 were 100%, 37.50%, 81.81%, and 100%, respectively. The area under the ROC curve was 0.79.

The contralateral MCA Hounsfield unit mean values were 36.721 ± 2.75 for unrecanalized and 32.470 ± 6.41 for recanalized thrombi (P = .021, T value = −2.53). The area under the ROC curve was 0.76.

Although rHU values, absolute thrombus Hounsfield unit values, and contralateral MCA values were predictive factors of recanalization, both the T value, with equivalent degrees of freedom, and the area under the ROC curve are better for the rHU values. It was not possible to include all the Hounsfield unit values, relative and absolutes, due to the multicollinearity between them.

Hounsfield Unit Quantification on Thrombus and Stroke Subtype

The HMCAS was present in 73.2% of LAA, in 42.9% of cardioembolic, and in 55.6% of indeterminate thrombi. The rHU values were 1.372 ± 0.31 for cardioembolic stroke, 1.101 ± 1.17 for LAA stroke, and 1.462 ± 0.26 for stroke of indeterminate origin (On-line Table 1). We found rHU < 1.382 in 93.3% of LAA thrombi (P = .020) and in 57.1% of cardioembolic thrombi (P = .053) (Fig 4). The sensitivity, specificity, and positive and negative predictive values of rHU ≤ 1.382 for LAA stroke subtype were 93.3%, 40%, 43.6%, and 92.3%, respectively.

Discussion

Our study shows that Hounsfield unit quantification of thrombus in CTA-proved MCA proximal occlusion can predict the success of intravenous rtPA recanalization. Although significant differences were noted when absolute thrombus and contralateral Hounsfield unit values were analyzed, rHU was the strongest predictor of recanalization. Specifically, a cutoff of rHU < 1.382 derived by ROC analysis was associated with nonrecanalization after intravenous rtPA treatment in acute ischemic stroke. This method might be useful for rapid triage of patients for thrombolytic therapy to decide which patients should undergo endovascular rescue therapy.

Our findings are in good agreement with those of Kim et al,¹³ who found that CT-based measurement of Hounsfield units may be helpful in predicting the effectiveness of thrombolytic therapy. Hemoglobin determines the attenuation of a clot, and lysability appears to increase with increasing hematocrit levels, suggesting that the composition of the thrombus determines its susceptibility to intravenous thrombolysis.^12,13 White thrombi consist of varying amounts of platelets, atheromatous, and cellular debris, with few red cells, resulting in lower Hounsfield unit values and greater resistance to fibrinolytic agents. Red thrombi contain erythrocytes and some fibrin, resulting in higher Hounsfield unit counts and greater susceptibility to fibrinolytic agents.^15,16 Experimental studies show that white thrombi retract more than red thrombi, resulting in reduced permeability to the bulk flow of thrombolytic agents, increased fibrin content per unit of clot volume, and decreased plasminogen content.^16,30

The HMCAS is an indicator of intraluminal thrombus; this early CT finding is reported in 5%–59% of acute ischemic strokes.^{10–12,31,32} Most interesting, we found that a hyperattenuated thrombus does not necessarily have high Hounsfield unit values. Perceiving low-attenuation thrombi as hyperattenuated could be due to the limited sensitivity of the human eye to shades of gray. We found rHU < 1.382 in more than half of the HMCASs seen. The efficacy of intravenous rtPA in patients with the HMCAS and its impact in terms of functional outcome remain controversial.^10,11,25 A systematic review of early CT signs of stroke revealed that the HMCAS was associated with worse functional outcome at 6 months.⁴ Nevertheless, the NINDS and the European Cooperative Acute Stroke Study found better outcomes when patients with HMCAS were treated with intravenous rtPA compared with placebo, and the HMCAS was not an independent predictor of poor outcome.^11,33 The HMCAS was more prevalent in our population than in other series, probably because the thin sections (3 mm) that we obtained on NCCT scans reduced partial volume averaging and enabled more precise visualization and delineation of small thrombi in nonlinear arteries compared with previous studies, which used section thicknesses of ≥5 mm.^10,34 The fact that nearly half of the thrombi in our study were attributable to cardioembolic disease may explain the increase in the rate of hyperattenuated thrombi.

Early recanalization has been associated with good clinical outcome.^3,35 Our analysis suggests that rHU quantification is a better predictor of recanalization than the visual assessment of attenuation. However, we did not find worse functional outcome or higher mortality in patients in whom recanalization failed or in those with low thrombus rHU values, probably due to our small sample size. Additionally, though the thrombi from LAA had a low MCA recanalization compared with those with cardioembolic causes, this difference did not reach significance. We excluded T occlusions because they are reportedly more resistant to intravenous thrombolysis than isolated MCA occlusions.⁵ Our findings are in line with those of Molina et al,⁸ who found more successful early rtPA recanalization in cardioembolic strokes (59%) and low recanalization rates in patients with concomitant ipsilateral carotid artery disease.

The structure of the thrombi has an influence on their susceptibility to lysis and the penetration of thrombolytic agents compared with atherosclerotic thrombi.³⁶ Cardioembolic thrombi are formed under conditions of relative stasis. These clots are more uniform and contain more fibrin and red cells than thrombi in LAA, so given the high binding affinity of rtPA for fibrin, the thrombolytic agent penetrates and distributes homogeneously, making successful recanalization more likely. In contrast, the ability of rtPA to penetrate old well-organized platelet-rich clots is limited, and this limitation may result in nonuniform clot softening and less successful recanalization.⁸ Effective distribution of rtPA within the clot accelerates fibrinolysis, and the fibrinolytic rate depends on the pressure gradient to which the clot is exposed.³⁷ Moreover, severe carotid artery disease might decrease the pressure gradient on the clot and hamper the delivery of rtPA into the MCA thrombus, which may explain the poor response to lysis.^8,37,38

Several limitations warrant consideration in this study. The study was small in size and retrospective in design. Different imaging modalities were used to determine recanalization. Manual ROI placement may be subject to operator bias. Recently developed semiautomatic methods might enable quantitative thrombus analysis and thereby mitigate this potential error in the hyperacute setting without delaying treatment.³¹ Finally, thinner reconstructions of NCCT data with a section width of <3 mm might allow the accurate measurement of Hounsfield unit quantification in the cerebral artery.

Conclusions

rHU measurement on NCCT may be useful in predicting the effectiveness of intravenous rtPA. An rHU cutoff below 1.382 may predict persistent occlusion after intravenous thrombolysis. Larger prospective studies are needed to validate these findings.

Acknowledgments

We thank John Giba for English assistance.
