Quantitative Assessment of Chronic Thalamic Stroke

G. Pergola; B. Suchan; B. Koch; M. Schwarz; I. Daum; O. Güntürkün

doi:10.3174/ajnr.A2897

Abstract

SUMMARY: The procedure presented quantitatively assesses thalamic lesions in the chronic phase of an ischemic episode. The structural MR images of 19 patients with ischemia in the thalamus were assessed by radiologic inspection. An independent rater allocated the damage to the thalamic nuclei. The assessments showed 89% accordance with the radiologic inspection (P < .001). This procedure ranks the extent of the damage to thalamic nuclei and accounts for postacute rearrangement of the neural tissue.

ABBREVIATIONS

ILN: intralaminar nuclei of the thalamus
MD: mediodorsal nucleus of the thalamus
MID: midline nuclei of the thalamus
PU: pulvinar
VA: ventral anterior nucleus of the thalamus
VP: ventroposterior nucleus of the thalamus
VLa: ventrolateral nucleus of the thalamus, anterior portion
VM: ventromedial nucleus of the thalamus

The improvement in resolution and sensitivity of MR imaging had a major impact on advancing the knowledge of structure-function relationships in the human brain.¹ However, normalizing brain images of patients onto a standard space defined for functional imaging lacks the resolution required to assess the involvement of small lesioned structures. Additionally, normalization of paraventricular lesions poses significant problems.^1,2 In the postacute phase of ischemic disease, the surviving tissue may shrink ^3,4 and a ventricular enlargement may take place secondary to the ischemic episode.^5,6 These local changes have not been addressed in previous lesion-symptom mapping studies.⁷

The present method serves to quantitatively assess the damage to thalamic substructures, taking these issues into account.

Technique

Nineteen outpatients (11 women and 8 men) of the Klinikum Dortmund (Germany) participated in the study. All patients had ischemia in the paramedian (n = 10, 2 bilateral) or tuberothalamic (n = 9, 2 bilateral) artery, leading to a partially different lesion localization and symptomatic profiles.^5,6 We focused on chronic lesions (the lesion-test interval varied between 1 and 12 years; Table 1).

View this table:

Table 1:

Demographic data of the patients^{^a}

The experimental procedure was approved by the ethics committee of the local Faculty of Medicine. All subjects gave their informed written consent before participation.

For each patient, the following images were acquired within a follow-up examination with a 3T scanner (Signa Hdx 3.0T, GE Healthcare, Milwaukee, Wisconsin): a T1 (fast-spoiled gradient-recalled BRAVO axial sequence: 0.9 × 0.9 × 1.2 mm voxel size; flip angle, 13°; FOV = 24.0; section thickness = 1.2 mm; section spacing = 0 mm; section number = 110) contrasted MR imaging scan; and a T2-weighted image (FLAIR axial sequence: 0.5 × 0.5 × 5.5 mm voxel size; TE = 120 ms; TR = 8000 ms; FOV = 24.0; section thickness = 5.0 mm; section spacing = 0.5 mm; section number = 25).

Lesion Assessment by Radiologic Inspection

Two experienced neurologists evaluated the T1 and T2 scans and divided the patients to 2 different groups (paramedian and tuberothalamic). Only patients for whom the 2 raters expressed the same diagnosis were included in the study. The location of the necrotic tissue was used as a criterion to diagnose which artery underwent ischemia and hence to assign patients to membership.

The affected thalamic substructures were determined for each individual patient by using a stereotactic atlas specific for the thalamus and basal ganglia.⁸ This procedure is a consolidated standard in the field.^9,10 We report as “damaged” the nuclei that both raters judged to be involved in the lesion.

Quantitative Lesion Assessment

The quantitative assessment consisted of individually matching the high-resolution T1-weighted brain images on the same human atlas⁸ used for radiologic inspection and computing the volume loss in each nucleus. This assessment was performed by a third rater.

We used 2 complementary statistical approaches: 1) We tested whether the volume losses obtained could discriminate patients belonging to different groups on the basis of a nonparametric a posteriori statistic (Mann-Whitney U test); 2) we used a clustering algorithm (Statistical Package for the Social Sciences statistics engine, hierarchical clustering; SPSS, Chicago, Illinois) to test whether group membership could be attributed a priori to patients. Results from the automated classifications obtained by clustering were statistically examined by a Pearson χ² test.

We selected 2 relevant and 2 control structures. The first relevant structure receives blood supply mainly from the tuberothalamic artery⁶ (VA-VLa; estimated volume on the atlas, 435 mm³); the second is irrigated mainly by the paramedian artery⁶ (ILN: center median, parafascicular, centrolateral; estimated volume, 498 mm³). The 2 control structures are supplied either by both arteries⁶ (MD; excluding the paralamellar portion belonging to the centrolateral nucleus¹¹; estimated volume, 459 mm³) or by neither of the 2⁶ (VP, supplied by the inferolateral artery; estimated volume, 285 mm³).

In case of patients with bilateral lesions, only the larger lesion was taken into account.

Step-by-Step Procedure

Brain images were anonymized.
Brain images were reoriented to match the reference system of the atlas used⁸ through rigid body transformation in SPM8 (http://www.fil.ion.ucl.ac.uk/spm/software/spm8/). For matching criteria, the anterior and posterior commissures required a coplanar center, and this plane was defined as the dorsoventral 0. The brain image had to be symmetric with respect to the dorsoventral axis in the coronal view.
The gray-scale images were converted, by using MRIcron (http://www.cabiatl.com/mricro/mricron/index.html), to false color images (rainramp palette) to achieve better discrimination of white matter, gray matter, and CSF.
The images were exported in separate axial sections 1 mm away from each other.
The image of the left thalamus was mirrored to match the atlas, which depicts a right thalamus. The nonlesioned side was used as a template to match the lesioned thalamus by using several landmarks (Fig 1): the anterior commissure, the posterior commissure, the internal capsula, the fornix, the borders of the basal ganglia, the ventricles, and the shape of the medial and caudal aspects of the thalamus. The transformations included linear enlargement or shrinking along the anteroposterior and lateromedial axis.
The nonlesioned thalamus was linearly transformed to match the atlas by using the landmarks mentioned above. Contextual to the transformation of the nonlesioned thalamus, the lesioned one was transformed, avoiding direct matching of the lesioned thalamus onto the atlas.
The atlas image was superimposed in transparent mode on the lesioned thalamus without further transformations.
The lesion was manually traced by digitally sampling points on its borders and connecting them through a line (Fig 2).
For each lesioned structure in each section, the surface of the lesioned area (Fig 3) was computed by using the software CellP̂ (Olympus, Japan, http://www.microscopy.olympus.eu/microscopes/Software_cell_P.htm) The same software served to estimate the total volume of the single thalamic structures depicted on the atlas. We took note of the voxel-to-millimeter ratio of each picture, which varied slightly across the sample. The native resolution of the JPEG files was always 200 dpi.
The volume of the necrotic tissue in each structure included in the atlas was computed by averaging the damaged area over the number of sections in the atlas (26) and then multiplying it by the whole length of the thalamus along the dorsoventral axis according to the atlas (22.1 mm).
The row lesion size in cubic millimeters was divided by the estimated volume of the same structures (based on the atlas) to obtain the percentage of volume lost due to ischemia.
Images were reattributed to individual patients.

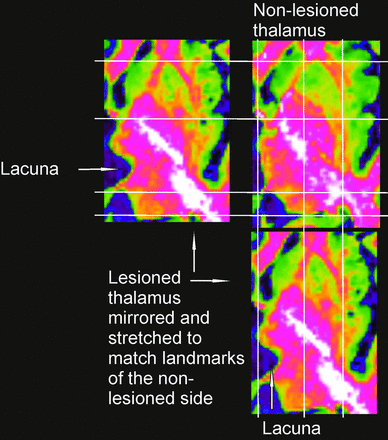

Fig 1.

The lesioned and the nonlesioned thalamus after matching.

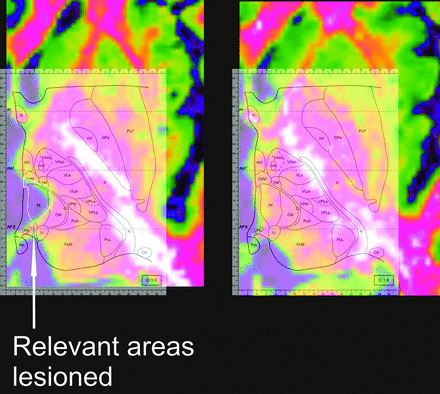

Fig 2.

The lesioned thalamus has been matched to the atlas. The lesion has been manually traced, bordering the ischemic lacuna. PuT indicates putamen; fx, fornix; GPe, globus pallidus pars externa; ic, internal capsula; iml, medullary lamina; MV, medioventral nucleus of the thalamus; mtt, mammillothalamic tract; VAmc, ventral anterior nucleus of the thalamus, magnocellular portion; VApc, ventral anterior nucleus of the thalamus, magnocellular portion; CeM, center median nucleus of the thalamus; VLpv, ventrolateral nucleus of the thalamus, posteroventral portion; Pf, parafascicular nucleus of the thalamus; CM, centromedian nucleus of the thalamus; CL, centrolateral nucleus of the thalamus; VPM, ventral posterior medial nucleus of the thalamus; VPLa, ventral posterior lateral nucleus of the thalamus, anterior portion; VPLp, ventral posterior lateral nucleus of the thalamus, posterior portion; PuA, anteror pulvinar; PuM, medial pulvinar; PuL, lateral pulvinar; Hb, habenular nucleus of the thalamus; Pin, posterior intralaminar nucleus of the non-lemniscal pathway; Li, limitans nucleus of the thalamus; R, reticular nucleus of the thalamus; Cd, caudate nucleus. (Modified from Morel.⁸)

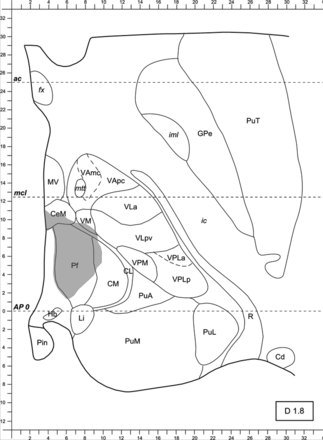

Fig 3.

The image is ready for surface measurement. PuT indicates putamen; fx, fornix; GPe, globus pallidus pars externa; ic, internal capsula; iml, medullary lamina; MV, medioventral nucleus of the thalamus; mtt, mammillothalamic tract; VAmc, ventral anterior nucleus of the thalamus, magnocellular portion; VApc, ventral anterior nucleus of the thalamus, magnocellular portion; CeM, center median nucleus of the thalamus; VLpv, ventrolateral nucleus of the thalamus, posteroventral portion; Pf, parafascicular nucleus of the thalamus; CM, centromedian nucleus of the thalamus; CL, centrolateral nucleus of the thalamus; VPM, ventral posterior medial nucleus of the thalamus; VPLa, ventral posterior lateral nucleus of the thalamus; anterior portion; VPLp, ventral posterior lateral nucleus of the thalamus, posterior portion; PuA, anterior pulvinar; PuM, medial pulvinar; PuL, lateral pulvinar; Hb, habenular nucleus of the thalamus; Pin, posterior intralaminar nucleus of the non-lemniscal pathway; Li, limitans nucleus of the thalamus; R, reticular nucleus of the thalamus; Cd, caudate nucleus. (Modified from Morel.⁸)

Results

Table 2 summarizes the structures lesioned in the present patient sample, according to radiologic examination and quantitative assessment.

View this table:

Table 2:

Results of the lesion assessment^{^a}

Damage to the relevant structures discriminated groups (VA-VLa, U = 19.0, P = .035 [exact, 2-tailed]; ILN, U = 16.0, P = .017 [exact, 2-tailed]), but damage to the control structures did not (MD, U = 31.0, P = .28 [exact, 2-tailed]; VP, U = 35.0, P = .45 [exact, 2-tailed]).

The hierarchical clustering algorithm correctly classified 17 of 19 patients (89%, χ² = 12.3, P < .001) when the relevant variables were used, and 13 of 19 (68%, χ²= 2.56, P = .11) when using the nonrelevant variables.

Figure 4 plots the data used for automated classification.

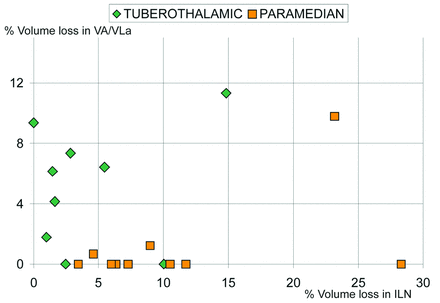

Fig 4.

Scatterplot of the data on which statistical analyses and automated classification were based. The data points lying on the x-axis and belonging to the 2 tuberothalamic patients have been incorrectly classified as paramedian.

Discussion

The current approach is unique because it accounts for postlesion shrinkage by matching the lesioned thalamus to the nonlesioned one. Quantitative assessment yields the information available to radiologic inspections and provides more information about damage to smaller structures, which potentially affect large cortical areas (Table 2). The procedures classified patients group membership with an agreement close to 90%. Control variables did not discriminate between the groups. The fact that damage attributed to VA-VLa and to ILN dissociated the groups (Fig 4), as expected on the basis of the literature,⁶ supports the conclusion that matching onto the template was successful.

The main issue relating to reliability of the present procedure is to what extent MR images allow quantitative measurements of brain damage. One should take into account several sources of uncertainty: 1) the image resolution; 2) the interindividual variability in dimension and localization of the thalamic nuclei; 3) the definition of the lesion borders; and 4) local changes and rearrangements secondary to ischemia.

1) The image resolution was 0.94 × 0.94 × 1.2 mm. The uncertainty on the volumes measured has the dimension of 1 voxel (1.1 mm³). Each measurement involved 2 decisions: determination of the lesion border and determination of the border of the anatomic landmarks considered for matching onto the atlas. The maximal uncertainty on the volume measured can thus be approximated to 2.2 mm³. This source of uncertainty can be considered of limited importance when measuring structures whose size is 2 orders of magnitude higher (ie, >100 mm³).

2) Interindividual variability is usually countered by increasing sample size. The interindividual variability of the thalamus and basal ganglia is lower than cortical variability.⁸ A sample size comparable with that used in many neuroimaging studies (10–20 subjects) should suit the present procedure.

3) Definition of ischemic lesion borders on MR imaging−generated gray-scale images has been found reliable on histologic examination,^12,13 even for small lesions.¹⁴ The procedure likely results in underestimation of the damage.³ Despite this limitation, our procedure provided a statistically reliable allocation of the extent of the damage to specific structures.

4) Local changes and secondary rearrangements due to postlesional alterations may constitute a major source of uncertainty.³ Nonuniform thalamic shrinkage and rearrangement of the landmarks used may bias attempts to quantify the volume loss. The current procedure allows recognition of such issues, during the first match of the lesioned thalamus to the nonlesioned one.

Footnotes

Disclosures: Michael Schwarz—UNRELATED: Board Membership: Schwarz Pharma, Payment for Lectures (including service on speakers bureaus): Orion, Glaxo, Teva.
This work was supported by the Novobrain Programme (Marie Curie FP6, Early-Stage Training).

Indicates open access to non-subscribers at www.ajnr.org

References

1.↵
1. Seghier ML,
2. Ramlackhansingh A,
3. Crinion J,
4. et al
. Lesion identification using unified segmentation-normalisation models and fuzzy clustering. Neuroimage 2008;41:1253–66
CrossRef PubMed
2.↵
1. Stamatakis EA,
2. Tyler LK
. Identifying lesions on structural brain images: validation of the method and application to neuropsychological patients. Brain Lang 2005;94:167–77
CrossRef PubMed
3.↵
1. Kraemer M,
2. Schormann T,
3. Hagemann G,
4. et al
. Delayed shrinkage of the brain after ischemic stroke: preliminary observations with voxel-guided morphometry. J Neuroimaging 2004;14:265–72
CrossRef PubMed
4.↵
1. Kalowska E,
2. Rostrup E,
3. Rosenbaum S,
4. et al
. Acute MRI changes in progressive ischemic stroke. Eur Neurol 2008;59:229–36
CrossRef PubMed
5.↵
1. Carrera E,
2. Bogousslavsky J
. The thalamus and behavior: effects of anatomically distinct strokes. Neurology 2006;66:1817–23
CrossRef
6.↵
1. Schmahmann JD
. Vascular syndromes of the thalamus. Stroke 2003;34:2264–78
Abstract/FREE Full Text
7.↵
1. Karnath HO,
2. Fruhmann BM,
3. Kuker W,
4. et al
. The anatomy of spatial neglect based on voxelwise statistical analysis: a study of 140 patients. Cereb Cortex 2004;14:1164–72
Abstract/FREE Full Text
8.↵
1. Morel A
. Stereotactic Atlas of the Human Thalamus and Basal Ganglia. New York: Informa Healthcare USA; 2007:1–29
9.↵
1. Peterburs J,
2. Pergola G,
3. Koch B,
4. et al
. Altered error processing following vascular thalamic damage: evidence from an antisaccade task. PLoS ONE 2011;6:e21517. Epub 2011 Jun 23
CrossRef PubMed
10.↵
1. Perren F,
2. Clarke S,
3. Bogousslavsky J
. The syndrome of combined polar and paramedian thalamic infarction. Arch Neurol 2005;62:1212–16
CrossRef PubMed
11.↵
1. Jones EG
. The Thalamus. Cambridge, UK: Cambridge University Press; 2007:1184
12.↵
1. Stoffel M,
2. Blau C,
3. Reinl H,
4. et al
. Identification of brain tissue necrosis by MRI: validation by histomorphometry. J Neurotrauma 2004;21:733–40
CrossRef PubMed
13.↵
1. Flossmann E,
2. Redgrave JN,
3. Briley D,
4. et al
. Reliability of clinical diagnosis of the symptomatic vascular territory in patients with recent transient ischemic attack or minor stroke. Stroke 2008;39:2457–60
Abstract/FREE Full Text
14.↵
1. Steffenhagen N,
2. Campos CR,
3. Poppe AY,
4. et al
. Reliability of measuring lesion volumes in transient ischemic attack and minor stroke. Stroke 2010;41:814–16
Abstract/FREE Full Text

Received June 28, 2011.
Accepted after revision August 20, 2011.
