Diffusion and Perfusion MRI to Differentiate Treatment-Related Changes Including Pseudoprogression from Recurrent Tumors in High-Grade Gliomas with Histopathologic Evidence

A.J. Prager; N. Martinez; K. Beal; A. Omuro; Z. Zhang; R.J. Young

doi:10.3174/ajnr.A4218

Abstract

BACKGROUND AND PURPOSE: Treatment-related changes and recurrent tumors often have overlapping features on conventional MR imaging. The purpose of this study was to assess the utility of DWI and DSC perfusion imaging alone and in combination to differentiate treatment-related effects and recurrent high-grade gliomas.

MATERIALS AND METHODS: We retrospectively identified 68 consecutive patients with high-grade gliomas treated by surgical resection followed by radiation therapy and temozolomide, who then developed increasing enhancing mass lesions indeterminate for treatment-related changes versus recurrent tumor. All lesions were diagnosed by histopathology at repeat surgical resection. ROI analysis was performed of the enhancing lesion on the ADC and DSC maps. Measurements made by a 2D ROI of the enhancing lesion on a single slice were recorded as ADC_Lesion and rCBV_Lesion, and measurements made by the most abnormal small fixed diameter ROI as ADC_ROI and rCBV_ROI. Statistical analysis was performed with Wilcoxon rank sum tests with P = .05.

RESULTS: Ten of the 68 patients (14.7%) had treatment-related changes, while 58 patients (85.3%) had recurrent tumor only (n = 19) or recurrent tumor mixed with treatment effect (n = 39). DWI analysis showed higher ADC_Lesion in treatment-related changes than in recurrent tumor (P = .003). DSC analysis revealed lower relative cerebral blood volume (rCBV)_Lesion and rCBV_ROI in treatment-related changes (P = .003 and P = .011, respectively). Subanalysis of patients with suspected pseudoprogression also revealed higher ADC_Lesion (P = .001) and lower rCBV_Lesion (P = .028) and rCBV_ROI (P = .032) in treatment-related changes. Applying a combined ADC_Lesion and rCBV_Lesion model did not outperform either the ADC or rCBV metric alone.

CONCLUSIONS: Treatment-related changes showed higher diffusion and lower perfusion than recurrent tumor. Similar correlations were found for patients with suspected pseudoprogression.

ABBREVIATIONS:

AUC: area under the curve
HGG: high-grade glioma
HR: hazard ratio
NL: normal contralateral white matter
MGMT: O6-methylguanine-DNA methyltransferase
PSR: percentage signal recovery
rCBV: relative cerebral blood volume
ROC: receiver operating characteristic
RT: radiation therapy

Differentiating treatment-related changes from recurrent tumor in treated patients with high-grade glioma (HGG) remains challenging due to overlapping clinical and radiologic features. Both may present with new and/or increasing enhancing mass lesions and fulfill standard response criteria for progression.¹ Radiation therapy (RT) and chemotherapy can increase capillary permeability and alter the blood-brain barrier, leading to increased leakiness of contrast agent and increased contrast enhancement in the absence of tumor.^2,3 At histopathology, these treatment-related changes are characterized by vascular dilation, fibrinoid necrosis, and endothelial damage of normal cerebral vasculature.⁴ In contrast, recurrent tumors are characterized by the presence of tumor cells, increased cellularity, and vascular proliferation.^5⇓–7

Treatment-related changes may be clinically separated into early pseudoprogression and late radiation necrosis on the basis of timing. Pseudoprogression usually develops <6 months after RT with self-limited enhancing lesions that spontaneously stabilize and resolve without any new treatment. Patients who develop pseudoprogression have been described as having improved survival,^3,8⇓–10 due to favorable correlation with methylated O6-methylguanine-DNA methyltransferase (MGMT) promoter status.¹¹ In contrast, radiation necrosis usually occurs >12–18 months after RT, with progressive enhancing lesions that are associated with worsened morbidity. Although pseudoprogression and radiation necrosis are thought to represent distinct clinical and pathophysiologic mechanisms,¹¹ they share many histologic similarities such as inflammatory infiltrates and necrosis, which translate into similar imaging characteristics.⁹

Diffusion and perfusion MR imaging provide physiologic information that is not available with conventional MR imaging. DWI measures the motility of water molecules and alterations in the balance of intracellular and extracellular water restricted by cell membranes and other structures.¹² Areas of diffusion restriction in tumors are correlated with increased tumor cellularity and/or inflammatory processes. DSC MR imaging perfusion is a complementary technique that provides independent information on neoangiogenesis, vascular attenuation, and microvascular leakiness.^2,13 While both techniques have been examined individually in patients with suspected treatment-related changes, few studies have examined the utility of combining these 2 techniques. The purpose of this study was to assess the utility of DWI and DSC perfusion imaging in differentiating treatment-related changes and recurrent tumor. We hypothesized that the combination of DWI and DSC predictors would improve diagnostic accuracy over either alone.

Materials and Methods

Patients

This retrospective study was granted a waiver of informed consent by the hospital institutional review board. In compliance with all Health Insurance Portability and Accountability Act regulations, we queried a hospital data base for patients with histopathologic evidence of HGG according to revised World Health Organization criteria. As summarized in Fig 1, the final patient cohort consisted of 68 consecutive patients with HGG according to the following inclusion criteria: 1) diagnosis of primary glioblastoma or anaplastic astrocytoma, 2) treatment with RT and temozolomide (Temodar), 3) new and/or increasing enhancing mass lesions at follow-up MR imaging suspicious for treatment-related changes versus recurrent tumor, and 4) brain MR imaging, including contrast T1-weighted imaging with DWI and/or DSC perfusion, ≤35 days before subsequent resection of the enhancing mass lesion.

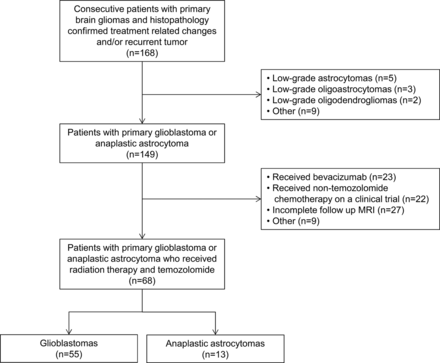

Fig 1.

Description of patient cohort.

The 68 patients consisted of 51 men (75%) and 17 women (25%) with a median age of 54.9 years (range, 22.6–79.4 years). Chart review was performed by an experienced neuro-oncologist blinded to the DWI and DSC results. At initial diagnosis, patients underwent gross total resection of all enhancing tumors (n = 41, 60.3%), subtotal resection of the enhancing tumors (n = 24, 35.3%), or biopsy (n = 3, 4.4%). When available, MGMT promoter status was determined by review of results from real-time polymerase chain reaction amplification. Most patients (n = 66, 97.1%) received partial brain RT to 5940–6000 cGy in 30–33 fractions during 6 weeks. In 2 patients (2.9%), partial brain RT was administered to 4005 cGy in 15 fractions during 3 weeks, which is an equivalent alternative for the elderly or patients with deconditioning.¹⁴ All patients except 1 received concomitant temozolomide, and all patients received adjuvant temozolomide at standard (n = 62, 91.2%) or alternative doses according to an ongoing clinical trial (n = 6, 8.8%).¹⁵ Patients were followed to determine overall survival.

Lesion Diagnosis

In each case, the lesion diagnosis was determined by histopathology at repeat surgical resection. Treatment-related changes were defined as necrotizing treatment effects with the complete absence of tumor. Recurrent tumor was defined as any amount of tumor (ie, pure tumor and tumor admixed with necrotizing treatment effects).

MR Imaging Parameters

MR images were obtained by using 1.5T and 3T magnets (Signa Excite and Discovery 750; GE Healthcare, Milwaukee, Wisconsin). In addition to the DWI and DSC parameters described below, standard T1-weighted, T2-weighted, FLAIR, and triplanar contrast T1-weighted images were obtained. A trained operator (with 2 years' experience in MR imaging postprocessing) blinded to clinical status (eg, symptomatic or asymptomatic) and lesion diagnosis performed DWI and DSC analysis under the direct supervision of a board-certified radiologist with a Certificate of Added Qualification in neuroradiology (with 14 years' experience).

DWI

DWI was performed by using single-shot echo-planar imaging with b-values = 0 and 1000 s/mm². The DWI data were transferred along with the anatomic data to an off-line workstation (Advantage Workstation; GE Healthcare) and were analyzed by using commercial software (FuncTool 4.6; GE Healthcare). ADC maps were calculated, coregistered with the axial contrast T1-weighted images, and then displayed as overlays. The contrast images were inspected, and the section containing the maximum diameter of the enhancing lesion was selected for subsequent ROI analysis. We manually drew a 2D-ROI around the entire enhancing lesion on a single section, while excluding blood vessels and areas of hemorrhagic, cystic, and/or necrotic-appearing change. The ROI was transferred to the ADC map, and the mean value was recorded as ADC_Lesion. In addition, up to 4 small circular ROIs (approximately 0.5 mm²) were manually drawn in the enhancing lesion on the same contrast section, transferred to the ADC map, and adjusted as necessary to target areas with visually low ADC values; the single minimum ADC measurement was recorded as ADC_ROI. This technique has been described as the most accurate and reproducible way to obtain ROI-based measurements.^16⇓–18 The ADC_Ratio was calculated by dividing the ADC_ROI by the ADC_{normal contralateral white matter (NL)} obtained from measuring a similar small circular ROI in the contralateral normal brain.

DSC

DSC was performed by using gradient-echo echo-planar images with TR = 1000–1200 ms, TE = 40–50 ms, matrix = 128 × 128, flip angle = 60°, section thickness = 5 mm, intersection gap = 0, sections = 12–18. Multisection image data were acquired every second for a total of 60 seconds with the contrast injection beginning at 10 seconds. Gadopentetate dimeglumine (Magnevist; Bayer HealthCare Pharmaceuticals, Wayne, New Jersey) was power-injected though a peripheral intravenous catheter at doses standardized by patient body weight (0.2 mL/kg body weight, to a maximum of 20 mL) at 2–5 mL/s and immediately followed by a 20-mL saline flush at the same rate. No preload contrast was administered.

The DSC data were transferred along with the anatomic data to an off-line workstation (Advantage Workstation) and were analyzed by using commercial software (FuncTool 4.6). T2*-weighted signal intensity–time curves were derived on a voxel-by-voxel basis. Post hoc correction for leakage was performed by using γ-variate curve fitting to approximate the curve without recirculation and leakage.¹⁹ Cerebral blood volume maps were calculated, coregistered with the contrast T1-weighted images, and displayed as overlays. ROI analysis for CBV was performed in a manner similar to that of ADC. A single contrast section containing the maximum diameter of the enhancing lesion was selected, and an ROI was drawn around the entire enhancing lesion. Areas of hemorrhage, blood vessels, susceptibility artifacts, and cystic or necrotic change were excluded. The control CBV_NL was initially placed in the normal white matter contralateral to the enhancing lesion. The relative CBV of the lesion (rCBV_Lesion) was calculated by dividing the CBV_Lesion, drawn around the entire enhancing lesion on a single section, by the CBV_NL. Next, 4 small (approximately 0.5 mm²) circular ROIs were drawn in the enhancing lesion, transferred to the CBV map, adjusted as necessary to target the areas with the visually highest CBV, and the ROI with the maximal CBV abnormality was measured and selected as the CBV_ROI. The location of the small ROI for CBV was often the same as the location of the small ROI for ADC because the 2 were placed to target different biologic processes. The CBV_ROI was divided by the CBV_NL to yield the relative CBV_ROI (rCBV_ROI). The signal intensity–time curve of the CBV_ROI was also used to determine S₀ = precontrast baseline signal intensity, S_min = minimum signal intensity at the peak of contrast bolus, and S₁ = end signal intensity at 60 seconds. These values were then used to calculate the percentage signal recovery (PSR_ROI) = (S₁ − S_min)/(S₀ − S_min). PSR_ROI is a measure of permeability influenced by leakage of contrast and the size of the extravascular space,²⁰ with lower PSR reflecting higher permeability.

Statistical Analysis

Comparisons between treatment-related change and recurrent tumor groups were performed by using Wilcoxon rank sum tests. Optimal threshold values for ADC_Lesion and rCBV_Lesion were obtained by area under the curve (AUC) analysis derived from the receiver operating characteristic (ROC) curves and maximizing the sum of sensitivity and specificity. Overall survival analysis was performed by fitting a univariate Cox model to report the hazard ratio (HR) with P values. Multivariate analysis was not performed due to the small number of events (treatment-related changes). Statistical significance was set at P = .05.

To specifically examine patients with possible pseudoprogression, we performed an analysis for the subset of patients who developed new and/or increasing enhancing lesions <6 months (<180 days) after completion of RT. Similar Wilcoxon rank sum tests and ROC and AUC analyses were performed.

Results

The cohort consisted of patients with HGG with glioblastoma (n = 55, 80.9%) and anaplastic astrocytoma (n = 13, 19.1%). MGMT promoter status was known for 31 patients (46%), with more unmethylated (n = 19, 61%) than methylated (n = 12, 39%) tumors. During follow-up, all patients developed a new and/or increasing enhancing lesion suspicious for recurrent tumor or treatment-related change and underwent repeat surgery. The mean interval from the end of RT to the repeat surgery was 6.1 months (range, 0.4–40.4 months), with patients undergoing gross total resection of the entire enhancing lesion (n = 38, 55.9%) or subtotal resection of the enhancing lesion (n = 30, 44.1%). Subsequent histopathology revealed treatment-related changes (n = 10, 14.7%) or recurrent tumor (n = 58; 85.3%, consisting of n = 19 tumor only and n = 39 tumor admixed with necrotizing treatment effects). Of the patients with treatment-related changes, most had gross total resections (n = 6, 60%). Due to evolving MR imaging standards of care during the study period, all 68 patients underwent DWI and most patients (n = 41, 60.3%) underwent both DWI and DSC.

DWI

Diffusion analysis showed higher ADC_Lesion in treatment-related change (P = .003). An ADC_Lesion threshold of ≤0.00149 mm²/s to optimize both sensitivity and specificity in declaring tumor had 73.7% sensitivity, 70% specificity, and AUC = 0.779. ADC_Lesion ≤0.0016 mm²/s had 94.7% sensitivity and 50% specificity to maximize sensitivity for tumor, while ADC_Lesion ≤0.00139 mm²/s had 52.6% sensitivity and 90% specificity to maximize specificity. ROC curves are shown in Fig 2.

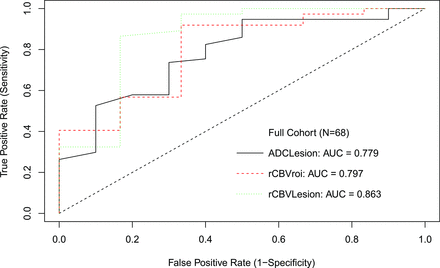

Fig 2.

ROC curve for all patients.

DSC

For perfusion, both rCBV_Lesion (P = .003) and rCBV_ROI (P = .011) were lower in treatment-related change. An optimized rCBV_Lesion threshold of ≥1.27 had 86.5% sensitivity and 83.3% specificity with AUC = 0.863 to declare tumor. This AUC was not significantly better than the best AUC derived from DWI, with P = .36. With a commonly applied threshold ≥1.75,^9,21,22 rCBV_Lesion had 56.8% sensitivity and 83.3% specificity. An optimized rCBV_ROI of ≥1.74 showed 91.9% sensitivity and 66.7% specificity with AUC = 0.797. Results are summarized in Table 1 and Fig 3.

View this table:

Table 1:

Diffusion and perfusion results in all patients^{^a}

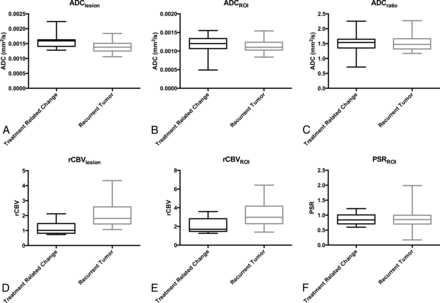

Fig 3.

Box-and-whisker plots for parameters in Table 1.

DWI and DSC

An analysis was performed for the subset of patients (n = 41) with both DWI and DSC data. Using ADC_Lesion ≤0.00149 mm²/s and rCBV_Lesion ≥1.27 to predict recurrent tumor, we found 51.2% sensitivity (21/41 recurrent tumors correctly identified) and 100% specificity (8/8 treatment-related changes correctly identified). This combined model was not significantly better than rCBV_Lesion alone.

Pseudoprogression

For patients (n = 51) who developed worsening lesions <6 months after RT, histopathology revealed pseudoprogression in 8 (15.7%) patients and recurrent tumor in 43 (84.3%) patients. Due to low numbers of known MGMT status (n = 21/51, 41.2%), particularly in the pseudoprogression group (n = 3), further stratification by MGMT status was not performed.

All patients had DWI available for analysis, and most (n = 33, 64.7%) had both DWI and DSC available, though only half of the patients with pseudoprogression (n = 4) had DSC. For DWI, ADC_Lesion was higher in pseudoprogression (P = .001), while ADC_ROI and ADC_Ratio were not different (P > .12). The ADC_Lesion had an AUC of 0.839, and a threshold of >0.0016 mm²/s showed 63% specificity and 95% sensitivity. Results are summarized in Table 2 and Fig 4, and ROC curves are shown in Fig 5.

View this table:

Table 2:

Diffusion and perfusion results in patients <6 months from RT^{^a}

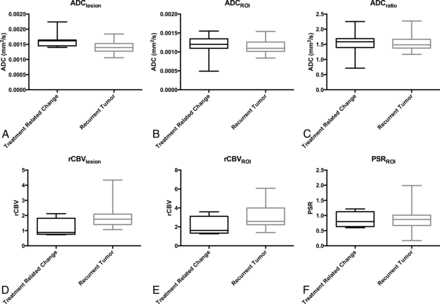

Fig 4.

Box-and-whisker plots for parameters in Table 2.

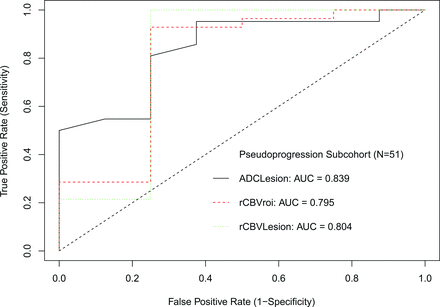

Fig 5.

ROC curve for patients <6 months after RT.

For DSC, rCBV_Lesion (P = .028) and rCBV_ROI (P = .032) were lower for pseudoprogression. The AUC for rCBV_Lesion was 0.804, and for rCBV_ROI, it was 0.795. The best threshold for rCBV_Lesion to predict pseudoprogression was <1.07 with 75% specificity and 100% sensitivity, and for rCBV_ROI, it was <1.74 with 75% specificity and 92.9% sensitivity.

A subanalysis was performed to evaluate a combined DWI and DSC model for the patients at risk for pseudoprogression. When using ADC_Lesion ≤0.0016 and rCBV_Lesion ≥1.07 to predict recurrent tumor, we found 93.1% sensitivity (21/41 recurrent tumors correctly identified) and 83.3% specificity (5/6 treatment-related changes correctly identified). This finding was not significantly better than rCBV_Lesion alone. Representative T1-weighted imaging, DWI, ADC maps, and rCBV maps for pseudoprogression and recurrent tumors are shown in Figs 6 and 7.

Fig 6.

Pseudoprogression. Six months following RT with concomitant and adjuvant temozolomide, this patient with glioblastoma developed a new heterogeneously enhancing mass lesion in the right posterior temporal lobe on a contrast T1-weighted image (A) with no diffusion restriction on DWI (B) or ADC (C). ADC_Lesion = 0.00142 mm²/s. An rCBV map overlaid on a contrast T1-weighted image (D) shows no increase in perfusion. rCBV_Lesion = 1.41. Repeat surgery confirmed treatment-related changes.

Fig 7.

Recurrent tumor. Five months later after RT with concomitant and adjuvant temozolomide, this patient with glioblastoma developed a new heterogeneously enhancing mass lesion in the left occipital lobe on a contrast T1-weighted image (A) with heterogeneously increased signal on DWI (B) and decreased ADC (C). ADC_Lesion = 0.00123 mm²/s. rCBV map (D) shows hyperperfusion. rCBV_Lesion = 2.78. Repeat surgery confirmed recurrent tumor.

Survival

For all patients, the predictors of overall survival were rCBV_ROI (HR = 1.32, P = .019) and PSR_ROI (HR = 0.204, P = .036). For the subset of patients with suspected pseudoprogression presenting with enhancing lesions <6 months after completing RT, the predictors of overall survival were ADC_Lesion (HR = 5.563, P = .047), rCBV_ROI (HR = 1.557, P = .009), and PSR_ROI (HR = 0.166, P = .04). The other diffusion and perfusion metrics were not significant (P > .10).

Discussion

We found higher diffusion and lower perfusion values in treatment-related changes than in recurrent tumor in patients with HGGs as confirmed by histopathology. These results probably reflect the lower cellularity and vascularity of treatment-related changes, respectively, and suggest that DWI and DSC are useful tools in discriminating treatment-related changes from recurrent tumor. DSC outperformed DWI in predicting treatment-related changes, while the combination of DSC and DWI yielded higher specificity at the expense of lowered sensitivity.

DWI has been shown to be helpful in determining treatment response, with several studies describing higher mean ADC values or ADC ratios than those in recurrent tumors.^12,23 Other articles have applied ADC histogram analysis²⁴ and 3-layer patterns of ADC analysis,²⁵ though these techniques are not commercially available and have not been incorporated into clinical practice. ADC may be decreased with treatment-related changes, possibly due to cellular inflammatory factors and abundant polymorphonuclear lymphocytes.^23,25 Our results suggest that these inflammatory-related decreases in ADC are less marked than those that occur in recurrent tumors due to high cellularity.

DSC has also been described as useful for distinguishing treatment-related changes from recurrent tumor.^9,26⇓–28 Alterations in perfusion parameters may occur due to inflammation and vascular changes, including vascular elongation, aneurysmal formation, and proliferation of endothelial cells in response to radiation injury. In patients with glioblastoma with suspected radiation necrosis at a mean of >300 days after RT, Barajas et al²⁶ found lower rCBV (P < .01) and higher PSR (P < .05) in the necrosis group. In patients with glioblastoma with suspected pseudoprogression at a mean of 133 days after RT, Young et al⁹ reported similar results with lower rCBV (P = .009) and higher PSR (P = .039). These studies indicate that despite possible differences in the underlying pathophysiologic processes for early pseudoprogression and late radiation necrosis and the very different clinical courses and implications, the 2 entities share common imaging features along a spectrum of treatment-related changes—and that similarities on conventional scans may also translate into similarities on advanced MR imaging by using DSC as well as DWI.

Few studies have examined the combination of DWI and DSC imaging for distinguishing treatment-related changes and recurrent tumor. In 38 patients with primary brain tumor, Fink et al²⁹ reported that rCBV (AUC = 0.917, P < .001) outperformed ADC_Ratio (AUC = 0.726, P = .035) in determining postradiation injury. Patients in their study had a mix of HGGs (n = 20) and low-grade gliomas (n = 17) as well as an ependymoma, however, who received a variety of chemotherapy agents and inconsistently underwent RT (n = 6, no RT). In addition, their median interval for clinical and radiological follow-up was 17.6 months with a wide range (1.2–164.5 months), and only 35% were confirmed by histopathology. A small study of 8 patients with glioma (n = 7, HGG) by Bobek-Billewicz et al,³⁰ also reported lower rCBV in radiation injury (median, 13 months; range, 3–70 months) with insignificant results for ADC probably due to their small cohort.

We used histopathology as the reference standard against which the imaging results were tested. Because all patients in this study underwent gross total or subtotal resections rather than biopsies, the likelihood of sampling error was lessened. The power of our study may have been affected by the fewer patients (14.7%) determined to have treatment-related changes at repeat surgery. This number probably reflects our definition of recurrent tumor as any amount of tumor at histopathologic analysis, with treatment-related changes having a relatively conservative definition as the complete absence of any identifiable tumor. We did not attempt to stratify by fraction of tumor versus fraction of treatment-related changes because there is no standard definition of how little tumor is permissible to diagnose treatment-related changes rather than recurrent tumor. We also did not attempt to distinguish active (eg, mitotic figures, vascular proliferation, necrosis with pseudopalisading) and inactive (ie, quiescent) tumor. The literature definition of treatment-related changes is inconsistently described as “necrosis without evidence of tumor,”³¹ “pure treatment-related necrosis,”³² “≤20% … neoplasm,”²⁷ “no to minimal identifiable tumor,”¹⁰ “<1% viable tumor,”²⁰ or simply “at pathologic analysis.”³³ Despite these limitations, histopathology remains the reference standard and is often considered preferable to clinical and radiologic definitions, which are more subjective and influenced by patient signs, symptoms, medications, and follow-up.

Both DWI and DSC may be useful in differentiating treatment-related changes from recurrent tumor, with DSC performing slightly better as a predictor. We found increased specificity when both ADC_Lesion and rCBV_ROI were applied in a combined model for all patients, though the increase in specificity (100%) was accompanied by a decrease in sensitivity (51%). While the clinical dilemma is usually to accurately identify treatment-related changes, for which the high specificity should be helpful, the decrease in sensitivity for only an incremental increase in specificity limits the usefulness of combining the 2 metrics. For the subgroup of patients at <6 months after RT at risk for pseudoprogression, the specificity and sensitivity when using both ADC_Lesion and rCBV_ROI were slightly better (but not significantly better) than rCBV_ROI alone. Compared with DSC, DWI has the distinct advantage of widespread adoption into routine imaging protocols, as well as being a rapid-acquisition, noncontrast technique with highly reproducible results. We, therefore, suggest that whenever possible, patients with suspected treatment-related changes should undergo both DSC and DWI.

A few potential limitations were encountered. First, this was a retrospective study in which only 60.3% had both DWI and DSC imaging, which may have decreased our evaluation of the combined diffusion and perfusion model. In addition, fewer patients had treatment-related changes, and only 4 of 8 patients with pseudoprogression had DSC data available for analysis. Despite the small sample sizes, we detected significant differences in diffusion and perfusion metrics and suggest that DSC may be a useful technique for detecting pseudoprogression. Second, there was some heterogeneity in MR imaging scanner field strengths and contrast injection rates that may have affected DSC perfusion time curves, though such variability was minimized by standardized scan parameters, contrast dose, and postprocessing techniques. Third, there may have been a clinical bias to preferentially recommend surgery for patients with large enhancing lesions, mass effect, and/or worsening signs/symptoms. Patients who have treatment-related changes, particularly pseudoprogression, are more likely to be asymptomatic⁸ and therefore more likely to undergo follow-up rather than repeat surgery. While this outcome may have decreased the power of our results, we still found significant results for both DWI and DSC. Fourth, <50% of our patients had known MGMT status, which was still emerging as the standard of care during the time of the study. Because studies have shown positive correlations between MGMT status and pseudoprogression,^8,11 this correlation is an attractive area for future study. Fifth, we used two 2D-ROI measurements that encompassed the entire lesion and targeted the areas of maximal abnormality. These techniques are rapid, reproducible, robust by using commercial software, and are commonly used in clinical practice.^17,18 Although some authors have implemented 3D volumetric measurements,³⁴ these tools often require additional technical expertise and are not widely available.

Conclusions

DWI and DSC may be helpful in differentiating treatment-related changes and recurrent HGGs. We found that DSC may outperform DWI alone and in combination to predict treatment-related changes as distinguished from recurrent tumor. We suggest that both DSC and DWI be used to improve specificity.
