Intravoxel Incoherent Motion MR Imaging in the Differentiation of Benign and Malignant Sinonasal Lesions: Comparison with Conventional Diffusion-Weighted MR Imaging

Z. Xiao; Z. Tang; J. Qiang; S. Wang; W. Qian; Y. Zhong; R. Wang; J. Wang; L. Wu; W. Tang; Z. Zhang

doi:10.3174/ajnr.A5532

Abstract

BACKGROUND AND PURPOSE: Intravoxel incoherent motion is a promising method for the differentiation of sinonasal lesions. This study aimed to evaluate the value of intravoxel incoherent motion in the differentiation of benign and malignant sinonasal lesions and to compare the diagnostic performance of intravoxel incoherent motion with that of conventional DWI.

MATERIALS AND METHODS: One hundred thirty-one patients with histologically proved solid sinonasal lesions (56 benign and 75 malignant) who underwent conventional DWI and intravoxel incoherent motion were recruited in this study. The diffusion coefficient (D), pseudodiffusion coefficient (D*), and perfusion fraction (f) values derived from intravoxel incoherent motion and ADC values derived from conventional DWI were measured and compared between the 2 groups using the Student t test. Receiver operating characteristic curve analysis, logistic regression analysis, and 10-fold cross-validation were performed to evaluate the diagnostic performance of single-parametric and multiparametric models.

RESULTS: The mean ADC and D values were significantly lower in malignant sinonasal lesions than in benign sinonasal lesions (both P < .001). The mean f value was higher in malignant lesions than in benign lesions (P = .003). Multiparametric models can significantly improve the cross-validated areas under the curve for the differentiation of sinonasal lesions compared with single-parametric models (all corrected P < .05 except the D value). The model of D+f provided a better diagnostic performance than the ADC value (corrected P < .001).

CONCLUSIONS: Intravoxel incoherent motion appears to be a more effective MR imaging technique than conventional DWI in the differentiation of benign and malignant sinonasal lesions.

ABBREVIATIONS:

AUC: area under the curve
D: diffusion coefficient
D*: pseudodiffusion coefficient
f: perfusion fraction
IVIM: intravoxel incoherent motion
ROC: receiver operating characteristic.

The sinonasal area may contain a wide spectrum of benign and malignant tumors and tumorlike lesions of epithelial, mesenchymal, neural/neuroectodermal, or hematopoietic origins,¹ composing approximately 3% of all head and neck tumors.^2⇓–4 The clinical presentations of sinonasal lesions are often nonspecific.⁵ Patients with malignant sinonasal tumors often have an overall poor prognosis and generally require radiation therapy and chemotherapy as well as surgical resection,⁶ whereas patients with benign lesions, such as polyps, often undergo complete surgical resection or clinical follow-up without surgery.⁷ Thus, the differentiation of benign and malignant sinonasal lesions is of great importance for therapeutic decisions and prognosis. Cross-sectional imaging techniques, such as CT and MR imaging, play an important role in the differentiation of sinonasal lesions. Nevertheless, the morphologic imaging features of benign and malignant sinonasal lesions are often nonspecific and overlap.^4,8,9

Conventional diffusion-weighted MR imaging with the measurement of apparent diffusion coefficient values may aid in the discrimination of malignant and benign lesions in the head and neck and the sinonasal area.^9⇓⇓–12 However, some overlap of ADC values was also observed.^{10,13⇓–15} It has been documented that microvascular flow through the complex capillary network generates a “pseudodiffusion” effect known as intravoxel incoherent motion (IVIM).^13,14 According to IVIM analysis, both tissue diffusivity and microcapillary perfusion can be quantified separately by fitting the MR signal acquired at different b-values to a biexponential model.¹⁵ Consequently, 3 parameters can be obtained from IVIM, including D, D*, and f, which represent the pure diffusion coefficient, pseudodiffusion coefficient, and perfusion fraction, respectively. Recently, IVIM MR imaging has emerged as a potential new method for the differentiation of head and neck tumors and the prediction of tumor responses to treatment.^{16⇓⇓⇓⇓⇓–22}

However, to the best of our knowledge, no studies in differentiating benign and malignant sinonasal lesions using IVIM have been performed. In this study, we aimed to investigate IVIM as a tool for distinguishing benign and malignant sinonasal lesions and to compare the differential diagnostic performance of IVIM with conventional DWI in sinonasal lesions.

Materials and Methods

Study Population

The institutional review board of Eye & ENT Hospital of Fudan University approved this retrospective study, and the requirement for patient informed consent was waived due to the retrospective nature of this study. One hundred thirty-one consecutive patients with sinonasal solid masses were recruited from May 2015 to March 2017. All masses were confirmed by surgery/biopsy and histopathology. Patients who previously had a history of treatment or recurrence were excluded.

MR Imaging Techniques

MR imaging examinations were performed on a 3T MR imaging scanner (Magnetom Verio; Siemens, Erlangen, Germany) using a 12-channel head coil. Conventional MR images were obtained; then DWI was performed using a single-shot echo-planar imaging sequence with a bipolar scheme along all 3 orthogonal axes to obtain isotropic DWI. Imaging parameters were as follows: TR/TE = 5200/83 ms, number of averages = 2, acquisition matrix = 120 × 120, FOV = 230 mm, slices = 5, slice thickness = 5 mm, parallel imaging acceleration factor = 2. Eleven different b factors ranging from 0 to 1000 s/mm² were used (b = 0, 50, 100, 150, 200, 250, 300, 350, 400, 800, and 1000 s/mm²). The total scan time was 6 minutes 39 seconds.

Image Processing and Analysis

The conventional monoexponential DWI model is mathematically expressed by the equation S_b / S₀ = exp (−b × ADC), where S_b and S₀ are the signal intensity acquired with the diffusion gradient factors of b and 0, respectively. In this study, MR signal intensities of b=0 and 1000 s/mm² were used to calculate the ADC.²³ DWI processing was performed on an off-line workstation (Verio; Siemens). The IVIM model is mathematically expressed with the following equation^13,14: where S_b and S₀ are the signal intensities in the diffusion gradient factors of b and 0, respectively,^17,18 f is the perfusion fraction related to microcirculation, D is the diffusion coefficient representing pure molecular diffusion (the slow component of diffusion), and D* is the pseudodiffusion coefficient representing incoherent microcirculation within the voxel (perfusion-related diffusion or the fast component of diffusion). Three parameters, D, D*, and f, can be derived from IVIM by fitting the biexponential curve using a nonlinear least-squares technique. Because D* is notably greater than D, its influence on signal decay can be neglected when the b-value is >200 s/mm². In that case, Equation 1 can be simplified and the estimation of D can be obtained using only b-values of >200 s/mm², with a simple linear fitting Equation 2: With the D value determined using Equation 2, f and D* values can be calculated using a nonlinear regression algorithm based on Equation 1. IVIM processing was conducted by using Matlab (Version 7.9; MathWorks, Natick, Massachusetts).

The ADC value derived from conventional DWI, along with D, D*, and f values that were derived from IVIM, was measured independently by 2 radiologists (readers 1 and 2 with 10 and 7 years of experience in head and neck imaging, respectively) who were blinded to clinical and histopathologic data. The polygonal ROIs (mean area, 52.93 ± 37.82 mm²; range, 26–731 mm²) were drawn along the outer margin of the lesion on the largest slice of the corresponding parameter maps. Obvious necrotic, cystic, calcification, or hemorrhagic regions were avoided to focus on the solid portion of the tumor as much as possible by referring to T2-weighted and contrast-enhanced T1-weighted images. The measurements made by readers 1 and 2 were used to evaluate the interreader reproducibility. To evaluate intrareader reproducibility, these measurements were repeated by reader 1, with a minimum washout period of at least 1 month. The average of the 3 measurement results of readers 1 and 2 was used for the statistical analysis.

Statistical Analysis

All ADC and IVIM parameters of sinonasal lesions are presented as mean ± SD. The inter- and intrareader reproducibility for ADC and IVIM parameter measurements were evaluated using the intraclass correlation coefficient with 95% confidence intervals. An intraclass correlation coefficient of >0.75 was considered indicative of good agreement.

A simple linear regression analysis was performed to calculate the Pearson correlation coefficient between the patients' ages and conventional DWI and IVIM parameters of the individual lesions. A correlation coefficient (r) of 0.75–1.00 indicated very good–to-excellent correlation; 0.50–0.74, moderate-to-good correlation; 0.25–0.49, fair correlation; and ≤0.24, little or no correlation.

The mean ADC, D, D*, and f values were compared between benign and malignant sinonasal lesions using the Student t test. The receiver operating characteristic (ROC) analysis curves with 10-fold cross-validation were obtained to determine the optimal cutoff value for significant parameters for differentiating benign and malignant sinonasal lesions. The multivariate logistic regression models, including 2 or 3 of these significant parameters, were generated. For each logistic regression model, cross-validation was performed with a 10-fold procedure. The optimal cutoff value was determined as the point in the upper left-hand corner that maximized the sum of the sensitivity and specificity. The area under the curve (AUC), sensitivity, specificity, accuracy, positive predictive value, and negative predictive value of the single and combined imaging parameters for differential diagnosis were calculated. A Bonferroni correction was used to correct for multiple comparisons.

Statistical analyses were performed in Excel 2013 (Microsoft, Redmond, Washington), MedCalc statistical software (Version 15.2.2; MedCalc Software, Mariakerke, Belgium), and R, Version R 2.15.3 (R Project for Statistical Computing, http://www.r-project.org).²⁴ P values < .05 were considered significant.

Results

A total of 131 patients, including 56 patients with benign sinonasal lesions and 75 with malignant sinonasal lesions, were enrolled in this study. Of these patients, 48 were female and 83 were male. The age of patients ranged from 16 to 79 years, with a mean age of 48.67 years. The demographics and histology of benign and malignant sinonasal lesions are summarized in Table 1. Poor correlations were found between the patients' ages and conventional DWI and IVIM parameters, with r ranging from −0.103 to 0.137 (all P > .05, Fig 1)

View this table:

Table 1:

Demographics and histology of benign and malignant sinonasal lesions^{^a}

Fig 1.

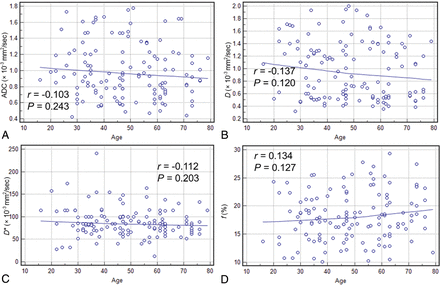

Scatterplots depicting the correlations between the patients' ages and ADC values (A), the patients' ages and D values (B), the patients' ages and D* values (C), and the patients' ages and f values (D) for all sinonasal lesions.

As shown in Table 2, excellent inter- and intrareader agreement were achieved in the measurement of ADC and IVIM parameters. The mean ADC, D, D*, and f values of benign and malignant sinonasal lesions are shown in Fig 2 and Table 3. The mean ADC and D values were significantly lower in malignant sinonasal lesions than in benign sinonasal lesions (both P < .001). The mean f value of malignant sinonasal masses was higher than that of benign sinonasal masses (P = .001). There was no significant difference in the mean D* value between the 2 groups (P > .05) (Figs 3 and 4).

View this table:

Table 2:

Inter- and intrareader reproducibility for ADC, D, D*, and f measurements^{^a}

Fig 2.

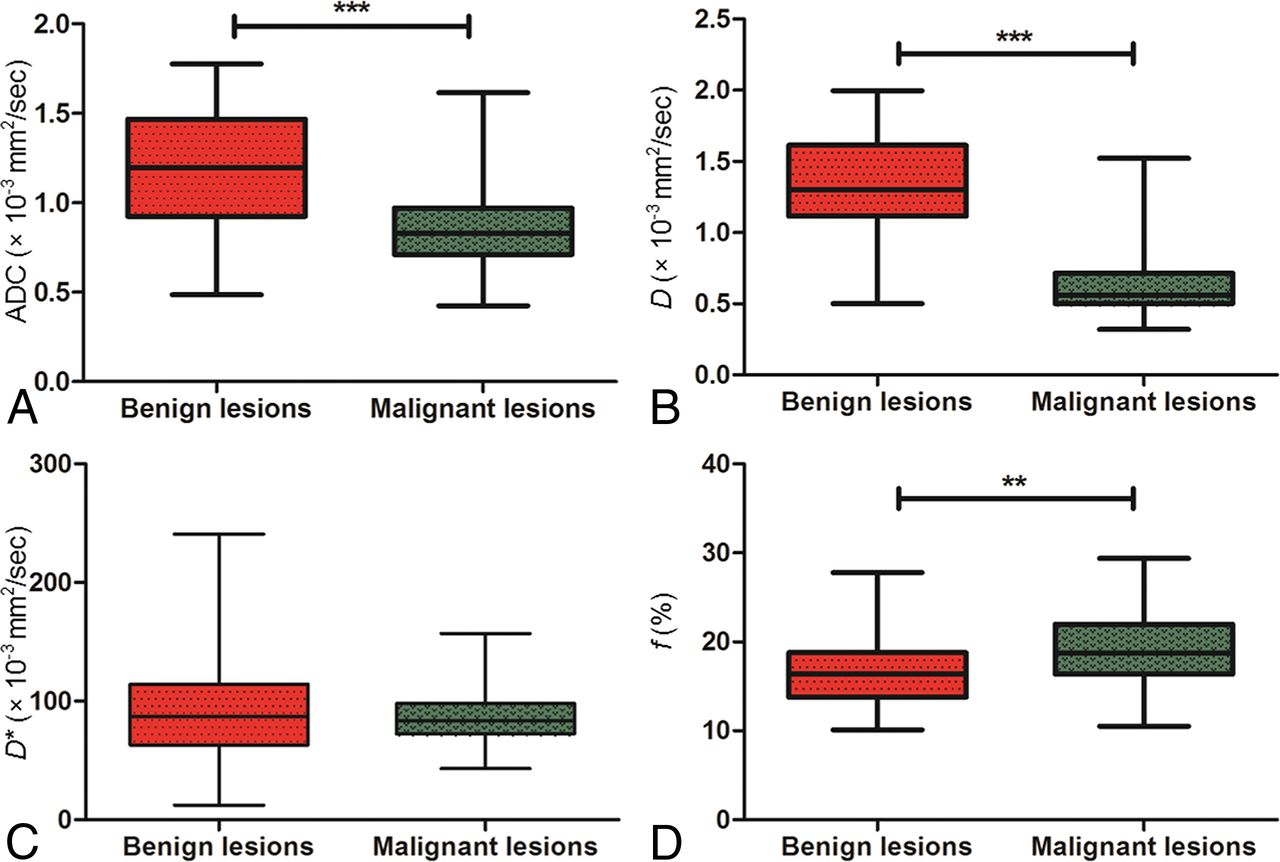

Comparisons of the mean ADC (A), D (B), D* (C), and f (D) values between benign and malignant sinonasal lesions using the Student t test. Triple asterisks indicate P < .001; double asterisks, P < .01.

View this table:

Table 3:

Comparisons of ADC, D, D*, and f values between benign and malignant sinonasal lesions^{^a}

Fig 3.

Inverted papilloma in a 71-year-old man. A mass was predominantly located in the right ethmoid sinus with involvement of the right nasal cavity (blue arrow), demonstrating heterogeneous hypo- (necrosis) to isointensity (tumor cells) on T1WI (A), iso- (tumor cells) to hyperintensity (necrosis) on T2WI (B), and heterogeneously intense enhancement on contrast-enhanced T1WI (C), compared with normal-appearing gray matter. The mass showed isointensity on the DWI (blue arrow) (D) compared with normal-appearing gray matter. On the ADC map (E), the mass showed a slightly high signal intensity with an ADC value of 1.425 × 10⁻³ mm²/s (red polygonal ROI). On IVIM images, the mass appeared obviously iso- to hyperintense on the D map (F) with a D value of 0.871 × 10⁻³ mm²/s and appeared isointense on the D* (G) and f maps (H) with D* and f values of 61.048 × 10⁻³ mm²/s and 25.651%, respectively (red polygonal ROIs). Hematoxylin-eosin staining (I) confirmed the mass as an inverted papilloma (original magnification, ×100; scale bar, 250 μm).

Fig 4.

Squamous cell carcinoma in a 53-year-old man. A mass was predominantly located in the left ethmoid sinus with involvement of the ipsilateral orbit, nasal cavity, and sphenoid sinus (blue arrow), demonstrating heterogeneous hypo- (necrosis) to isointensity (tumor cells) on T1WI (A), iso- (tumor cells) to hyperintensity (necrosis) on T2WI (B), and heterogeneously intense enhancement on contrast-enhanced T1WI (C), compared with normal-appearing gray matter. The mass showed heterogeneously hypo- to hyperintensity on the DWI (blue arrow) (D) compared with normal-appearing gray matter. On the ADC map (E), the mass showed hypointensity with an ADC value of 0.872 × 10⁻³ mm²/s (red polygonal ROI). On IVIM images, the mass appeared dramatically hypointense on the D map (F), with a D value of 0.533 × 10⁻³ mm²/s, hypo- to isointense on the D* map (G), and iso- to hyperintense on the f map (H), with D* and f values of 77.473 × 10⁻³ mm²/s and 22.966%, respectively (red polygonal ROIs). Hematoxylin-eosin staining (I) confirmed the mass as a squamous cell carcinoma (original magnification, × 200; scale bar, 50 μm).

The diagnostic performance of ADC, D, and f values for differentiation of benign and malignant sinonasal lesions is demonstrated in Table 4 and Fig 5. From the ROC analysis with 10-fold cross-validation, the largest cross-validated AUC was obtained for D compared with ADC and f (AUC for D versus ADC = 0.899 versus 0.735, corrected P = .009; AUC for D versus f = 0.899 versus 0.656, corrected P < .0001; AUC for ADC versus f = 0.735 versus 0.656, corrected P = .08) in the discrimination of benign and malignant sinonasal lesions. No significant differences were found in the cross-validated AUC among different multiparametric models, including ADC+D, ADC+f, D+f, ADC+D+f (all corrected P > .05), and the highest AUC was obtained for the model of ADC+D+f, followed by the models of D+f, ADC+D, and ADC+f. Compared with single-parametric models (except D), multiparametric models can significantly improve the cross-validated AUCs for the differentiation of benign and malignant sinonasal lesions (all corrected P < .05). Additionally, the combination of D and f values derived from IVIM can provide a better diagnostic performance than the ADC value (corrected P < .001).

View this table:

Table 4:

Diagnostic performance of single parameters (ADC, D and f) and combined parameters (ADC+f, ADC+D, D+f, and ADC+D+f) for the differentiation of benign and malignant sinonasal lesions using receiver operating characteristic curve analysis with 10-fold cross-validation

Fig 5.

ROC curves with 10-fold cross-validation of single- parameter models (including ADC, D, and f) and multiparametric models (including ADC+f, ADC+D, D+f, and ADC+D+f) in the contrast-enhancing lesions for differentiating benign from malignant sinonasal lesions.

Discussion

Our findings showed that quantitative analysis of conventional DWI and IVIM parameters could be helpful in discriminating benign and malignant sinonasal lesions. Additionally, compared with the ADC value derived from conventional DWI, IVIM parameters (especially the combination of D and f values) can significantly improve the diagnostic performance for differentiating solid sinonasal lesions.

The ADC value quantitating free-water molecule motion within a tissue correlates with tumor cellularity.^15,23 In the present study, the mean ADC value of malignant sinonasal lesions was significantly lower than that of benign lesions; this finding was in accordance with the results from previous studies.^{9⇓⇓–12,25} Histopathologically, malignancies often exhibit high cellularity, effectively restricting the water molecule diffusion of tumors.²⁵ Moreover, the present patient cohort included 44 patients with small round blue cell tumors, including lymphoma, undifferentiated carcinoma, malignant melanoma, neuroendocrine carcinoma, olfactory neuroblastoma, rhabdomyosarcoma, and so forth. This heterogeneous group of malignant neoplasms shares common histologic characteristics, including a relatively small cell volume, deep nuclear staining, and high tumor nucleus/cytoplasm ratios, resulting in significantly low ADC values.²⁶ Hence, our study revealed that ADC could be a useful imaging parameter for the differentiation of benign and malignant sinonasal lesions. Nevertheless, ADC is derived from conventional DWI with an assumption that the water molecule diffusion is a random motion that follows Gaussian distribution and is calculated by a simple monoexponential decay fitting with 2 b-values. In fact, the measured diffusion signals in living tissues were not simply influenced by the motion of water molecules but also by the perfusion of blood microcirculation at low b-values. Therefore, ADC values obtained from conventional DWI do not exclusively correspond to molecular diffusivity.^27,28 The IVIM model was recommended to account for molecular diffusion driven by Brownian motion and perfusion-related pseudodiffusion.

IVIM with a biexponential model is a method initially proposed by Le Bihan et al^13,14 to quantitatively assess the microscopic translational motion that occurs in each image voxel on MR imaging and to distinguish both pure molecular diffusion and capillary perfusion with sufficiently low b-values (<200 s/mm²). However, the value of IVIM in differentiating benign and malignant sinonasal lesions has not been investigated previously, to our knowledge. Until now, 2 main calculation methods, including a conventional method using a nonlinear, biexponential fitting and a newly simplified method using a linear fitting of a logarithmic transformation, have been applied to produce the final IVIM results.^29,30

Recently, Sasaki et al³⁰ reported that the simplified technique could be an alternative to the conventional method in the determination of IVIM parameters for head and neck tumors. Nonetheless, the conventional calculation method could better predict lesion perfusion and diffusion characteristics with fewer artifacts and higher signal-to-noise ratios compared with the simplified technique.³⁰ In addition, the conventional calculation technique using the 2-step fitting with D value estimation first was found to best correlate with dynamic contrast-enhanced MR imaging.²⁹ Thus, the conventional method with 2-step fitting was adopted to calculate the IVIM parameters for the differentiation of sinonasal lesions. In this preliminary study, we found that IVIM was a more effective tool than conventional DWI in the differentiation of benign and malignant sinonasal lesions. Additionally, the reproducibility of D, D*, and f values derived from IVIM was excellent; this finding was consistent with that of Jia et al,¹⁸ suggesting that IVIM could also be a reliable method for discerning benign from malignant lesions in the sinonasal area.

Our study showed that the D value was significantly lower in malignant sinonasal tumors than in benign lesions. Sumi et al²² reported that the D values of malignant salivary gland tumors were significantly different from those of benign tumors. Similar findings were also reported in other malignancies in other body organs, such as the breast³¹ and prostate.³² These findings may be explained by hypercellularity in malignant lesions that reduced the microstructure diffusion space of water molecules, resulting in a decrease in the D value. Hence, the D value can be highly valuable for differentiating benign and malignant sinonasal lesions. D* and f are perfusion-related parameters derived from IVIM, which are significantly correlated with microvessel density, a surrogate marker of angiogenesis.³³ The D* value is determined as the signal intensity ratios of blood capillaries and is considered linked to perfusion, which, in turn, may be dependent on tumor microvessel density.¹³ Additionally, D* was reported to be proportional to the mean capillary segment length and average blood velocity; thus, it is reflective of tumor vascularity.¹³ In our present study, we found no significant difference in the D* value between benign and malignant sinonasal lesions, which was in satisfactory agreement with previous studies.^34,35 However, our D* estimation in sinonasal lesions was not consistent with those reported by Kim et al³⁶ for pancreatic pathologies and Sumi et al²² for salivary gland tumors, which may be due to the low signal-to-noise ratio and the relatively poor measurement reproducibility of D*.³¹ As for the f value, it measures the fractional volume of capillary blood flowing in each voxel and has direct correlations with the extent of normal angiogenesis with intact vessels in terms of basement membrane thickness and pericyte coverage.^37,38 Therefore, f may be an indicator of vascular permeability. In the current study, we found that the f value was significantly higher in malignant lesions than in benign sinonasal lesions, a finding in accordance with those in previous studies on head and neck tumors.^17,19,22,30 With the application of dynamic contrast-enhanced imaging, Xian et al³⁹ found that malignant sinonasal tumors were usually associated with high permeability and high perfusion, which was in good agreement with our results. However, some malignant sinonasal lesions, such as lymphomas, can have a low f value because of low levels of vessel density within scarce amounts of stromal tissue.¹⁷ Moreover, some benign sinonasal lesions can also be associated with a high perfusion level. For example, small vessels with ectasia are frequently observed in the Antoni B areas of schwannomas, resulting in a high f value.¹⁷

Three parameters, ADC, D, and f, were significant for differentiating benign from malignant sinonasal lesions. The ROC analysis with 10-fold cross-validation showed that the cross-validated AUC, sensitivity, specificity, and accuracy levels of the D value were significantly higher than those of the f and ADC values. As previously reported, cellularity and microcirculation influence ADC measurements in a diametrically opposite direction.⁴⁰ However, most malignant tumors had both hypercellularity (low diffusivity) and hypervascularity (high perfusion fraction). D, known as the pure molecular diffusion coefficient, can represent cellularity more precisely, can reduce the bias by avoiding microcirculation contributions,^13,14 and, therefore, can better differentiate benign and malignant sinonasal lesions. Additionally, the combination of D and f values derived from IVIM can provide a better diagnostic performance than the ADC value, indicating that IVIM could be a more efficient method than conventional DWI for the differentiation of sinonasal lesions.

There are some limitations to our study. First, given the wide variety of histologic types and the small number of each type of benign and malignant sinonasal lesion, selection bias was inevitable, so our findings still need larger prospective studies to further validate them. Additionally, as in previous studies,^11,12 inflammatory polyps were included in our study. These typically are not a diagnostic dilemma because they usually do not demonstrate solid masslike enhancement, bone change, or masquerade as tumors. However, most inflammatory polyps included in our study were hemorrhagic and/or necrotic polyps (19/28), which sometimes may be difficult to discriminate from malignant sinonasal lesions on conventional CT and MR imaging. Second, the ROI placement for the measurement of conventional DWI and IVIM parameters could not be correlated with fragmental histologic specimens on a site-to-site basis. Third, due to the artifacts from air in the sinuses, there may be some distortions in the measured volume that may result in measurement bias. Thus, conventional DWI and IVIM data acquired using readout-segmented echo-planar imaging using parallel imaging and 2D navigator-based reacquisition may be helpful to reduce the artifacts and distortions.^12,41 Fourth, the value of all these parameters, including ADC, D, D*, and f, in the differentiations of pathologic types of sinonasal tumors was not evaluated because of the limited number of each type of sinonasal lesion. Finally, because IVIM parameters could be affected by the calculation method, the threshold values proposed in our study may not be generalizable to other institutions or other methods of IVIM calculation. This issue needs to be investigated in further studies.

Conclusions

Our preliminary study shows that the ADC value from conventional DWI and the D and f values from IVIM may be helpful for discriminating markers in the differentiation of benign and malignant sinonasal lesions. Furthermore, the combination of D and f values demonstrates significantly higher sensitivity, specificity, and accuracy than the ADC value, revealing that IVIM appears to be a more valuable tool than conventional DWI for distinguishing benign from malignant sinonasal lesions. Further prospective studies are needed to confirm these findings.

Footnotes

Zebin Xiao, Zuohua Tang, and Jinwei Qiang contributed equally to this study.
This work was supported by the Grant of Science and Technology Commission of Shanghai Municipality (No. 17411962100; 14411962000) and Shanghai Municipal Commission of Health and Family Planning (Grant No. ZK2015A05).

Indicates open access to non-subscribers at www.ajnr.org
