Relationship between Cough-Associated Changes in CSF Flow and Disease Severity in Chiari I Malformation: An Exploratory Study Using Real-Time MRI

A.F. Bezuidenhout; D. Khatami; C.B. Heilman; E.M. Kasper; S. Patz; N. Madan; Y. Zhao; R.A. Bhadelia

doi:10.3174/ajnr.A5670

Abstract

BACKGROUND AND PURPOSE: Currently no quantitative objective test exists to determine disease severity in a patient with Chiari I malformation. Our aim was to correlate disease severity in symptomatic patients with Chiari I malformation with cough-associated changes in CSF flow as measured with real-time MR imaging.

MATERIALS AND METHODS: Thirteen symptomatic patients with Chiari I malformation (tonsillar herniation of ≥5 mm) were prospectively studied. A real-time, flow-sensitized pencil-beam MR imaging scan was used to measure CSF stroke volume during rest and immediately following coughing and relaxation periods (total scan time, 90 seconds). Multiple posterior fossa and craniocervical anatomic measurements were also obtained. Patients were classified into 2 groups by neurosurgeons blinded to MR imaging measurements: 1) nonspecific Chiari I malformation (5/13)—Chiari I malformation with nonspecific symptoms like non-cough-related or mild occasional cough-related headache, neck pain, dizziness, paresthesias, and/or trouble swallowing; 2) specific Chiari I malformation (8/13)—patients with Chiari I malformation with specific symptoms and/or objective findings like severe cough-related headache, myelopathy, syringomyelia, and muscle atrophy. The Spearman correlation was used to determine correlations between MR imaging measurements and disease severity, and both groups were also compared using a Mann-Whitney U test.

RESULTS: There was a significant negative correlation between the percentage change in CSF stroke volume (resting to postcoughing) and Chiari I malformation disease severity (R = 0.59; P = .03). Mann-Whitney comparisons showed the percentage change in CSF stroke volume (resting to postcoughing) to be significantly different between patient groups (P = .04). No other CSF flow measurement or anatomic measure was significantly different between the groups.

CONCLUSIONS: Our exploratory study suggests that assessment of CSF flow response to a coughing challenge has the potential to become a valuable objective noninvasive test for clinical assessment of disease severity in patients with Chiari I malformation.

ABBREVIATIONS:

CMI: Chiari I malformation
NS-CMI: Chiari I malformation with nonspecific symptoms
PBI: pencil-beam imaging
S-CMI: Chiari I malformation with specific symptoms
SV_CSF: CSF stroke volume

Hans Chiari first described the spectrum of Chiari malformations during the end of the 19th century, and in 1985, Aboulezz et al¹ described the radiologic definition of Chiari I malformation (CMI) as a ≥5-mm downward displacement of the cerebellar tonsils through the foramen magnum. Much controversy has arisen regarding the management of these patients since then because CMI is not an infrequent MR imaging finding in the general population with a prevalence of 0.56%–0.77%.^2,3 The conundrum exists because some patients who meet the MR imaging criteria for CMI are asymptomatic and some with <5-mm tonsillar herniation have typical CMI symptoms.^{4⇓⇓⇓⇓⇓–10} It has been estimated that at present, only 20% of patients diagnosed as having CMI by current MR imaging criteria will have symptoms amenable to surgical intervention.¹¹ Because there is no reliable objective test available that correlates with the severity of clinical findings, the treatment of these patients largely depends on the management philosophy of the treating neurosurgeon. Reportedly, this has led to the overzealous use of surgical treatment with unfavorable outcomes being reported in up to 30% of patients.^6,12

Most of the symptoms and clinical findings associated with CMI are believed to be due either to neural compression or abnormal CSF circulation at the foramen magnum.^{5,7,13⇓⇓⇓⇓⇓⇓⇓⇓⇓–23} Because both of these pathologic forces are likely to be interrelated within the bony confines of the foramen magnum, assessment of fluid dynamics by CSF pressure or flow measurements at the craniocervical junction may better reflect CMI disease severity than MR imaging–based anatomic measurements like tonsillar herniation or posterior fossa volume.^{21,23⇓⇓–26} Thus, both invasive simultaneous pressure measurements in the head and spinal canal and noninvasive CSF flow imaging using cine phase-contrast MR imaging have been used.^{5,7,13⇓⇓–16,27⇓⇓⇓–31} However, none of the above methods have been widely accepted for presurgical evaluation of individual patients with CMI: pressure measurements due to their invasive nature and cine phase-contrast due to wide variability in quantitative CSF flow estimates between patients with CMI of different disease severities (as well as between healthy subjects and patients with CMI).

An important limitation of previous cine phase-contrast methods is that most assess CSF flow while the patient is breathing quietly in the MR imaging scanner and provide weighted averages of CSF flow pulsations over ≥15 cardiac cycles. Because physiologic challenges such as coughing or the Valsalva maneuver are known to transiently induce or exaggerate pressure dissociations at the craniocervical junction affecting CSF flow for only a few seconds, these weighted averages of CSF flow over many cardiac cycles measured by cine phase-contrast may not capture transient changes in CSF flow.^{21⇓–23,32⇓⇓–35} In a recent study, Bhadelia et al³² proposed a real-time CSF flow imaging technique to assess the transient changes in CSF flow as a consequence of physiologic maneuvers. This technique was further used to compare CSF flow response to coughing in patients with CMI and healthy subjects.³³ In this exploratory study, we used real-time MR imaging to correlate disease severity among symptomatic patients with CMI with cough-associated changes in CSF flow.

Materials and Methods

Institutional review board approval was obtained for this Health Insurance Portability and Accountability Act–compliant prospective study, and each patient signed an informed consent.

Patients

Thirteen symptomatic patients with CMI who agreed to participate in a research study at the initial neurosurgical consultation were prospectively evaluated between 2011 and 2013. Two board-certified neurosurgeons with >15 years of experience in Chiari care developed a grading scale for symptom severity by consensus (slightly modified from a previously published CMI study, Alperin et al 2014³⁶). Subsequently, this grading system was used by the neurosurgeons blinded to MR imaging measurements to classify patients in to 2 groups: 1) nonspecific CMI (NS-CMI): CMI with nonspecific symptoms like non-cough-related or mild occasional cough-related headache, neck pain, dizziness, paresthesias, and/or dysphagia; 2) specific-CMI (S-CMI): patients with CMI with specific symptoms and/or objective findings like severe cough-related headache, myelopathy, syringomyelia, and muscle atrophy.

MR Imaging

All patients underwent MR imaging on a 3T scanner (Achieva; Philips Healthcare, Best, the Netherlands).

For localization and anatomic measurements of the posterior fossa and craniocervical junction, sagittal 3D T1 and 3D T2-weighted images were obtained. To assess CSF flow, we used a real-time flow-sensitized pencil-beam imaging (PBI) method with ∼50-ms temporal resolution. PBI excites a narrow cylinder or “pencil” region and has been described in detail previously.^32,37,38 A 25-mm-diameter and 64-mm-length cylinder with bipolar velocity-encoding and readout gradients applied along the long axis of the cylinder (pencil beam) was positioned along the long axis of the upper cervical spinal canal, extending from just above the level of the foramen magnum to the C3 level covering the entire thecal sac^. (Fig 1).^32,33 The PBI scan provides a phase-encoded velocity measurement with a temporal resolution of ∼50 ms and spatial resolution along the cylinder axis.³⁸ To avoid phase wrap, we used a velocity encoding of 5 cm/s along the superior-to-inferior direction. Other imaging parameters were TR, 25–28 ms; TE, 3.8 ms; and flip angle, 5°. The bipolar phase-encoding gradient was alternated on sequential TRs, making the effective temporal resolution 2 × TR (ie, 50–56 ms). Heart rate and respiratory movements were continuously monitored using the physiologic recording system of the scanner. Cardiac gating was not required for this PBI study, which recorded pulsatile CSF flow motion in real-time and, therefore, was able to acquire data much faster than the gated phase-contrast MR imaging.

Fig 1.

The position of the PBI cylinder (rectangle) and location of CSF flow evaluation (line) are shown in a patient with CMI.

Each PBI scan was acquired for approximately 90 seconds, during which the patient was asked to do the following: 1) breathe quietly for the first 15–20 seconds (by counting from 1 to 20), 2) then cough as forcefully as possible consecutively 6 times, and 3) breathe quietly again after the end of coughing. Each 90-second scan set was repeated 3 times.

Image Analysis

3D anatomic images were used to measure the amount of tonsillar herniation below the level of the foramen magnum as well as multiple posterior fossa and craniocervical dimensions and angles. Posterior fossa measurements included the length of the clivus (inferior boundary of the dorsum sellae to the basion), supraocciput (opisthion to the internal occipital protuberance), the McRae line (basion to the opisthion), and the Twining line (inferior boundary of the dorsum sellae to the internal occipital protuberance). Craniocervical measurements included the clivus-canal angle (clival-axis angle), odontoid retroversion angle (posterior inclination of the odontoid relative to the body of C2), skull base angle (from the nasion to the center of the pituitary fossa to the clivus/basion), and the pB-C2 line (perpendicular length between a line connecting the basion and the inferoposterior C2 body to the ventral dura).

The posterior fossa and craniocervical measurements were manually obtained using the midsagittal image on a PACS workstation.

CSF flow analysis was performed off-line using custom software developed in Matlab (MathWorks, Natick, Massachusetts), which allows simultaneous display of 3D anatomic and physiologic PBI data along with the heart rate and respiration. The cross-sectional area of the CSF flow channel of a patient within the PBI cylinder was determined on axial anatomic images by subtracting the area of the neural structures from the area of the thecal sac at that level.³⁹ The software then calculated CSF flow in milliliters per second by multiplying average PBI velocity by the area of CSF flow channel. CSF flow waveforms were plotted with CSF flow on the y-axis versus time (seconds) on the x-axis, thereby depicting cardiac cycle–related CSF flow pulsations over the entire 90-second data acquisition, encompassing resting, postcoughing, and relaxation (delayed) periods. The physiologic parameter measured was CSF stroke volume (SV_CSF) in milliliters, which was defined as the average of the absolute values of integrated craniocaudal and caudocranial CSF flows during the entire cardiac cycle (Fig 2).⁴⁰

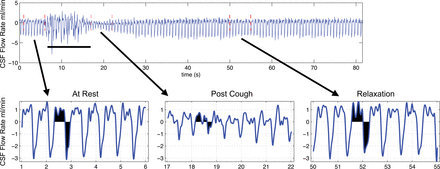

Fig 2.

The effect of coughing on a cardiac cycle–related CSF flow waveforms is seen in a patient with CMI with specific symptoms. Left-to-right: resting, coughing (underlined), postcoughing, and relaxation waveforms are seen. CSF flow waveforms: craniocaudal CSF flow (area colored in below the zero line) and caudocranial CSF flow (area colored in above the zero line). CSF stroke volume is the average of absolute flow from craniocaudal and caudocranial CSF flow. In this patient with CMI with specific symptoms, the CSF flow-pulsation magnitude in the immediate postcoughing period decreases in comparison with the resting value before gradually returning to the resting level at relaxation. The x-axis indicates time in seconds; the y-axis, CSF flow rate in milliliters per minute. Arrows indicate a magnified view of the CSF flow waveforms during the respective actions performed by the patient.

The SV_CSF for each period was calculated during a 5- to 6-second period. For postcoughing assessment, the period was selected approximately 5 seconds after the end of coughing to allow sufficient time for any motion related to coughing to subside. The relaxation assessment was performed about 20–25 seconds after coughing. We assessed CSF flow just below the level of foramen magnum along the PBI cylinder. No discontinuities were present on the phase images to indicate aliasing (no velocities exceeding 5 cm/s).

All anatomic and CSF flow measurements for this exploratory study were obtained by consensus by 2 radiologists with 25 and 3 years of clinical experience but without the knowledge of the clinical severity grade of the patients.

Data Analysis

Besides using resting, postcoughing, and relaxation values of SV_CSF as physiologic measurements, change in the SV_CSF between resting to postcoughing, postcoughing to relaxation, and resting to relaxation was also evaluated and expressed in a percentage of initial values for normalization of differences among patients. The Spearman correlation was used to determine relationships between anatomic and physiologic CSF flow measurements and CMI disease severity. A Mann-Whitney U test was used to compare anatomic and physiologic measurements between NS-CMI and S-CMI patient groups. A P value of < .05 was statistically significant.

Results

Thirteen symptomatic patients with CMI were included. They were a mean of 38.6 ± 6.7 years of age, and 11/12 (92%) were women. The patients were divided into 2 groups based on symptoms by neurosurgeons as described in the “Materials and Methods” section. Group 1 included patients with nonspecific CMI symptoms and consisted of 5 (5/13) patients. Group 2 included patients with specific CMI symptoms and consisted of 8 (8/13) patients.

No statistically significant relationship was observed between anatomic measurements and CMI disease severity. There was a statistically significant negative relationship observed between the percentage change in SV_CSF from resting to postcoughing and CMI disease severity (R = 0.59; P = .03).

Anatomic and physiologic CSF flow measurements of NS-CMI and S-CMI groups are shown in the Table. The Mann-Whitney U test showed the percentage change in the SV_CSF from resting to postcough to be the only MR imaging measurement significantly different between the groups (P = .04). The change in the SV_CSF is graphically demonstrated in a patient with S-CMI with cough and Valsalva-related headache and syringomyelia (Fig 2).

View this table:

Anatomic and physiologic measurements in S-CMI and NS-CMI

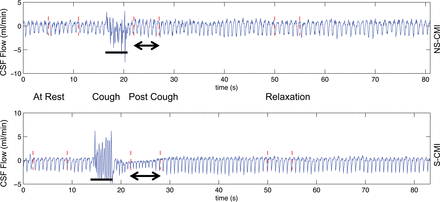

Figure 3 shows the effect of coughing in a patient with NS-CMI compared with S-CMI. No appreciable change in CSF flow is seen in a patient with NS-CMI after coughing, but in the patient with S-CMI, considerable decrease is clearly visualized.

Fig 3.

The effect of coughing on cardiac cycle–related CSF flow waveforms in different patients with CMI, one with nonspecific symptoms and one with specific symptoms. Left-to-right: resting, coughing (underlined), postcoughing (underlined with double-headed arrows), and relaxation waveforms are seen. In the patient with S-CMI (lower waveform), the CSF flow-pulsation magnitude in the immediate postcoughing period decreases to ±50% of the resting value before gradually returning to the resting level at relaxation. In contrast, in the patient with NS-CMI, the CSF flow-pulsation magnitude immediately postcoughing is not significantly different compared with that of the resting period. The x-axis indicates time in seconds; the y-axis, CSF flow rate, in milliliters per minute.

Discussion

In this exploratory study, real-time physiologic measurement of CSF flow demonstrated a significant decrease in flow across the foramen magnum in response to coughing in patients with CMI with severe specific symptoms compared with those with CMI with nonspecific symptoms. Real-time physiologic measurement of decreased CSF flow after coughing demonstrated better correlation with CMI disease severity than any of the anatomic measurements of the posterior fossa or craniocervical junction. Another important finding of the study was that no significant difference in the SV_CSF was seen between the 2 groups of patients with CMI in resting or relaxation periods and only a borderline significant difference (P = .07) was seen in the postcoughing values. The observation that only the percentage change in CSF flow from resting to postcoughing showed a significant difference between the 2 groups underscores the importance of the use of normalized values of CSF flow in objective quantitative physiology-based assessment of CSF flow obstruction at the foramen magnum in an individual patient with CMI. In other words, each patient acted as his or her own control by using a physiologic challenge to assess his or her ability to handle compensatory flow across the foramen magnum and thereby negating confounding variables among patients. The results of this exploratory study are encouraging enough to pursue a larger prospective study of patients with CMI to determine whether this method can be used as an objective clinical test for assessing disease severity.

Previously published invasive pressure studies have shown that physiologic challenges such as coughing or Valsalva maneuver produce pressure dissociation between the head and spine in patients with CMI.^{21,23,24,32⇓⇓–35} The development of pressure dissociation is explained by a transient increase in spinal pressure (from increased intrathoracic pressure and consequent distension of the epidural veins) during coughing, moving CSF to the head, which returns to the spinal canal immediately postcoughing in a healthy subject but not in a patient with CMI, provided there is sufficient foramen magnum obstruction due to neural crowding.^{22,33⇓–35} These studies also demonstrated that there was minimal if any pressure dissociation in these patients with CMI at rest before coughing or Valsalva.³³ While we did not calculate pressure gradients from our velocity data, our results confirmed both of these observations made by previous invasive pressure studies.^34,35,41 First, a decrease in CSF flow after coughing in patients with CMI indicates that CSF circulation from the head to spine is impaired, a condition that would result in pressure dissociation. Second, a decrease in CSF flow after coughing was transient, lasting only a few seconds before returning to the resting levels in the relaxation period. This finding suggests that there is increased pressure dissociation in the postcoughing period due to further downward descent of cerebellar tonsils exaggerating neural crowding at the foramen magnum.²³ This exaggeration of neural crowding and further obstruction of CSF flow are believed to result in exacerbation of symptoms after coughing.^{23,32⇓⇓–35} Our observation thus strongly suggests that MR imaging assessment of CSF flow in CMI would be much more informative in assessing the CSF circulation abnormalities if performed with a physiologic challenge.

Our results provide the first evidence of differences in CSF flow in response to coughing in 2 groups of symptomatic patients with CMI, which were classified on the basis of symptoms and clinical findings. While this is a small exploratory study, it suggests that there is a higher degree of transient CSF flow impairment after coughing in patients with CMI with specific symptoms and objective findings—that is, more severe disease than in those with nonspecific symptoms. Furthermore, unlike invasive pressure monitoring, the method described here is noninvasive and has the potential to be used in studying many patients with CMI with different grades of disease severity and to follow-up patients treated with or without surgical decompression.

Several limitations of our exploratory study (and method) need to be addressed. First, the small sample size limits our ability to recommend it as an objective test for patients with CMI until further patient data are collected in a larger prospective study. However, even in this small group of patients, cough-associated changes in CSF flow were the only anatomic or physiologic parameter that demonstrated a statistically significant difference between patients with NS-CMI and S-CMI, highlighting their potential in objectively assessing disease severity in patients with CMI. Second, due to small sample size, we could only divide patients with CMI into 2 groups as has been done by many previous CMI studies. Given the wide variety of symptoms and clinical findings in CMI, we believe that dividing CMI disease severity into only 2 groups is a limitation that needs to be addressed in the future, including separate assessment of patients with CMI with syringomyelia to further elucidate its pathophysiology. Third, we did not quantitatively measure coughing effort by patients but asked them to cough as forcefully as possible, which could potentially introduce an additional variable that was not accounted for in our study. We have since developed a method to quantitatively assess cough effort during our MR imaging experiments to better evaluate CSF flow changes in individual patients. However, we believe cough effort to be less of an issue in the group comparison performed here. This is because patients with severe symptoms (S-CMI) are more likely to not cough forcefully due to fear of inducing pain than those with less severe symptoms (NS-CMI) and thus may have introduced a negative bias, if any, thus further enhancing our results. Fourth, due to the small sample size in this exploratory study, interobserver variability between the neurosurgeons classifying the patients and radiologists reading the MR imaging studies, respectively, was not analyzed, but in both situations, decisions were made by consensus. Finally, the pencil-beam sequence used here is currently only available in research mode on 1 vendor platform. If this method is to be used in routine clinical practice for CSF flow studies in patients with CMI, expanding it across different vendor platforms is required.

Conclusions

Our exploratory study suggests a potential future role for real-time physiologic measurement of CSF flow in response to coughing as an objective qualifier for clinical assessment in patients with CMI.

Footnotes

Disclosures: Ekkehard M. Kasper—UNRELATED: Board Membership: Editorial Boards of Neurosurgery, Neurooncology, others; Consultancy: Risk Management Foundation of The Harvard Medical Institutions, Comments: legal expert review as an external specialist; Expert Testimony: CRICO; Travel/Accommodations/Meeting Expenses Unrelated to Activities Listed: World Federation of Neurosurgical Societies Committee on Anatomy, Comments: For educational courses to which we are invited as a World Federation of Neurosurgical Societies committee, the venue will provide room and board. We pay for our own airfare. Yansong Zhao—UNRELATED: Employment: Philips Healthcare. Rafeeque A. Bhadelia—RELATED: Grant: Conquer Chiari Foundation, Comments: money for MRI scans and analysis software.* *Money paid to the institution.
This work was supported by a grant from the Conquer Chiari Foundation.
