Morning Glory Disc Anomaly: Expanding the MR Phenotype

F.D. Firouzabadi; M.D. Soldatelli; V. Rameh; G. Heidary; S.O. Vargas; E. Gonzalez; J. Rispoli; R. Rahbar; C.D. Robson

doi:10.3174/ajnr.A8296

Abstract

BACKGROUND AND PURPOSE: Morning glory disc anomaly (MGDA) is a congenital malformation characterized by a funnel-shaped optic disc excavation with radiating vessels and a central glial tuft. Imaging is essential to evaluate associated cephalocele and steno-occlusive vasculopathy. The goal of this study was to assess optic nerve, chiasmatic, and sphenoid bone morphology in MGDA.

MATERIALS AND METHODS: This retrospective study examined all subjects with funduscopically confirmed MGDA diagnosed and imaged with brain MR imaging between 2008 and 2023.

RESULTS: Thirty-two children met inclusion criteria. Ocular involvement was unilateral in 29 subjects and bilateral in 3. Segmental optic nerve enlargement ipsilateral to the MGDA was seen in 21 subjects, with 3 also demonstrating a segmental reduction in the size of the ipsilateral optic nerve. Segmental reduction in the size of the ipsilateral optic nerve was present in 3 additional subjects, one with bilateral MGDA. The optic chiasm appeared asymmetrically thickened in 21 subjects, often with deformity. The optic nerves appeared normal in signal intensity in all subjects, with faint peripheral chiasmatic enhancement in 4 of 20 patients who received contrast. Optic nerve findings were stable in 15 subjects with multiple examinations. A persistent craniopharyngeal canal was identified in 17 subjects with sphenoid cephalocele in 1 and mild inferior pituitary gland displacement in 4. Tubular or nodular nasopharyngeal lesions were seen in 10 subjects. One subject had an off-midline sphenoid bone cleft, midbrain deformity, and abnormal thickening of and enhancement around the left oculomotor nerve; the oculomotor nerve finding was present in 1 additional patient.

CONCLUSIONS: MGDA often manifests with ipsilateral optic nerve thickening, leading to a potential misdiagnosis as optic glioma. MGDA is also commonly associated with a persistent craniopharyngeal canal with variable pituitary gland and infundibular deformity, cephalocele, and tubular or nodular nasopharyngeal lesions.

ABBREVIATIONS:

MGDA: morning glory disc anomaly
MMD: Moyamoya disease
ON: optic nerve
PCPC: persistent craniopharyngeal canal

Morning glory disc anomaly (MGDA) is a congenital ocular malformation that was first comprehensively described by Kindler,¹ in 1970, who coined the descriptive term, with similar findings reported by Handmann,² as early as 1929. MGDA is characterized by a funnel-shaped excavation of the optic disc with an overlying central glial tuft that resembles the central white of the morning glory flower.^3,4 This rare entity affects approximately 2.6 of 100,000 children and is usually unilateral.⁵ Cases are mostly sporadic; however, associations with mutations in genes involved in ocular development (such as PAX6) have been described.⁶ The proposed pathophysiology is a primary mesoectodermal dysgenesis, in which there is partial development of the lamina cribrosa and incomplete closure of the embryonic fissure, leading to improper development of the posterior wall of the sclera.^7,8

MGDA is diagnosed clinically and patients may present because of vision loss, new-onset strabismus, or leukocoria.⁹ It is important, though sometimes challenging, to differentiate MGDA from optic disc coloboma, which, unlike MGDA, has a robust genetic predisposition, requires different management, and carries a different prognosis.^10,11 On MR imaging, MGDA is characterized by a funnel-shaped excavation of the optic disc, with adjacent hyperintense tissue on T1-weighted MR imaging, likely representing a chorioretinal pigmentary disturbance. There is typically effacement of the adjacent perioptic subarachnoid space, lack of the usual enhancement at the lamina cribrosa with discontinuity of the uveoscleral coat, and, less frequently, fatty infiltration of the optic nerve (ON) sheath, ON enhancement, and variable microphthalmia.³

MGDA is associated with a wide range of ocular, intracranial, and vascular abnormalities as well as midline skull base defects.^{5,12⇓⇓⇓-16} Recent studies reported the coexistence of a persistent craniopharyngeal canal (PCPC), with or without pituitary malformation and hypopituitarism.^13,17 Doneda et al¹⁸ also reported 3 cases of MGDA with associated ipsilateral ON and chiasm thickening and dysplasia.

Previously, we described the characteristic imaging findings of MGDA on MR imaging.³ In this large, retrospective series that includes 6 subjects from the prior publication, we assessed MR imaging examinations to characterize the less well-described spectrum of ON, chiasmatic, and sphenoid bone anomalies. Furthermore, we sought to assess the morphology of a PCPC when present, the presence of pituitary gland deformity, and overt sphenoid cephalocele. Finally, we aimed to identify additional diagnostic features and shed light on the underlying pathogenic mechanisms involved in MGDA.

MATERIALS AND METHODS

Subjects

This was a retrospective study approved by the institutional review board (Boston Children's Hospital, Boston) (IRB-P00046220) and performed in accordance with the Declaration of Helsinki. The study population consisted of patients with funduscopically confirmed MGDA at the time of presentation, imaged from January 2008 to May 2023, who had MR imaging examinations of the brain and orbits.

Imaging Protocols

Patients underwent MR imaging by using either a 1.5T Signa TwinSpeed MR imaging scanner (GE Healthcare) or a 3T Tim Trio, Magnetom Vida, Magnetom Prisma, or Magnetom Skyra MR imaging scanner (Siemens). Examples of imaging protocols are shown in the Online Supplemental Data.

Imaging Review and Analysis

Images were independently reviewed using the hospital PACS by 1 staff pediatric neuroradiologist with 30 years of pediatric neuroradiology experience and a pediatric neuroradiology fellow. Findings were tabulated as follows: MGDA laterality, ipsilateral ON size, size and morphology of the optic chiasm, abnormality of the pituitary fossa/skull base such as a PCPC, basal encephalocele and pituitary gland and infundibular anomalies, and the presence of nasopharyngeal lesions. The ON and chiasm were assessed qualitatively; the contralateral side of the same patient was used as a reference for unilateral cases, and both sides were qualitatively assessed for bilateral cases. Evidence of Moyamoya disease (MMD) was also documented. We then calculated the numbers and percentages of these abnormalities.

Pathologic Examination

In a single case with surgical resection of tissue from the anomalous region in the nasopharynx, pathologic features were examined by a pediatric pathologist.

RESULTS

Study Population

Our study cohort consisted of 32 children, 17 males (53.1%) and 15 females (46.9%), ranging in age from 3 months to 16 years with a mean age of 5 years at the time of MR imaging. In our study, only 2 patients had confirmed genetic alterations; one had a single nucleotide variant in the beaded filament structural protein 2 (BFSP2) gene, and the other had a duplication in the 7p14.3 region 26. Twenty-nine (90.6%) children had unilateral MGDA (left/right, 19/10) and 3 patients had bilateral MGDA. The results are summarized in the Online Supplemental Data.

Imaging Findings

ON and Chiasm.

In 21 subjects (65.6%) with MGDA, the ipsilateral ON showed mild segmental thickening. This affected the intraorbital segment in 5 cases, the prechiasmatic segment in 5 cases, and both segments in 11 cases (Fig 1). The intraorbital ON appeared mildly small in 5 subjects (1 bilateral case with a contralateral large ON), and the prechiasmatic ON appeared mildly small in 1 subject. The ipsilateral prechiasmatic ON appeared large in 2 subjects. The optic chiasm appeared abnormal in 21 patients (65.6%), with thickening ipsilateral to the MGDA in 19 patients (59.4%) (Fig 1). In 12 patients, including 2 without chiasmatic thickening, the optic chiasm appeared tilted inferiorly on the side of the MGDA and/or deformed (Fig 1B). In 2 of 3 cases of bilateral MGDA, ON and chiasm thickening were more pronounced on the side of the more severe MGDA. Signal intensity on T2WI was normal for all ONs and chiasm in all subjects. Gadolinium-enhanced T1-weighted images (available for 20 subjects) showed faint peripheral enhancement around a thickened optic chiasm in 4 subjects (Fig 1C). Among 15 subjects with multiple examinations spanning 2 months to 11 years, the ON and chiasmatic findings remained stable.

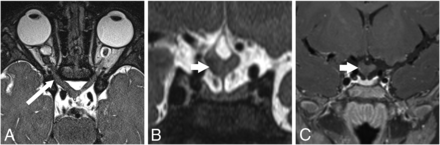

FIG 1.

ON and chiasmatic findings on MR imaging. A–C, P5; An 11-month-old girl. A, Axial T2 sampling perfection with application-optimized contrasts by using different flip angle evolution (SPACE sequence; Siemens) image shows a right MGDA with mild asymmetric right ON thickening (long arrow) without signal abnormality. B, Reformatted coronal T2 SPACE image reveals a chiasmatic deformity, asymmetrically thickened on the right (short arrow). C, Coronal contrast-enhanced fat-suppressed T1-weighted image shows minimal peripheral enhancement around the right side of the chiasm (short arrow).

Central Skull Base and Pituitary Gland.

A PCPC was present in 16 cases (50%), with apposed margins in 9 (Fig 2) and 7 with ≥1-mm separated margins (Figs 2–4), with a small inferior pituitary fossa beak in 5. One additional patient had an off-midline cleft in the sphenoid body ipsilateral to the MGDA (Fig 5). Three subjects demonstrated a small beaklike protrusion inferior to the pituitary fossa without a visible PCPC. Of 15 subjects without a demonstrable PCPC, there was sphenoid sinus pneumatization extending inferior to the sella in 6 and low-resolution, thick slice 1.5T MR imaging in 1, precluding optimal assessment for a PCPC.

FIG 2.

PCPC and pituitary fossa anomalies on MR imaging and CT. P3; A 14-month-old girl with bilateral MGDA. A, Sagittal T2-weighted MR imaging shows a PCPC with apposed margins (long, wide arrow) and minimal inferior pituitary fossa beaking. B and C, P25; A male patient with bilateral MGDA. B, Sagittal T1 MPRAGE MR imaging in a patient 5 years of age shows partial sphenoid pneumatization and a partially empty sella. The PCPC is difficult to appreciate (long, wide arrow) but is readily seen at 4 years of age on sagittal reformatted CT (long, wide arrow, C). Note the normal spheno-occipital synchondrosis dorsal to the PCPC.

One patient had a sphenoid cephalocele (Fig 3C). Four with PCPCs ranging between 1.5 and 3 mm in width had pituitary tissue extending into the upper aspect of the PCPC (Figs 2 and 3). Sloping of the pituitary fossa and/or deviation of the infundibulum was present in 7 subjects with a deep-set pituitary fossa in 5 (Fig 4).

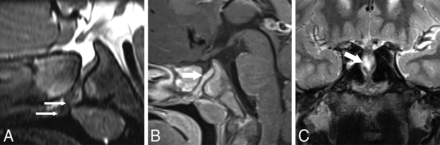

FIG 3.

PCPC with a sphenoid cephalocele on MR imaging. A and B, P1; A 16-month-old boy with a right MGDA. A, Reformatted sagittal T2 SPACE sequence. B, Sagittal contrast-enhanced T1 SPACE images show a deep-set and angulated pituitary fossa associated with a wide PCPC containing pituitary tissue (wide white arrow). Note that in A, there is also tubular hypointense tissue that differs in signal intensity from pituitary tissue projecting into the nasopharynx inferior to the pituitary tissue (thin white arrow). C, P6; A 14-year-old boy with a right MGDA. Coronal T2-weighted image shows a sphenoid cephalocele containing CSF and pituitary gland (wide white arrow).

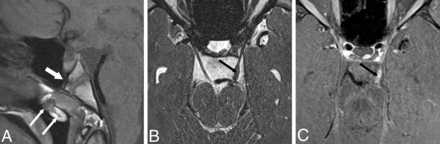

FIG 4.

PCPC, tubular nasopharyngeal hamartoma, and oculomotor nerve abnormality on MR imaging. A–C, P7; A 15-year-old girl with a left MGDA. A, Sagittal T1-weighted image shows a deep-set pituitary fossa and PCPC (long, wide white arrow) and a heterogeneous part-fatty, tubular lesion protruding into the nasopharynx (long, thin white arrows). B, Axial T2 SPACE sequence MR imaging shows asymmetric thickening of the cisternal segment of the left oculomotor nerve (black arrow), ipsilateral to the MGDA. C, Axial contrast-enhanced fat-suppressed T1-weighted MR imaging shows avid oculomotor nerve enhancement (black arrow) that appeared stable at 2-year follow-up.

Nasopharyngeal Lesions.

Twelve subjects had tubular or small nodular lesions projecting into the nasopharynx along the ventral margin of the adenoid, inferior to the sphenoid body (37.5%) (Figs 3A and 4A). In 2 of these patients, a definitive PCPC was not demonstrated on imaging. The largest lesion appeared tubular with heterogeneous signal intensity with fatty and enhancing components. Following surgical resection, histopathologic examination demonstrated a benign pedunculated polypoid lesion containing a small portion of pituitary tissue at its base. The remaining tissue was lined by ciliated columnar respiratory-type epithelium and contained adipose tissue, seromucinous glands, and swaths of smooth muscle associated with ganglion cells, resembling muscularis propria (Online Supplemental Data).

Other Findings

The subject with histologic analysis of the nasopharyngeal mass had asymmetric thickening and enhancement of the left oculomotor nerve ipsilateral to the MGDA that was stable for 2 years (Fig 4B, -C). Another subject with an off-midline sphenoid bone cleft had a deformity of the midbrain with abnormal thickening of and enhancement surrounding the left oculomotor nerve ipsilateral to the MGDA that was stable for 6 years (Fig 5B, -C). This patient also had a prominent tortuous vessel coursing through the enhancing material. One subject had hypogenesis of the corpus callosum. Steno-occlusive vasculopathy with Moyamoya collaterals was present in 6 subjects with 1 additional subject demonstrating mild unilateral ICA narrowing. A degree of vascular tortuosity was seen in 3 subjects.

FIG 5.

Off-midline left sphenoid bone cleft and oculomotor nerve abnormality on CT and MR imaging. A–C, P31; A 5-year-old girl with a left MGDA. A, 2D reformatted contrast-enhanced coronal CT image shows a sloping pituitary fossa with a left-sided sphenoid bone cleft (wide white arrow). B, Axial T2 SPACE sequence MR imaging shows a proximally thickened left oculomotor nerve that originates anomalously from the left side of the midbrain (black arrow) with a prominent tortuous vessel (thin white arrow) originating near the origin of the left superior cerebellar and posterior cerebral arteries (corroborated on MRA; not shown). C, Axial fat-suppressed contrast-enhanced T1-weighted MR imaging shows the tortuous vessel (thin white arrow) with surrounding abnormal enhancement encompassing the left oculomotor nerve root entry zone with enhancement of the proximal cisternal oculomotor nerve segment (black arrow). These findings appeared stable during a 6-year period.

DISCUSSION

In this retrospective study, we evaluated a cohort of patients with funduscopically identified MGDA and analyzed the less-well-described associated imaging features. The most common associated optic pathway finding was segmental abnormal thickening of the ON and thickening/angulation of the optic chiasm ipsilateral to the MGDA, without associated signal abnormality and with trace enhancement surrounding the optic chiasm in a minority of subjects.

Prior studies have reported an association between MGDA and ON and chiasmatic abnormalities. Ceynowa et al⁵ and Ellika et al³ each reported a case of ipsilateral ON enlargement, referred to as probable ON glioma but without specifying whether contrast enhancement was present. Bandopadhayay et al¹⁹ and Kinori et al²⁰ also described 1 case each of ON enlargement with mild peripheral contrast enhancement, interpreted as an optic glioma. Similarly, Doneda et al¹⁸ reported 3 cases of clinically diagnosed unilateral MGDA with an ipsilateral ON and chiasmatic thickening on MR imaging, considered nonspecific. In a larger cohort, Poillon et al²¹ described 9 cases of optic pathway enlargement ipsilateral to the MGDA, with no change at a mean 3.1-year follow-up. The intraorbital ON and the optic chiasm were most frequently affected. The authors reported no contrast enhancement and homogeneous signal on T1-weighted and T2-weighted images.²¹ In our study, we found segmental ipsilateral ON and/or chiasmatic enlargement to be stable on long-term imaging follow-up and concluded that these findings are non-neoplastic in nature. This finding aligns with prior data showing no evolution of the ON abnormalities in patients with MGDA.^21,22 Similarly, the uncommon occurrence of stable oculomotor nerve thickening and surrounding enhancement also presumably relates to a static developmental malformation rather than a neoplasm. To the best of our knowledge, these changes in the oculomotor nerve have not previously been reported in association with MGDA.

We believe ON and chiasm thickening is potentially underdiagnosed in MGDA. Previous studies have identified glial and fatty aggregates along the intraorbital ON within the distal sheath^3,23,24 and also noted the presence of heterotopic muscle cells in abnormally developed eyeballs.²⁵ These findings suggest that ON and chiasmatic thickening may be malformative, indicating abnormal development and likely a continuum of the spectrum of abnormalities associated with MGDA. While to date, no cases of MGDA associated with histologically-proved optic glioma have been reported, in rare cases in which ON thickening progresses or visual acuity deteriorates, the differential diagnosis of optic glioma or other non-neoplastic masses, such as hamartoma or choristoma, should be considered so that appropriate therapy can be provided.^19,26,27

Five cases showed thinning of the ipsilateral ON at the site of the MGDA. Previous studies have reported ON and chiasm thinning contralateral to the MGDA, possibly suggesting anterograde degeneration due to ganglion cell deficit within the developing retina.^5,24 However, the absence of atrophy in the ipsilateral ON and contralateral optic tract makes the assumption of anterograde degeneration less likely.¹⁸ Instead, the asymmetry should be interpreted as a thickening on the affected side.¹⁸ Nguyen et al²² described a single case of ON thinning ipsilateral to the MGDA. ON hypoplasia may present as an isolated anomaly or associated with midline cerebral structural defects, such as the absence of the septum pellucidum, agenesis of the corpus callosum, or pituitary gland abnormalities.²⁸ Several genetic mutations have been linked to ON hypoplasia, including PAX6 gene mutations, which are associated with MGDA.⁶ In our study, only 2 cases showed confirmed genetic alterations: One had a single nucleotide variant in the BFSP2 gene, and the other had a duplication in the 7p14.3 region.²⁹ Notably, these genetic alterations have not been previously described in patients with MGDA.

MGDA has been reported in association with a variety of midline malformations, including hypertelorism, cleft lip and palate, agenesis of the corpus callosum, basal encephalocele, persistent embryonal infundibular recess, and endocrinologic abnormalities involving the pituitary gland.^{17,30⇓⇓⇓⇓-35} In our cohort 64% of cases had a small beaklike projection off the pituitary fossa, which pointed to the PCPC. One-half of our subjects presented with a PCPC, most with apposed margins. The PCPC was most readily diagnosed on CT and on thin-section, high-resolution 3T MR imaging examinations performed before extensive sphenoid sinus pneumatization. The PCPC is a corticated tract along the midline of the sphenoid bone, extending from the sellar floor to the anterior-superior nasopharyngeal roof. The PCPC is believed to arise due to incomplete closure of the Rathke pouch, the precursor to the adenohypophysis.^32,36⇓-38 It is essential to assess the PCPC for ectopic pituitary gland, encephalocele, and nasopharyngeal lesions, meriting endocrinology assessment and sometimes requiring surgical intervention.^17,37

Pathologic evaluations of the nasopharyngeal masses associated with the PCPC have been described in a handful of publications, but histologic features have not been reported in detail. Masses have been variously described as “teratoma,” “epignathus,” and “dermoid.”^37,39,40 Our histologic examination showed benign disorganized diverse tissue types, including ectopic ganglionated smooth muscle resembling the muscularis propria. Even though 2 of our 12 cases with nasopharyngeal lesions did not show clear PCPC on imaging, we suggest the term “PCPC-associated malformation” to help resolve the disparate terminology used previously and to convey the non-neoplastic, malformative nature of the mass.

To the best of our knowledge, this is the largest cohort of patients with MGDA with skull base midline abnormalities. On the basis of the overlapping critical periods of development for the frontonasal process, midfacial structures, and primordium of the eyes, MGDA is believed to emerge from a single insult occurring during forebrain induction. However, the nature of the embryologic defect remains the subject of debate.^3,30 We found nasopharyngeal lesions in 10 subjects with PCPC, 5 with apposed margins and 1 patient with an off-midline sphenoid cleft. Searching for nasopharyngeal masses is important regardless of the PCPC morphology and potentially impacts the surgical approach.^41⇓-43 There is also a continuum of abnormalities associated with the PCPC, ranging from mild protrusion of pituitary tissue into the craniopharyngeal canal to an overt sphenoid cephalocele.

While not the focus of this report, 7 subjects (21.9%) had MMD or mild steno-occlusive vasculopathy. MMD is a chronic, occlusive, and progressive cerebral vasculopathy that usually affects the supraclinoidal segment of the ICA and its main branches.⁴⁴ Several reports have demonstrated the association of the MGDA and MMD, typically ipsilateral.^{31,32,45⇓⇓-48} It is believed that a deficiency during neuroectodermal genesis and subsequent mesodermal changes may be responsible for the association between these 2 entities.⁴⁵ Other ophthalmic findings related to MMD include retinal vascular occlusion, visual field defects secondary to hemorrhage or ischemia, and optic disc abnormalities.⁴⁵

This study demonstrates the inherent limitations of a single-center cross-sectional design, notably the absence of generalizability and the inability to establish causality. However, we contend that the rarity of our findings and associations mitigated these limitations. Moreover, our primary objective was to educate radiologists with supplementary findings that could help corroborate the diagnosis of MGDA.

CONCLUSIONS

Ipsilateral ON and chiasmatic thickening and deformity are commonly observed in MGDA and should not be mistaken for optic glioma. MGDA is associated with the PCPC, which becomes more challenging to diagnose as the sphenoid bone pneumatizes. Finally, a spectrum of PCPC-associated abnormalities exists, ranging from a thin tract with apposed margins to mild deformity and protrusion of pituitary gland into the PCPC, tubular or nodular PCPC associated nasopharyngeal malformations, and, less frequently, a sphenoid cephalocele.

Footnotes

↵# Drs. Firouzabadi and Soldatelli are co-first authors.
Disclosure forms provided by the authors are available with the full text and PDF of this article at www.ajnr.org.

References

1.↵
1. Kindler P
. Morning glory syndrome: unusual congenital optic disk anomaly. Am J Ophthalmol 1970;69:376–84 doi:10.1016/0002-9394(70)92269-5 pmid:5418855
CrossRef PubMed
2.↵
1. Handmann M
. Hereditary, presumably congenital central gliotic degeneration of the optic nerve with special involvement of the central vessels. Klin Monatsbl Augenheilkd 1929;83:145–52
3.↵
1. Ellika S,
2. Robson CD,
3. Heidary G, et al
. Morning glory disc anomaly: characteristic MR imaging findings. AJNR Am J Neuroradiol 2013;34:2010–14 doi:10.3174/ajnr.A3542 pmid:23660287
Abstract/FREE Full Text
4.↵
1. Magrath GN,
2. Cheeseman EW,
3. Sarrica RA
. Morning glory optic disc anomaly. Pediatr Neurol 2013;49:517 doi:10.1016/j.pediatrneurol.2013.05.015 pmid:24095648
CrossRef PubMed
5.↵
1. Ceynowa DJ,
2. Wickström R,
3. Olsson M, et al
. Morning glory disc anomaly in childhood: a population-based study. Acta Ophthalmol 2015;93:626–34 doi:10.1111/aos.12778 pmid:26173377
CrossRef PubMed
6.↵
1. Azuma N,
2. Yamaguchi Y,
3. Handa H, et al
. Mutations of the PAX6 gene detected in patients with a variety of optic-nerve malformations. Am J Hum Genet 2003;72:1565–70 doi:10.1086/375555 pmid:12721955
CrossRef PubMed
7.↵
1. Apple DJ,
2. Rabb MF,
3. Walsh PM
. Congenital anomalies of the optic disc. Surv Ophthalmol 1982;27:3–41 doi:10.1016/0039-6257(82)90111-4 pmid:6753203
CrossRef PubMed
8.↵
1. Cogan DG
. Coloboma of optic nerve with overlay of peripapillary retina. Br J Ophthalmol 1978;62:347–50 doi:10.1136/bjo.62.6.347 pmid:666981
Abstract/FREE Full Text
9.↵
1. Gupta A,
2. Singh P,
3. Tripathy K
. Morning glory syndrome. In: StatPearls. StatPearls Publishing; 2023. http://www.ncbi.nlm.nih.gov/books/NBK580490/. Accessed July 20, 2023
10.↵
1. Eustis HS,
2. Sanders MR,
3. Zimmerman T
. Morning glory syndrome in children: association with endocrine and central nervous system anomalies. Arch Ophthalmol Chic Ophthalmol 1994;112:204–07 doi:10.1001/archopht.1994.01090140080027 pmid:8311773
CrossRef PubMed
11.↵
1. Traboulsi EI
. Morning glory disc anomaly or optic disc coloboma? Arch Ophthalmol Chic Ophthalmol 1994;112:153 doi:10.1001/archopht.1994.01090140027003 pmid:8311757
CrossRef PubMed
12.↵
1. Araissi AB,
2. Fayed A,
3. Helmy Y
. Bilateral morning glory syndrome with bilateral persistent fetal vasculature in a patient with Joubert’s syndrome. Case Rep Med 2020;2020:5872758 doi:10.1155/2020/5872758 pmid:32849877
CrossRef PubMed
13.↵
1. Asakura Y,
2. Muroya K,
3. Hanakawa J, et al
. Combined pituitary hormone deficiency with unique pituitary dysplasia and morning glory syndrome related to a heterozygous PROKR2 mutation. Clin Pediatr Endocrinol 2015;24:27–32 doi:10.1297/cpe.24.27 pmid:25678757
CrossRef PubMed
14.↵
1. Chang S,
2. Gregory-Roberts E,
3. Chen R
. Retinal detachment associated with optic disc colobomas and morning glory syndrome. Eye (Lond) 2012;26:494–500 doi:10.1038/eye.2011.354 pmid:22241012
CrossRef PubMed
15.↵
1. Minotto I,
2. Abdala N,
3. Miachon AAS, et al
. Basal encephalocele associated with morning glory syndrome: case report. Arq Neuropsiquiatr 2007;65:988–91 doi:10.1590/s0004-282x2007000600013 pmid:18094860
CrossRef PubMed
16.↵
1. D'Amico A,
2. Ugga L,
3. Cuocolo R, et al
. Persisting embryonal infundibular recess in morning glory syndrome: clinical report of a novel association. AJNR Am J Neuroradiol 2019;40:899–902 doi:10.3174/ajnr.A6005 pmid:30846438
Abstract/FREE Full Text
17.↵
1. Kasim N,
2. Choudhri A,
3. Alemzadeh R
. Craniopharyngeal canal, morning glory disc anomaly and hypopituitarism: what do they have in common? Oxf Med Case Reports 2018;2018:omy018 doi:10.1093/omcr/omy018 pmid:29977576
CrossRef PubMed
18.↵
1. Doneda C,
2. Pinelli L,
3. Scaramuzzi M, et al
. Morning glory disc anomaly associated with ipsilateral optic nerve and chiasm thickening: three cases and review of the literature. Neuropediatrics 2017;48:463–66 doi:10.1055/s-0037-1603642 pmid:28599324
CrossRef PubMed
19.↵
1. Bandopadhayay P,
2. Dagi L,
3. Robison N, et al
. Morning glory disc anomaly in association with ipsilateral optic nerve glioma. Arch Ophthalmol 2012;130:1082–83 doi:10.1001/archophthalmol.2012.412 pmid:22893090
CrossRef PubMed
20.↵
1. Kinori M,
2. Smiley NP,
3. Zeid JL
. Morning glory disc anomaly and ipsilateral sporadic optic pathway glioma. Am J Ophthalmol Case Rep 2018;10:16–17 doi:10.1016/j.ajoc.2018.01.035 pmid:29780905
CrossRef PubMed
21.↵
1. Poillon G,
2. Henry A,
3. Bergès O, et al
; Morning Glory Disc Anomaly Study Group. Optic pathways enlargement on magnetic resonance imaging in patients with morning glory disc anomaly. Ophthalmology 2021;128:172–74 doi:10.1016/j.ophtha.2020.06.060 pmid:32622846
CrossRef PubMed
22.↵
1. Nguyen DT,
2. Boddaert N,
3. Bremond-Gignac D, et al
. Optic nerve abnormalities in morning glory disc anomaly: an MRI study. J Neuroophthalmol 2022;42:199–202 doi:10.1097/WNO.0000000000001412 pmid:34812761
CrossRef PubMed
23.↵
1. Manschot WA
. Morning glory syndrome: a histopathological study. Br J Ophthalmol 1990;74:56–58 doi:10.1136/bjo.74.1.56 pmid:2306447
Abstract/FREE Full Text
24.↵
1. Auber AE,
2. O’Hara M
. Morning glory syndrome. MR imaging. Clin Imaging 1999;23:152–58 doi:10.1016/s0899-7071(99)00118-7 pmid:10506908
CrossRef PubMed
25.↵
1. Traboulsi EI
. Morning glory disk anomaly: more than meets the eye. J AAPOS 2009;13:333–34 doi:10.1016/j.jaapos.2009.05.015 pmid:19683183
CrossRef PubMed
26.↵
1. Borghei-Razavi H,
2. Shibao S,
3. Schick U
. Prechiasmatic transection of the optic nerve in optic nerve glioma: technical description and surgical outcome. Neurosurg Rev 2017;40:135–41 doi:10.1007/s10143-016-0747-2 pmid:27230830
CrossRef PubMed
27.↵
1. Giannini C,
2. Reynolds C,
3. Leavitt JA, et al
. Choristoma of the optic nerve: case report. Neurosurgery 2002;50:1125–28 doi:10.1097/00006123-200205000-00032 pmid:11987274
CrossRef PubMed
28.↵
1. Tornqvist K,
2. Ericsson A,
3. Källén B
. Optic nerve hypoplasia: risk factors and epidemiology. Acta Ophthalmol Scand 2002;80:300–04 doi:10.1034/j.1600-0420.2002.800313.x pmid:12059870
CrossRef PubMed
29.↵
1. Liu Q,
2. Wang KJ,
3. Zhu SQ
. A novel p.G112E mutation in BFSP2 associated with autosomal dominant pulverulent cataract with sutural opacities. Curr Eye Res 2014;39:1013–19 doi:10.3109/02713683.2014.891749 pmid:24654948
CrossRef PubMed
30.↵
1. Quah BL,
2. Hamilton J,
3. Blaser S, et al
. Morning glory disc anomaly, midline cranial defects and abnormal carotid circulation: an association worth looking for. Pediatr Radiol 2005;35:525–28 doi:10.1007/s00247-004-1345-y pmid:15480611
CrossRef PubMed
31.↵
1. Loddenkemper T,
2. Friedman NR,
3. Ruggieri PM, et al
. Pituitary stalk duplication in association with moya moya disease and bilateral morning glory disc anomaly: broadening the clinical spectrum of midline defects. J Neurol 2008;255:885–90 doi:10.1007/s00415-008-0799-5 pmid:18350354
CrossRef PubMed
32.↵
1. Pavanello M,
2. Fiaschi P,
3. Accogli A, et al
. A rare triad of morning glory disc anomaly, moyamoya vasculopathy, and transsphenoidal cephalocele: pathophysiological considerations and surgical management. Neurol Sci 2021;42:5433–39 doi:10.1007/s10072-021-05221-2 pmid:33825116
CrossRef PubMed
33.↵
1. Rao RC,
2. Larson SA,
3. Dlouhy BJ
. Growth hormone deficiency, basal encephalocele, and morning glory anomaly. Ophthalmology 2017;124:1531 doi:10.1016/j.ophtha.2017.03.050 pmid:28938928
CrossRef PubMed
34.↵
1. Altun A,
2. Altun G,
3. Kurna SA, et al
. Unilateral morning glory optic disc anomaly in a case with Down syndrome. BMC Ophthalmol 2014;14:48 doi:10.1186/1471-2415-14-48 pmid:24725623
CrossRef PubMed
35.↵
1. Virupakshaiah A,
2. Teixeira SR,
3. Sotardi S, et al
. Frontonasal dysplasia: a diagnostic challenge with fetal MRI in twin pregnancy. Child Neurol Open 2023;10:2329048X231157147 doi:10.1177/2329048X231157147 pmid:36910596
CrossRef PubMed
36.↵
1. Hori A,
2. Schmidt D,
3. Rickels E
. Pharyngeal pituitary: development, malformation, and tumorigenesis. Acta Neuropathol 1999;98:262–72 doi:10.1007/s004010051079 pmid:10483784
CrossRef PubMed
37.↵
1. Abele TA,
2. Salzman KL,
3. Harnsberger HR, et al
. Craniopharyngeal canal and its spectrum of pathology. AJNR Am J Neuroradiol 2014;35:772–77 doi:10.3174/ajnr.A3745 pmid:24184521
Abstract/FREE Full Text
38.↵
1. Ikeda H,
2. Suzuki J,
3. Sasano N, et al
. The development and morphogenesis of the human pituitary gland. Anat Embryol (Berl) 1988;178:327–36 doi:10.1007/BF00698663 pmid:3177887
CrossRef PubMed
39.↵
1. Currarino G,
2. Maravilla KR,
3. Salyer KE
. Transsphenoidal canal (large craniopharyngeal canal) and its pathologic implications. AJNR Am J Neuroradiol 1985;6:39–43 pmid:3918419
Abstract/FREE Full Text
40.↵
1. Cohen R,
2. Nelson MD,
3. Segall HD
. Epignathic teratoma associated with craniopharyngeal canal. AJNR Am J Neuroradiol 1989;10:652 pmid:2502001
FREE Full Text
41.↵
1. Perogiannaki A,
2. Chandra J,
3. Buchanan C, et al
. Nasopharyngeal glial heterotopia, ectopic pituitary and craniopharyngeal canal. Arch Dis Child 2023;108:348–49 doi:10.1136/archdischild-2022-325086 pmid:36863847
FREE Full Text
42.↵
1. Rajasekar G,
2. Nair P,
3. Abraham M, et al
. Endoscopic endonasal repair of a persistent craniopharyngeal canal and sphenoid meningoencephalocele: case report and review of literature. World Neurosurg 2019;122:196–202 PMC]doi:10.1016/j.wneu.2018.10.138 pmid:30391602
CrossRef PubMed
43.↵
1. Sioshansi PC,
2. Vezina G,
3. Yaun AL, et al
. Considering the ectopic pituitary gland in evaluation of the nasopharyngeal mass. JAMA Otolaryngol Head Neck Surg 2015;141:649–53 doi:10.1001/jamaoto.2015.0706 pmid:25974707
CrossRef PubMed
44.↵
1. Kim JS
. Moyamoya disease: epidemiology, clinical features, and diagnosis. J Stroke 2016;18:2–11 doi:10.5853/jos.2015.01627 pmid:26846755
CrossRef PubMed
45.↵
1. Wang YY,
2. Zhou KY,
3. Ye Y, et al
. Moyamoya disease associated with morning glory disc anomaly and other ophthalmic findings: a mini-review. Front Neurol 2020;11:338 doi:10.3389/fneur.2020.00338 pmid:32499749
CrossRef PubMed
46.↵
1. Bakri SJ,
2. Siker D,
3. Masaryk T, et al
. Ocular malformations, moyamoya disease, and midline cranial defects: a distinct syndrome. Am J Ophthalmol 1999;127:356–57 doi:10.1016/s0002-9394(98)00317-1 pmid:10088755
CrossRef PubMed
47.↵
1. Krishnan C,
2. Roy A,
3. Traboulsi E
. Morning glory disk anomaly, choroidal coloboma, and congenital constrictive malformations of the internal carotid arteries (moyamoya disease). Ophthalmic Genet 2000;21:21–24 pmid:10779846
CrossRef PubMed
48.↵
1. Massaro M,
2. Thorarensen O,
3. Liu GT, et al
. Morning glory disc anomaly and moyamoya vessels. Arch Ophthalmol Chic Ophthalmol 1998;116:253–54 pmid:9488287
PubMed

Received January 9, 2024.
Accepted after revision March 18, 2024.

In this issue

Download PDF

Email Article

Citation Tools

Purchase

Cited By...

No citing articles found.

More in this TOC Section

Show more PEDIATRIC NEUROIMAGING

[1] 1.↵
Kindler P
. Morning glory syndrome: unusual congenital optic disk anomaly. Am J Ophthalmol 1970;69:376–84 doi:10.1016/0002-9394(70)92269-5 pmid:5418855
CrossRef PubMed

[2] Kindler P

[3] 2.↵
Handmann M
. Hereditary, presumably congenital central gliotic degeneration of the optic nerve with special involvement of the central vessels. Klin Monatsbl Augenheilkd 1929;83:145–52

[4] Handmann M

[5] 3.↵
Ellika S,
Robson CD,
Heidary G, et al
. Morning glory disc anomaly: characteristic MR imaging findings. AJNR Am J Neuroradiol 2013;34:2010–14 doi:10.3174/ajnr.A3542 pmid:23660287
Abstract/FREE Full Text

[6] Ellika S,

[7] Robson CD,

[8] Heidary G, et al

[9] 4.↵
Magrath GN,
Cheeseman EW,
Sarrica RA
. Morning glory optic disc anomaly. Pediatr Neurol 2013;49:517 doi:10.1016/j.pediatrneurol.2013.05.015 pmid:24095648
CrossRef PubMed

[10] Magrath GN,

[11] Cheeseman EW,

[12] Sarrica RA

[13] 5.↵
Ceynowa DJ,
Wickström R,
Olsson M, et al
. Morning glory disc anomaly in childhood: a population-based study. Acta Ophthalmol 2015;93:626–34 doi:10.1111/aos.12778 pmid:26173377
CrossRef PubMed

[14] Ceynowa DJ,

[15] Wickström R,

[16] Olsson M, et al

[17] 6.↵
Azuma N,
Yamaguchi Y,
Handa H, et al
. Mutations of the PAX6 gene detected in patients with a variety of optic-nerve malformations. Am J Hum Genet 2003;72:1565–70 doi:10.1086/375555 pmid:12721955
CrossRef PubMed

[18] Azuma N,

[19] Yamaguchi Y,

[20] Handa H, et al

[21] 7.↵
Apple DJ,
Rabb MF,
Walsh PM
. Congenital anomalies of the optic disc. Surv Ophthalmol 1982;27:3–41 doi:10.1016/0039-6257(82)90111-4 pmid:6753203
CrossRef PubMed

[22] Apple DJ,

[23] Rabb MF,

[24] Walsh PM

[25] 8.↵
Cogan DG
. Coloboma of optic nerve with overlay of peripapillary retina. Br J Ophthalmol 1978;62:347–50 doi:10.1136/bjo.62.6.347 pmid:666981
Abstract/FREE Full Text

[26] Cogan DG

[27] 9.↵
Gupta A,
Singh P,
Tripathy K
. Morning glory syndrome. In: StatPearls. StatPearls Publishing; 2023. http://www.ncbi.nlm.nih.gov/books/NBK580490/. Accessed July 20, 2023

[28] Gupta A,

[29] Singh P,

[30] Tripathy K

[31] 10.↵
Eustis HS,
Sanders MR,
Zimmerman T
. Morning glory syndrome in children: association with endocrine and central nervous system anomalies. Arch Ophthalmol Chic Ophthalmol 1994;112:204–07 doi:10.1001/archopht.1994.01090140080027 pmid:8311773
CrossRef PubMed

[32] Eustis HS,

[33] Sanders MR,

[34] Zimmerman T

[35] 11.↵
Traboulsi EI
. Morning glory disc anomaly or optic disc coloboma? Arch Ophthalmol Chic Ophthalmol 1994;112:153 doi:10.1001/archopht.1994.01090140027003 pmid:8311757
CrossRef PubMed

[36] Traboulsi EI

[37] 12.↵
Araissi AB,
Fayed A,
Helmy Y
. Bilateral morning glory syndrome with bilateral persistent fetal vasculature in a patient with Joubert’s syndrome. Case Rep Med 2020;2020:5872758 doi:10.1155/2020/5872758 pmid:32849877
CrossRef PubMed

[38] Araissi AB,

[39] Fayed A,

[40] Helmy Y

[41] 13.↵
Asakura Y,
Muroya K,
Hanakawa J, et al
. Combined pituitary hormone deficiency with unique pituitary dysplasia and morning glory syndrome related to a heterozygous PROKR2 mutation. Clin Pediatr Endocrinol 2015;24:27–32 doi:10.1297/cpe.24.27 pmid:25678757
CrossRef PubMed

[42] Asakura Y,

[43] Muroya K,

[44] Hanakawa J, et al

[45] 14.↵
Chang S,
Gregory-Roberts E,
Chen R
. Retinal detachment associated with optic disc colobomas and morning glory syndrome. Eye (Lond) 2012;26:494–500 doi:10.1038/eye.2011.354 pmid:22241012
CrossRef PubMed

[46] Chang S,

[47] Gregory-Roberts E,

[48] Chen R

[49] 15.↵
Minotto I,
Abdala N,
Miachon AAS, et al
. Basal encephalocele associated with morning glory syndrome: case report. Arq Neuropsiquiatr 2007;65:988–91 doi:10.1590/s0004-282x2007000600013 pmid:18094860
CrossRef PubMed

[50] Minotto I,

[51] Abdala N,

[52] Miachon AAS, et al

[53] 16.↵
D'Amico A,
Ugga L,
Cuocolo R, et al
. Persisting embryonal infundibular recess in morning glory syndrome: clinical report of a novel association. AJNR Am J Neuroradiol 2019;40:899–902 doi:10.3174/ajnr.A6005 pmid:30846438
Abstract/FREE Full Text

[54] D'Amico A,

[55] Ugga L,

[56] Cuocolo R, et al

[57] 17.↵
Kasim N,
Choudhri A,
Alemzadeh R
. Craniopharyngeal canal, morning glory disc anomaly and hypopituitarism: what do they have in common? Oxf Med Case Reports 2018;2018:omy018 doi:10.1093/omcr/omy018 pmid:29977576
CrossRef PubMed

[58] Kasim N,

[59] Choudhri A,

[60] Alemzadeh R

[61] 18.↵
Doneda C,
Pinelli L,
Scaramuzzi M, et al
. Morning glory disc anomaly associated with ipsilateral optic nerve and chiasm thickening: three cases and review of the literature. Neuropediatrics 2017;48:463–66 doi:10.1055/s-0037-1603642 pmid:28599324
CrossRef PubMed

[62] Doneda C,

[63] Pinelli L,

[64] Scaramuzzi M, et al

[65] 19.↵
Bandopadhayay P,
Dagi L,
Robison N, et al
. Morning glory disc anomaly in association with ipsilateral optic nerve glioma. Arch Ophthalmol 2012;130:1082–83 doi:10.1001/archophthalmol.2012.412 pmid:22893090
CrossRef PubMed

[66] Bandopadhayay P,

[67] Dagi L,

[68] Robison N, et al

[69] 20.↵
Kinori M,
Smiley NP,
Zeid JL
. Morning glory disc anomaly and ipsilateral sporadic optic pathway glioma. Am J Ophthalmol Case Rep 2018;10:16–17 doi:10.1016/j.ajoc.2018.01.035 pmid:29780905
CrossRef PubMed

[70] Kinori M,

[71] Smiley NP,

[72] Zeid JL

[73] 21.↵
Poillon G,
Henry A,
Bergès O, et al
; Morning Glory Disc Anomaly Study Group. Optic pathways enlargement on magnetic resonance imaging in patients with morning glory disc anomaly. Ophthalmology 2021;128:172–74 doi:10.1016/j.ophtha.2020.06.060 pmid:32622846
CrossRef PubMed

[74] Poillon G,

[75] Henry A,

[76] Bergès O, et al

[77] 22.↵
Nguyen DT,
Boddaert N,
Bremond-Gignac D, et al
. Optic nerve abnormalities in morning glory disc anomaly: an MRI study. J Neuroophthalmol 2022;42:199–202 doi:10.1097/WNO.0000000000001412 pmid:34812761
CrossRef PubMed

[78] Nguyen DT,

[79] Boddaert N,

[80] Bremond-Gignac D, et al

[81] 23.↵
Manschot WA
. Morning glory syndrome: a histopathological study. Br J Ophthalmol 1990;74:56–58 doi:10.1136/bjo.74.1.56 pmid:2306447
Abstract/FREE Full Text

[82] Manschot WA

[83] 24.↵
Auber AE,
O’Hara M
. Morning glory syndrome. MR imaging. Clin Imaging 1999;23:152–58 doi:10.1016/s0899-7071(99)00118-7 pmid:10506908
CrossRef PubMed

[84] Auber AE,

[85] O’Hara M

[86] 25.↵
Traboulsi EI
. Morning glory disk anomaly: more than meets the eye. J AAPOS 2009;13:333–34 doi:10.1016/j.jaapos.2009.05.015 pmid:19683183
CrossRef PubMed

[87] Traboulsi EI

[88] 26.↵
Borghei-Razavi H,
Shibao S,
Schick U
. Prechiasmatic transection of the optic nerve in optic nerve glioma: technical description and surgical outcome. Neurosurg Rev 2017;40:135–41 doi:10.1007/s10143-016-0747-2 pmid:27230830
CrossRef PubMed

[89] Borghei-Razavi H,

[90] Shibao S,

[91] Schick U

[92] 27.↵
Giannini C,
Reynolds C,
Leavitt JA, et al
. Choristoma of the optic nerve: case report. Neurosurgery 2002;50:1125–28 doi:10.1097/00006123-200205000-00032 pmid:11987274
CrossRef PubMed

[93] Giannini C,

[94] Reynolds C,

[95] Leavitt JA, et al

[96] 28.↵
Tornqvist K,
Ericsson A,
Källén B
. Optic nerve hypoplasia: risk factors and epidemiology. Acta Ophthalmol Scand 2002;80:300–04 doi:10.1034/j.1600-0420.2002.800313.x pmid:12059870
CrossRef PubMed

[97] Tornqvist K,

[98] Ericsson A,

[99] Källén B

[100] 29.↵
Liu Q,
Wang KJ,
Zhu SQ
. A novel p.G112E mutation in BFSP2 associated with autosomal dominant pulverulent cataract with sutural opacities. Curr Eye Res 2014;39:1013–19 doi:10.3109/02713683.2014.891749 pmid:24654948
CrossRef PubMed

[101] Liu Q,

[102] Wang KJ,

[103] Zhu SQ

[104] 30.↵
Quah BL,
Hamilton J,
Blaser S, et al
. Morning glory disc anomaly, midline cranial defects and abnormal carotid circulation: an association worth looking for. Pediatr Radiol 2005;35:525–28 doi:10.1007/s00247-004-1345-y pmid:15480611
CrossRef PubMed

[105] Quah BL,

[106] Hamilton J,

[107] Blaser S, et al

[108] 31.↵
Loddenkemper T,
Friedman NR,
Ruggieri PM, et al
. Pituitary stalk duplication in association with moya moya disease and bilateral morning glory disc anomaly: broadening the clinical spectrum of midline defects. J Neurol 2008;255:885–90 doi:10.1007/s00415-008-0799-5 pmid:18350354
CrossRef PubMed

[109] Loddenkemper T,

[110] Friedman NR,

[111] Ruggieri PM, et al

[112] 32.↵
Pavanello M,
Fiaschi P,
Accogli A, et al
. A rare triad of morning glory disc anomaly, moyamoya vasculopathy, and transsphenoidal cephalocele: pathophysiological considerations and surgical management. Neurol Sci 2021;42:5433–39 doi:10.1007/s10072-021-05221-2 pmid:33825116
CrossRef PubMed

[113] Pavanello M,

[114] Fiaschi P,

[115] Accogli A, et al

[116] 33.↵
Rao RC,
Larson SA,
Dlouhy BJ
. Growth hormone deficiency, basal encephalocele, and morning glory anomaly. Ophthalmology 2017;124:1531 doi:10.1016/j.ophtha.2017.03.050 pmid:28938928
CrossRef PubMed

[117] Rao RC,

[118] Larson SA,

[119] Dlouhy BJ

[120] 34.↵
Altun A,
Altun G,
Kurna SA, et al
. Unilateral morning glory optic disc anomaly in a case with Down syndrome. BMC Ophthalmol 2014;14:48 doi:10.1186/1471-2415-14-48 pmid:24725623
CrossRef PubMed

[121] Altun A,

[122] Altun G,

[123] Kurna SA, et al

[124] 35.↵
Virupakshaiah A,
Teixeira SR,
Sotardi S, et al
. Frontonasal dysplasia: a diagnostic challenge with fetal MRI in twin pregnancy. Child Neurol Open 2023;10:2329048X231157147 doi:10.1177/2329048X231157147 pmid:36910596
CrossRef PubMed

[125] Virupakshaiah A,

[126] Teixeira SR,

[127] Sotardi S, et al

[128] 36.↵
Hori A,
Schmidt D,
Rickels E
. Pharyngeal pituitary: development, malformation, and tumorigenesis. Acta Neuropathol 1999;98:262–72 doi:10.1007/s004010051079 pmid:10483784
CrossRef PubMed

[129] Hori A,

[130] Schmidt D,

[131] Rickels E

[132] 37.↵
Abele TA,
Salzman KL,
Harnsberger HR, et al
. Craniopharyngeal canal and its spectrum of pathology. AJNR Am J Neuroradiol 2014;35:772–77 doi:10.3174/ajnr.A3745 pmid:24184521
Abstract/FREE Full Text

[133] Abele TA,

[134] Salzman KL,

[135] Harnsberger HR, et al

[136] 38.↵
Ikeda H,
Suzuki J,
Sasano N, et al
. The development and morphogenesis of the human pituitary gland. Anat Embryol (Berl) 1988;178:327–36 doi:10.1007/BF00698663 pmid:3177887
CrossRef PubMed

[137] Ikeda H,

[138] Suzuki J,

[139] Sasano N, et al

[140] 39.↵
Currarino G,
Maravilla KR,
Salyer KE
. Transsphenoidal canal (large craniopharyngeal canal) and its pathologic implications. AJNR Am J Neuroradiol 1985;6:39–43 pmid:3918419
Abstract/FREE Full Text

[141] Currarino G,

[142] Maravilla KR,

[143] Salyer KE

[144] 40.↵
Cohen R,
Nelson MD,
Segall HD
. Epignathic teratoma associated with craniopharyngeal canal. AJNR Am J Neuroradiol 1989;10:652 pmid:2502001
FREE Full Text

[145] Cohen R,

[146] Nelson MD,

[147] Segall HD

[148] 41.↵
Perogiannaki A,
Chandra J,
Buchanan C, et al
. Nasopharyngeal glial heterotopia, ectopic pituitary and craniopharyngeal canal. Arch Dis Child 2023;108:348–49 doi:10.1136/archdischild-2022-325086 pmid:36863847
FREE Full Text

[149] Perogiannaki A,

[150] Chandra J,

[151] Buchanan C, et al

[152] 42.↵
Rajasekar G,
Nair P,
Abraham M, et al
. Endoscopic endonasal repair of a persistent craniopharyngeal canal and sphenoid meningoencephalocele: case report and review of literature. World Neurosurg 2019;122:196–202 PMC]doi:10.1016/j.wneu.2018.10.138 pmid:30391602
CrossRef PubMed

[153] Rajasekar G,

[154] Nair P,

[155] Abraham M, et al

[156] 43.↵
Sioshansi PC,
Vezina G,
Yaun AL, et al
. Considering the ectopic pituitary gland in evaluation of the nasopharyngeal mass. JAMA Otolaryngol Head Neck Surg 2015;141:649–53 doi:10.1001/jamaoto.2015.0706 pmid:25974707
CrossRef PubMed

[157] Sioshansi PC,

[158] Vezina G,

[159] Yaun AL, et al

[160] 44.↵
Kim JS
. Moyamoya disease: epidemiology, clinical features, and diagnosis. J Stroke 2016;18:2–11 doi:10.5853/jos.2015.01627 pmid:26846755
CrossRef PubMed

[161] Kim JS

[162] 45.↵
Wang YY,
Zhou KY,
Ye Y, et al
. Moyamoya disease associated with morning glory disc anomaly and other ophthalmic findings: a mini-review. Front Neurol 2020;11:338 doi:10.3389/fneur.2020.00338 pmid:32499749
CrossRef PubMed

[163] Wang YY,

[164] Zhou KY,

[165] Ye Y, et al

[166] 46.↵
Bakri SJ,
Siker D,
Masaryk T, et al
. Ocular malformations, moyamoya disease, and midline cranial defects: a distinct syndrome. Am J Ophthalmol 1999;127:356–57 doi:10.1016/s0002-9394(98)00317-1 pmid:10088755
CrossRef PubMed

[167] Bakri SJ,

[168] Siker D,

[169] Masaryk T, et al

[170] 47.↵
Krishnan C,
Roy A,
Traboulsi E
. Morning glory disk anomaly, choroidal coloboma, and congenital constrictive malformations of the internal carotid arteries (moyamoya disease). Ophthalmic Genet 2000;21:21–24 pmid:10779846
CrossRef PubMed

[171] Krishnan C,

[172] Roy A,

[173] Traboulsi E

[174] 48.↵
Massaro M,
Thorarensen O,
Liu GT, et al
. Morning glory disc anomaly and moyamoya vessels. Arch Ophthalmol Chic Ophthalmol 1998;116:253–54 pmid:9488287
PubMed

[175] Massaro M,

[176] Thorarensen O,

[177] Liu GT, et al

Main menu

User menu

Search

American Journal of Neuroradiology

Morning Glory Disc Anomaly: Expanding the MR Phenotype

Abstract

ABBREVIATIONS:

MATERIALS AND METHODS

Subjects

Imaging Protocols

Imaging Review and Analysis

Pathologic Examination

RESULTS

Study Population

Imaging Findings

ON and Chiasm.

Central Skull Base and Pituitary Gland.

Nasopharyngeal Lesions.

Other Findings

DISCUSSION

CONCLUSIONS

Footnotes

References

In this issue

Citation Manager Formats

Related Articles

Cited By...

More in this TOC Section

Similar Articles

News and Updates

Resources

Opportunities

American Society of Neuroradiology

Main menu

User menu

Search

Morning Glory Disc Anomaly: Expanding the MR Phenotype

Abstract

ABBREVIATIONS:

MATERIALS AND METHODS

Subjects

Imaging Protocols

Imaging Review and Analysis

Pathologic Examination

RESULTS

Study Population

Imaging Findings

ON and Chiasm.

Central Skull Base and Pituitary Gland.

Nasopharyngeal Lesions.

Other Findings

DISCUSSION

CONCLUSIONS

Footnotes

References

In this issue

Citation Manager Formats

Jump to section

Related Articles

Cited By...

More in this TOC Section

Similar Articles

News and Updates

Resources

Opportunities

American Society of Neuroradiology
