The “White Gray Sign” Identifies the Central Sulcus on 3T High-Resolution T1-Weighted Images

O.F. Kaneko; N.J. Fischbein; J. Rosenberg; M. Wintermark; M.M. Zeineh

doi:10.3174/ajnr.A5014

Abstract

BACKGROUND AND PURPOSE: The central sulcus is an important anatomic landmark, but most methods of identifying it rely on variable gyral and sulcal patterns. We describe and assess the accuracy of reduced gray-white contrast along the central sulcus, an observation we term the “white gray sign.”

MATERIALS AND METHODS: We conducted a retrospective review of 51 fMRIs with a T1-weighted 3D inversion recovery fast-spoiled gradient-echo and concomitant hand-motor fMRI, which served as confirmation for the location of the central sulcus. To measure gray-white contrast across the central and adjacent sulci, we performed a quantitative analysis of 25 normal hemispheres along the anterior and posterior cortices and intervening white matter of the pre- and postcentral gyri. 3D inversion recovery fast-spoiled gradient-echo axial images from 51 fMRIs were then evaluated by 2 raters for the presence of the white gray sign as well as additional established signs of the central sulcus: the bracket, cortical thickness, omega, and T signs.

RESULTS: The mean gray-white contrast along the central sulcus was 0.218 anteriorly and 0.237 posteriorly, compared with 0.320 and 0.295 along the posterior precentral and anterior postcentral sulci, respectively (P < .001). Both raters correctly identified the central sulcus in all 35 normal and 16 abnormal hemispheres. The white gray sign had the highest agreement of all signs between raters and was rated as present the most often among all the signs.

CONCLUSIONS: Reduced gray-white contrast around the central sulcus is a reliable sign for identification of the central sulcus on 3D inversion recovery fast-spoiled gradient-echo images.

The central sulcus is an important anatomic landmark that defines the location of the primary motor cortex, a region of the brain critical for all essential motor tasks. Because injury to this region has irreversible consequences and other brain regions cannot compensate for its loss,¹ it is important to clearly identify the central sulcus for surgical planning, especially in the context of focal brain lesions. With knowledge of the location of the central sulcus, DTI and tractography can be used to identify the corticospinal tract emanating from the primary motor cortex. fMRI is a proven technique to identify the primary motor cortex for surgical planning.^{2⇓⇓⇓–6} It is still desirable, however, to identify the central sulcus from structural imaging for several reasons: this can provide an estimate of the proximity of a lesion to the motor strip to determine the necessity of fMRI, guide the tasks chosen for fMRI, serve as a surrogate if fMRI is not possible because of patient cooperation and compliance or technical factors, and assist in determining the risks of surgery.⁷

Numerous methods besides fMRI for identifying the central sulcus have been previously described on both CT and MR imaging. Most rely on identifying gyral and sulcal patterns and relationships,^{8⇓⇓⇓⇓–13} which can be variable. Others involve complex image reformatting that most clinicians are untrained to produce or interpret.^14,15 Only a few signs, such as the difference in cortical thickness across the central sulcus, are based on differences in the underlying cytoarchitecture of the sensorimotor cortex.^16,17 Histologic studies and postmortem ex vivo high-resolution imaging have shown that in addition to the variation of the thickness of the 6 cellular layers of the sensorimotor cortex, there are also differences in myelin content that should be appreciable on MR imaging.^{18⇓⇓–21} Based on this latter histologic finding, we describe the “white gray sign,” which refers to the inherent increased T1 signal of the anterior and posterior cortices along the central sulcus, giving this gray matter a more white appearance (Fig 1). Specifically, we measure this contrast and assess the accuracy of this sign in identifying the central sulcus with reference to the criterion standard of fMRI.

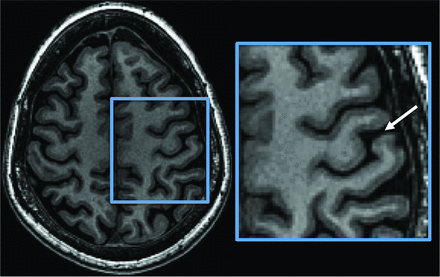

Fig 1.

The “white gray sign.” Axial high-resolution 3D inversion recovery fast-spoiled gradient-echo T1-weighted image demonstrates decreased gray-white contrast of the anterior and posterior cortices along the central sulcus (white arrow).

Materials and Methods

Study Population

Using a retrospective institutional review board–approved review, we identified 51 fMRI examinations from January 2014 to December 2015. We only analyzed 1 hemisphere per patient for which hand-motor fMRI was available. Patient ages ranged from 20–70 years (mean, 42.5 years) and 27 women and 24 men were included. Of the 51 hemispheres examined, 35 were morphologically normal (normal hemispheres were functionally evaluated either for cryptogenic epilepsy surgical planning or as a reference for contralateral pathology). A separate 16 hemispheres had lesions that affected the sensorimotor region of the analyzed hemisphere. Pathologies included AVM (n = 8), encephalomalacia (n = 3), neoplasm (n = 2), cavernous malformation (n = 2), and cyst (n = 1). In all hemispheres with pathology, fMRI was performed for presurgical planning for eloquent cortex lateralization and/or localization.

Imaging Protocol

Each study was performed at 3T and consisted of 1) a 1.0-mm isotropic 3D inversion recovery fast-spoiled gradient-echo sequence (axial 3D; TR, 9.2 ms; TE, 3.7 ms; TI, 400 ms; matrix, 256 × 256 × 164; field of view, 24 cm × 24 cm × 16.4 cm; in-plane acceleration, 2; 4 minutes, 13 seconds), and 2) an fMRI motor task consisting of 12 blocks of 10 seconds of finger tapping alternating with 10 seconds of rest (2D gradient-echo, echo-planar imaging; TR, 2500 ms; TE, 35 ms; 3-mm section thickness; 20-cm field of view; 64 × 64 matrix size). Both sequences were processed to produce hand-motor activation maps thresholded at a T-score of 2–3 by using DynaSuite Neuro 3.1 (Invivo, Gainesville, Florida). Functional images were interpreted on a PACS workstation.

Quantitative Analysis of the White Gray Sign

Twenty-five of the normal hemisphere structural MRIs were segmented using ITK-SNAP (www.itksnap.org).²² Using the fMRI as the reference for the central sulcus, on a single axial section at the level of the upper centrum semiovale, we manually segmented the following cortical regions of interest sequentially from anterior to posterior (Fig 2): cortex along the posterior bank of the precentral sulcus, cortex along the anterior bank of the central sulcus, cortex along the posterior bank of the central sulcus, and cortex along the anterior bank of the postcentral sulcus. For gray-white contrast computation, we manually segmented the white matter within the intervening precentral and postcentral gyri. All segmentations for both the cortices and the WM were at least 30 pixels in volume and thinned to avoid partial volume effect due to averaging with adjacent structures.

Fig 2.

Measurement of gray-white contrast. A, Cortical segmentations were drawn along both sides of the central sulcus (royal blue and yellow) as well as along the adjacent banks of the precentral and postcentral sulci (red and pink) and the intervening WM (green and light blue). B, Gray-white contrast (± standard deviation bars) along the central sulcus was significantly (P < .001) decreased both anteriorly and posteriorly compared with the contrast along the pre- and postcentral sulci, respectively.

Gray-white contrast for the 4 cortical regions was calculated by: (Subjacent WM average signal intensity − GM average signal intensity) / (Subjacent WM average signal intensity). A Student t test compared gray-white contrast differences between the precentral sulcus and central sulcus and between the central sulcus and postcentral sulcus using STATA (StataCorp, College Station, Texas).

Qualitative Analysis of the White Gray Sign

To test the performance of the white gray sign clinically and to compare that performance with previously described methods for identifying the central sulcus, 51 hemispheres from fMRI examinations were analyzed. Both normal (including the aforementioned 25 fMRIs) and abnormal hemispheres were analyzed.

Two readers (M.W., N.J.F.) with 16 and 26 years of neuroradiology experience, respectively, evaluated the 51 hemispheres for the presence or absence of the white gray sign as well as the bracket, cortical thickness difference, omega, and T signs (Fig 3). The raters were blinded to the functional data. The following rating scale was used: 1 = sign definitely not present; 2 = sign likely not present; 3 = sign likely present; and 4 = sign definitely present. Each rater also annotated the putative sulcus, and accuracy was confirmed by a coauthor (O.F.K.) with the fMRI hand-motor activation maps.

Fig 3.

Signs of the central sulcus rated in this study. Bracket = central sulcus points to the marginal sulcus. Cortical thickness = increased cortical thickness along the anterior compared with posterior bank of the central sulcus. Omega = characteristic omega shape of the hand-motor knob. T = superior frontal sulcus meets the precentral gyrus.

The 1–4 scale was then dichotomized to summarize the presence or absence of the individual signs (ie, 1–2 = not present; 3–4 = present). Rater agreement was assessed by summing the number of patients in which they agreed on a sign being present or absent divided by the total number of patients.

Statistical Analysis

Systematic disagreement between raters was assessed by a symmetry test, with a Bonferroni-corrected threshold of 0.01 for the 5 tests evaluated. Differences in presence of the white gray sign compared with the other signs across all hemispheres were tested for each rater by using a McNemar test, with a Bonferroni-corrected threshold of 0.0125 to correct for the 4 comparisons between signs. For cases in which the white gray sign outperformed another sign, a subsequent post hoc analysis did the same comparison separately for normal and abnormal hemispheres, with a Bonferroni-corrected threshold of 0.025.

Results

Quantitative Analysis of Gray-White Contrast around the Central Sulcus

On axial T1-weighted 3D inversion recovery fast-spoiled gradient-echo images of the 25 normal hemispheres, the mean gray-white contrast along the central sulcus was 0.218 ± 0.0356 anteriorly and 0.237 ± 0.0457 posteriorly compared with 0.320 ± 0.0318 and 0.295 ± 0.0485 along the precentral and postcentral sulci, respectively (Fig 2B). Differences in gray-white contrast were statistically significant, with P values of <.001. In all 25 hemispheres tested, the gray-white contrast was lower along the anterior bank of the central sulcus compared with the neighboring posterior bank of the precentral gyrus. In 23/25 (92%) cases, the contrast was lower along the posterior bank of the central sulcus compared with the neighboring anterior bank of the postcentral sulcus.

Qualitative Analysis of the White Gray Sign and Other Signs of the Central Sulcus

For the rater analyses of the 51 hemispheres, both raters correctly identified the central sulcus in all 35 normal and 16 abnormal hemispheres. Rater agreement for the bracket, cortical thickness, omega, T, and white gray signs was 43.1%, 45.1%, 74.5%, 62.8%, and 88.3%, respectively. The symmetry test was significant for the bracket and thickness signs (both P < .001), suggesting a systematic difference between raters in scores for these signs (Fig 4). The asymmetry was not statistically significant for the omega, T, and white gray signs, with P values of .267, .019, and .031, respectively. The white gray sign was reported statistically significantly more often than the following signs across all hemispheres: the bracket sign for both raters, the thickness sign for rater 1, and the omega and T signs for rater 2 (Table, Fig 4). The post hoc analysis of normal hemispheres showed that these differences held for the bracket sign for both raters, the thickness sign for rater 1, and the omega and T signs for rater 2.

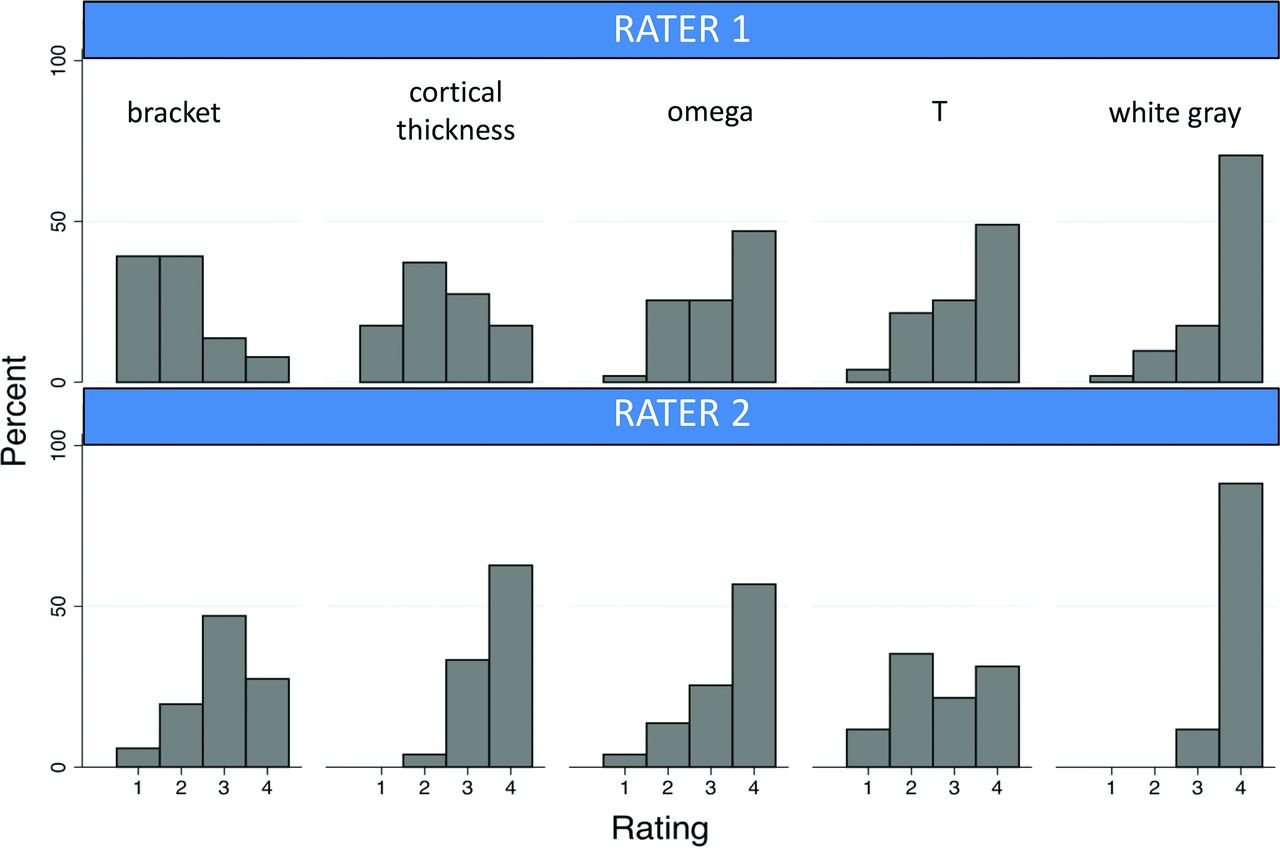

Fig 4.

Rater evaluation of signs of the central sulcus in 51 hemispheres (35 normal, 16 with pathology). 1 = definitely not present, 2 = likely not present, 3 = likely present, 4 = definitely present.

View this table:

Comparison of the white gray sign with other signs of the central sulcus^{^a}

For those 16 hemispheres that contained lesions affecting the central sulcus, rater 1 found the white gray sign in all 16 hemispheres, whereas rater 2 found the white gray sign in 11/16 hemispheres. An example lesion extending to the precentral gyrus does not interfere with the correct identification of the white gray sign (Fig 5). Performance of the additional signs for the abnormal hemispheres was as follows: bracket (rater 1, 2/16; rater 2, 10/16), cortical thickness (8/16, 14/16), omega sign (11/16, 14/16), and T sign (10/16, 7/16). The post hoc analysis of abnormal hemispheres showed that the white gray sign was reported statistically significantly more often than the bracket sign for rater 1 and the T sign for rater 2.

Fig 5.

A 22-year-old man with posterior left frontal grade 2 astrocytoma. A, Axial 3D inversion recovery fast-spoiled gradient-echo T1-weighted image shows the tumor centered along the anterior aspect of the precentral gyrus. The white gray sign is still noticeable as decreased contrast of the gray-white interface along the central sulcus (arrows). This is also appreciable on the contralateral normal side. B, Functional data with hand-motor tasks (light blue = right hand, yellow = left hand) confirm the location of the primary motor and somatosensory cortices.

Discussion

We describe an additional reliable central sulcus sign that is based upon the physiologic high T1 signal of the cortices along the central sulcus and, consequently, the decreased contrast with the adjacent WM. It is likely that the relatively increased T1 signal demonstrated on high-resolution inversion recovery fast-spoiled gradient-echo images is reflective of the increased myelin content of this tissue. Previously described differences in signal of the motor cortex on T2-FLAIR are also likely secondary to these differences in the underlying myeloarchitecture.^23,24 Thus, increased cortical thickness along the anterior bank of the central sulcus, in combination with the increased T1 signal within the cortex along both sides of the central sulcus, are together 2 distinct imaging markers for cytoarchitecture and myeloarchitecture that are likely to be robust for anatomic delineation.

There are several limitations to the current study. At our institution, all functional MR imaging examinations are performed at 3T; therefore, both the quantitative and qualitative portions of this study were also based only on 3T images, and we cannot assess if this sign would perform similarly at 1.5T. Although some volume averaging with the adjacent WM could occur in the cortical segmentations, in particular along the relatively thin posterior bank of the central sulcus, care was taken to confine the segmentations to cortices. Differences in gray-white contrast were only measured in normal hemispheres. Although the same relationship may not persist in the presence of local edema near a lesion, we have found that qualitatively, the white gray sign is identifiable along the entirety of the central sulcus, and this matches other imaging data regarding myelination along the central sulcus.²⁵ Regarding the rating portion of the study, both raters accurately identified the central sulcus in all 51 cases; however, it was not determined by which method they came to that conclusion. The 2 raters did not perfectly agree on all the signs, suggesting that these signs can all be subjective and dependent on factors such as reader training. Nevertheless, the white gray sign had the highest agreement and scored the highest among both raters in both normal and pathologic hemispheres. Future studies can evaluate the conspicuity of this finding on sequences other than T1-weighted inversion recovery fast-spoiled gradient-echo, the extension of this finding to other primary cortices, and the relationship with developmental aspects of myelination along the central sulcus.

Conclusions

We have shown that inherent differences in T1 signal of the cortices along the central sulcus lead to discrete and appreciable differences in gray-white contrast. Clinically, the “white gray sign” is a reliable method for identifying the central sulcus, which was found to be present in the highest proportion of cases compared with other previously described and well-known signs. Anatomic imaging methods that take advantage of knowledge of underlying cyto- and myeloarchitecture are powerful tools for determining functional segregation of brain structure.

Footnotes

Disclosures: Max Wintermark—UNRELATED: Board Membership: GE Healthcare and National Football League Advisory Board. Michael Zeineh—UNRELATED: Other: GE Healthcare, Comments: research funding.* *Money paid to the institution.

References

1.↵
2. Miyai I,
3. Suzuki T,
4. Kang J, et al
. Middle cerebral artery stroke that includes the premotor cortex reduces mobility outcome. Stroke 1999;30:1380–83 doi:10.1161/01.STR.30.7.1380 pmid:10390310
Abstract/FREE Full Text
2.↵
2. Hingwala D,
3. Thomas B,
4. Radhakrishnan A, et al
. Correlation between anatomic landmarks and fMRI in detection of the sensorimotor cortex in patients with structural lesions. Acta Radiol 2014;55:107–13 doi:10.1177/0284185113492455 pmid:23864066
Abstract/FREE Full Text
3.↵
2. Lehéricy S,
3. Duffau H,
4. Cornu P, et al
. Correspondence between functional magnetic resonance imaging somatotopy and individual brain anatomy of the central region: comparison with intraoperative stimulation in patients with brain tumors. J Neurosurg 2000;92:589–98 doi:10.3171/jns.2000.92.4.0589 pmid:10761647
CrossRef PubMed
4.↵
2. Morioka T,
3. Mizushima A,
4. Yamamoto T, et al
. Functional mapping of the sensorimotor cortex: combined use of magnetoencephalography, functional MRI, and motor evoked potentials. Neuroradiology 1995;37:526–30 doi:10.1007/BF00593709 pmid:8570046
CrossRef PubMed
5.↵
2. Morioka T,
3. Yamamoto T,
4. Mizushima A, et al
. Comparison of magnetoencephalography, functional MRI, and motor evoked potentials in the localization of the sensory-motor cortex. Neurol Res 1995;17:361–67 pmid:8584127
PubMed
6.↵
2. Wengenroth M,
3. Blatow M,
4. Guenther J, et al
. Diagnostic benefits of presurgical fMRI in patients with brain tumours in the primary sensorimotor cortex. Eur Radiol 2011;21:1517–25 doi:10.1007/s00330-011-2067-9 pmid:21271252
CrossRef PubMed
7.↵
2. Due-Tonnessen P,
3. Rasmussen I,
4. Berntsen EM, et al
. Identifying the central sulcus in patients with intra-axial lesions: a multicenter study comparing conventional presurgical MRI to topographical analysis and BOLD-fMRI. J Comput Assist Tomogr 2014;38:1–8 doi:10.1097/RCT.0b013e3182a589e0 pmid:24378889
CrossRef PubMed
8.↵
2. Naidich TP,
3. Blum JT,
4. Firestone MI
. The parasagittal line: an anatomic landmark for axial imaging. AJNR Am J Neuroradiol 2001;22:885–95 pmid:11337334
Abstract/FREE Full Text
9.↵
2. Rodrigues T,
3. Rodrigues M,
4. Paz D, et al
. Is the omega sign a reliable landmark for the neurosurgical team? An anatomical study about the central sulcus region. Arq Neuropsiqiatr 2015;73:934–38 doi:10.1590/0004-282X20150160 pmid:26517217
CrossRef PubMed
10.↵
2. Sobel DF,
3. Gallen CC,
4. Schwartz BJ, et al
. Locating the central sulcus: comparison of MR anatomic and magnetoencephalographic functional methods. AJNR Am J Neuroradiol 1993;14:915–25 pmid:8352165
Abstract/FREE Full Text
11.↵
2. Yousry TA,
3. Schmid UD,
4. Alkadhi H, et al
. Localization of the motor hand area to a knob on the precentral gyrus. A new landmark. Brain 1997;120(Pt 1):141–57 doi:10.1093/brain/120.1.141 pmid:9055804
Abstract/FREE Full Text
12.↵
2. Yousry TA,
3. Schmid UD,
4. Schmidt D, et al
. The central sulcal vein: a landmark for identification of the central sulcus using functional magnetic resonance imaging. J Neurosurg 1996;85:608–17 doi:10.3171/jns.1996.85.4.0608 pmid:8814164
CrossRef PubMed
13.↵
2. Naidich TP,
3. Valavanis AG,
4. Kubik S
. Anatomic relationships along the low-middle convexity: part I–normal specimens and magnetic resonance imaging. Neurosurgery 1995;36:517–32 doi:10.1227/00006123-199503000-00011 pmid:7753352
CrossRef PubMed
14.↵
2. Hattingen E,
3. Good C,
4. Weidauer S, et al
. Brain surface reformatted images for fast and easy localization of perirolandic lesions. J Neurosurg 2005;102:302–10 doi:10.3171/jns.2005.102.2.0302 pmid:15739559
CrossRef PubMed
15.↵
2. Wagner M,
3. Jurcoane A,
4. Hattingen E
. The U sign: tenth landmark to the central region on brain surface reformatted MR imaging. AJNR Am J Neuroradiol 2013;34:323–26 doi:10.3174/ajnr.A3205 pmid:22821920
Abstract/FREE Full Text
16.↵
2. Biega TJ,
3. Lonser RR,
4. Butman JA
. Differential cortical thickness across the central sulcus: a method for identifying the central sulcus in the presence of mass effect and vasogenic edema. AJNR Am J Neuroradiol 2006;27:1450–53 pmid:16908556
Abstract/FREE Full Text
17.↵
2. Meyer JR,
3. Roychowdhury S,
4. Russell EJ, et al
. Location of the central sulcus via cortical thickness of the precentral and postcentral gyri on MR. AJNR Am J Neuroradiol 1996;17:1699–706 pmid:8896626
Abstract
18.↵
2. Dinse J,
3. Härtwich N,
4. Waehnert MD, et al
. A cytoarchitecture-driven myelin model reveals area-specific signatures in human primary and secondary areas using ultra-high resolution in-vivo brain MRI. Neuroimage 2015;114:71–87 doi:10.1016/j.neuroimage.2015.04.023 pmid:25896931
CrossRef PubMed
19.↵
2. Geyer S,
3. Weiss M,
4. Reimann K, et al
. Microstructural parcellation of the human cerebral cortex - from Brodmann's post-mortem map to in vivo mapping with high-field magnetic resonance imaging. Front Hum Neurosci 2011;5:19 doi:10.3389/fnhum.2011.00019 pmid:21373360
CrossRef PubMed
20.↵
2. Annese J,
3. Pitiot A,
4. Dinov ID, et al
. A myelo-architectonic method for the structural classification of cortical areas. Neuroimage 2004;21:15–26 doi:10.1016/j.neuroimage.2003.08.024 pmid:14741638
CrossRef PubMed
21.↵
2. Nieuwenhuys R,
3. Broere CA,
4. Cerliani L
. A new myeloarchitectonic map of the human neocortex based on data from the Vogt-Vogt school. Brain Struct Funct 2015;220:2551–73 doi:10.1007/s00429-014-0806-9 pmid:24924165
CrossRef PubMed
22.↵
2. Yushkevich PA,
3. Piven J,
4. Hazlett HC, et al
. User-guided 3D active contour segmentation of anatomical structures: significantly improved efficiency and reliability. Neuroimage 2006;31:1116–28 doi:10.1016/j.neuroimage.2006.01.015 pmid:16545965
CrossRef PubMed
23.↵
2. Kakeda S,
3. Korogi Y,
4. Kamada K, et al
. Signal intensity of the motor cortex on phase-weighted imaging at 3T. AJNR Am J Neuroradiol 2008;29:1171–75 doi:10.3174/ajnr.A1002 pmid:18388220
Abstract/FREE Full Text
24.↵
2. Kamada K,
3. Kakeda S,
4. Ohnari N, et al
. Signal intensity of motor and sensory cortices on T2-weighted and FLAIR images: intraindividual comparison of 1.5T and 3T MRI. Eur Radiol 2008;18:2949–55 doi:10.1007/s00330-008-1069-8 pmid:18642001
CrossRef PubMed
25.↵
2. Glasser MF,
3. Coalson TS,
4. Robinson EC, et al
. A multi-modal parcellation of human cerebral cortex. Nature 2016;536:171–78 doi:10.1038/nature18933 pmid:27437579
CrossRef PubMed

Received July 1, 2016.
Accepted after revision September 20, 2016.
